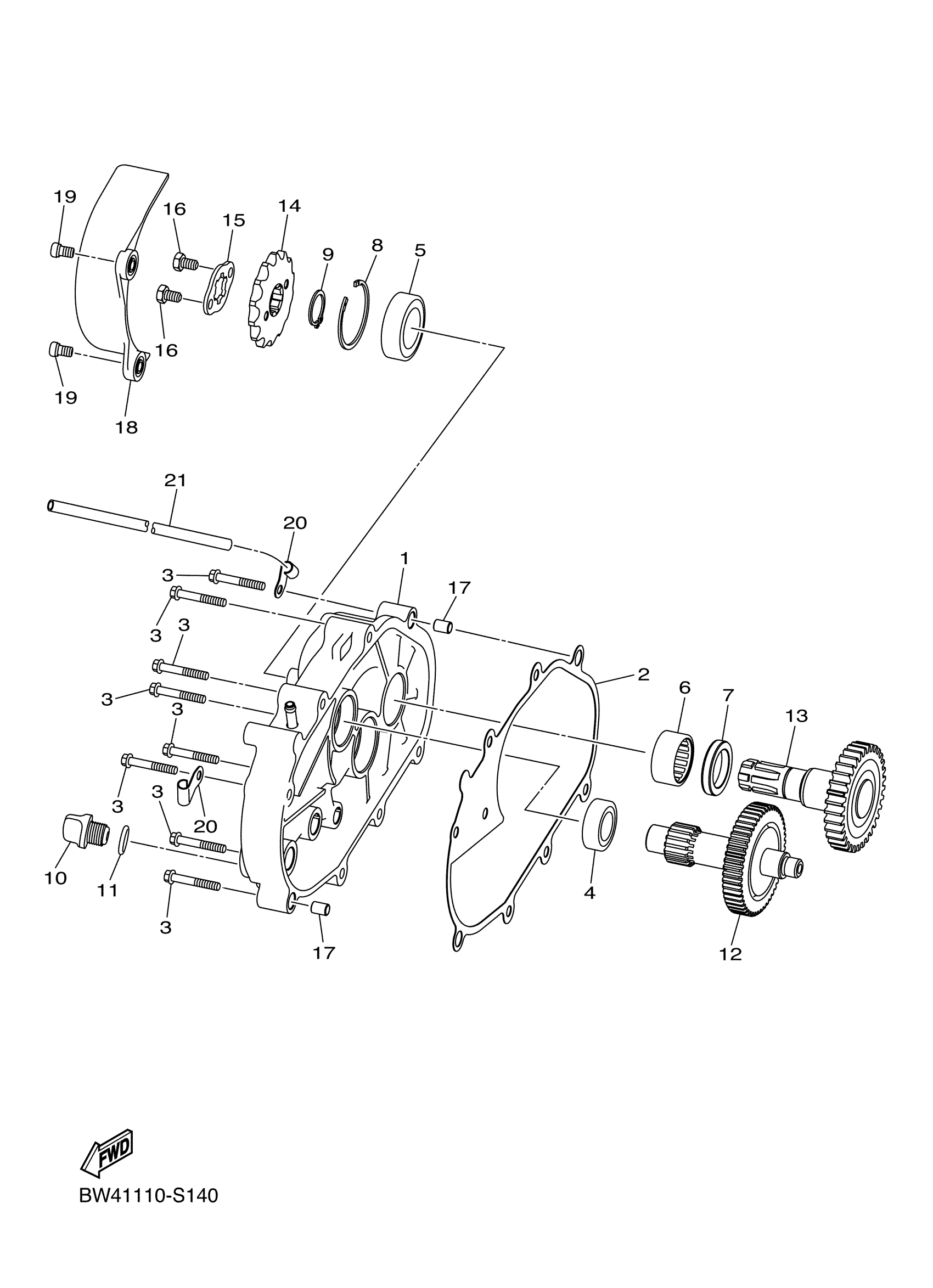

Yamaha YFZ05YYXPW (YFZ50) BW4M0 2023 TRANSMISSION Diagram

#

Description
Price

1

CRANKCASE COVER ASSY 2

BW4-E5420-00-00

Unavailable

2

GASKET, CRANKCASE COVER 2

BD3-E5461-10-00

$22.99

3

BOLT

BD3-G1148-10-00

$3.35

4

BEARING

BD3-E4814-00-00

$34.99

5

BEARING

BD3-E5693-00-00

$62.99

6

BEARING

BD3-E7678-10-00

$88.99

7

RING, SEAL

BD3-E4005-00-00

Unavailable

8

CIRCLIP

BD3-E2842-00-00

$5.60

9

CIRCLIP

BD3-E662A-00-00

$2.17

10

PLUG, OIL

BD3-E5363-00-00

$7.49

11

O-RING

BD3-E4561-00-00

$7.49

12

COUNTER AXLE ASSY

BW4-E7430-00-00

Unavailable

13

DRIVE PINION ASSY

BW4-E7520-00-00

Unavailable

14

SPROCKET, DRIVE

BW4-E7451-00-00

$52.99

15

PLATE

BW4-E7446-00-00

Unavailable

16

BOLT

BD3-G1228-10-00

Unavailable

17

PIN, DOWEL

BD3-E7498-00-00

Unavailable

18

COVER, CHAIN CASE

BD3-E5418-00-00

Unavailable

19

SCREW

BD3-E4429-20-00

Unavailable

20

RETAINER

BD3-E5689-00-00

Unavailable

21

HOSE, BREATHER 1

BD3-E531A-00-00

Unavailable
