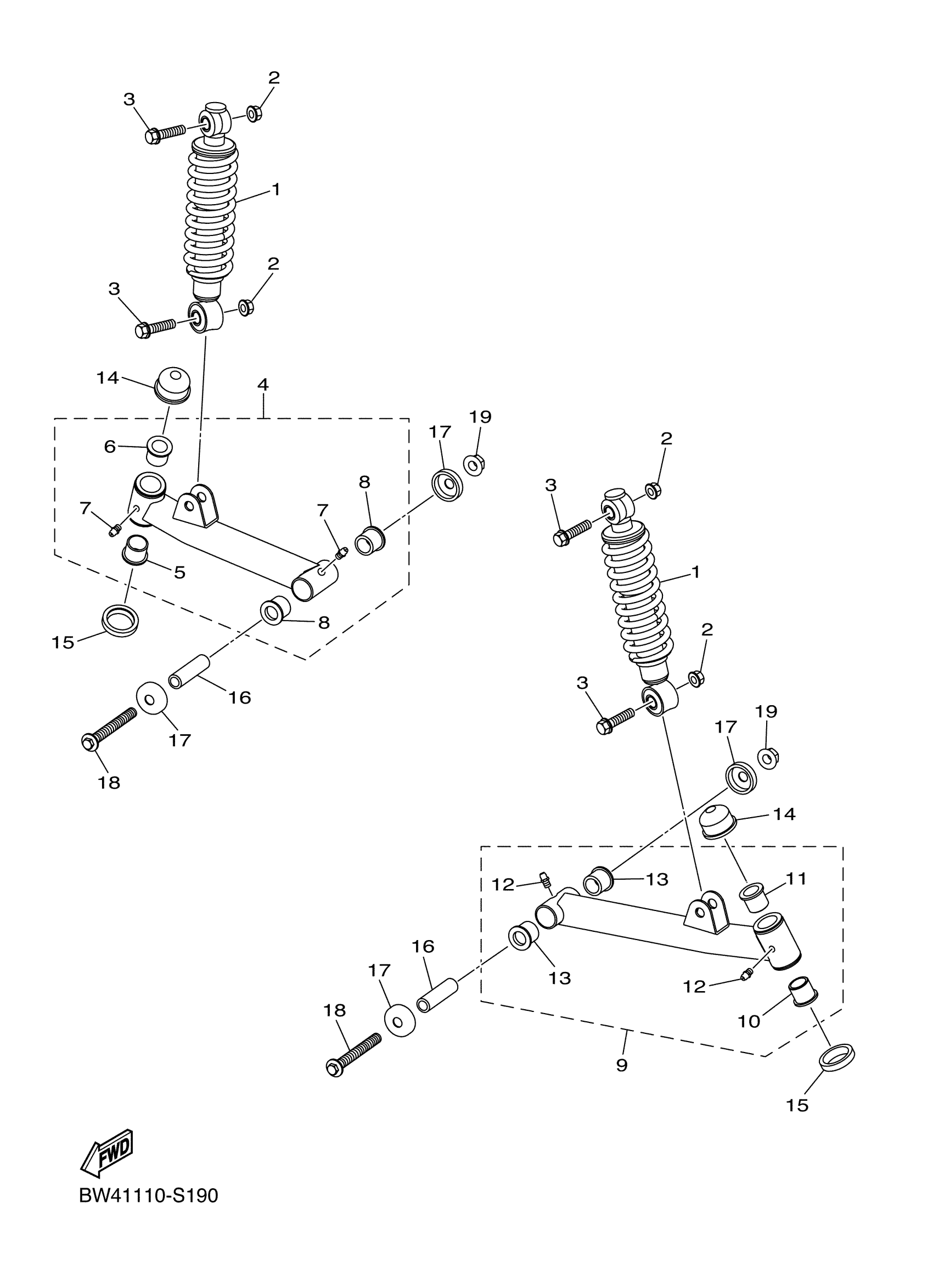

Yamaha YFZ05YYXNW (YFZ50) BW4J0 2022 FRONT SUSPENSION & WHEEL Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY

BW4-F3350-00-00

$200.99

2

NUT 2

BW4-F3834-00-00

$5.60

3

BOLT

BD3-F4834-10-00

$8.49

4

FRONT LOWER ARM COMP. (RIGHT)

BW4-F3580-10-00

Unavailable

5

BUSH 1

BD3-F639L-00-00

$8.49

6

BUSH 2

BD3-F639M-00-00

$5.60

7

NIPPLE

BD3-F135J-10-00

$5.60

8

BUSH

BYS-F3526-00-00

Unavailable

9

FRONT LOWER ARM COMP. (LEFT)

BW4-F3570-10-00

Unavailable

10

BUSH 1

BD3-F639L-00-00

$8.49

11

BUSH 2

BD3-F639M-00-00

$5.60

12

NIPPLE

BD3-F135J-10-00

$5.60

13

BUSH

BYS-F3526-00-00

Unavailable

14

COVER, THRUST 2

BW4-F2129-00-00

$8.49

15

SEAL, DUST 1

BD3-F3527-00-00

$5.60

16

COLLAR 2

BW4-F3364-00-00

Unavailable

17

COVER, THRUST 1

BD3-F3517-00-00

Unavailable

18

BOLT, MAIN STAND

BW4-F7117-00-00

Unavailable

19

NUT 2

BD3-F3834-10-00

Unavailable
