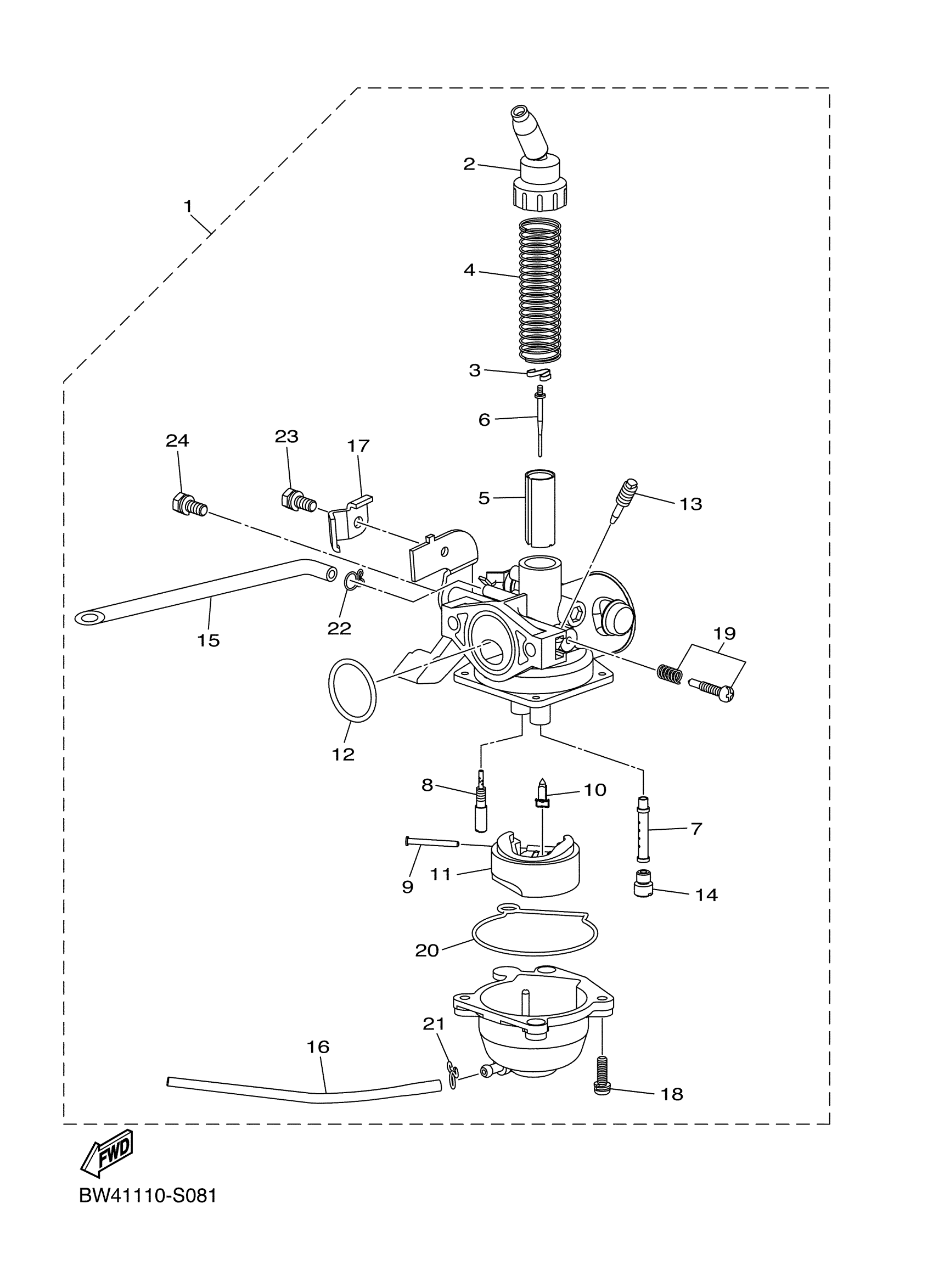

Yamaha YFZ05YYXMW (YFZ50) BW4E1 2021 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

BW4-E4101-20-00

$230.99

2

CAP, MIXING CHAMBER

BW4-E439D-00-00

Unavailable

3

CLIP 1

BW4-E439G-00-00

$9.49

4

SPRING, THROTTLE VALVE

BW4-E4331-00-00

Unavailable

5

VALVE, THROTTLE

BW4-E3731-00-00

Unavailable

6

NEEDLE ASSY

BW4-E4150-00-00

$93.99

7

PIPE, MAIN BLEED

BW4-E414G-00-00

Unavailable

8

JET, PILOT (# 15)

3H1-14142-15-00

Unavailable

9

PIN, FLOAT

BW4-E4386-00-00

Unavailable

10

VALVE, NEEDLE

BW4-E4392-00-00

$144.99

11

FLOAT

BW4-E4385-00-00

$124.99

12

O-RING

BD3-E4397-00-00

$33.99

13

SCREW, AIR ADJUSTING

BW4-E4123-10-00

$20.99

14

JET, MAIN (# 62.5)

18A-1414A-63-00

$14.49

15

PIPE 1

BW4-E4348-00-00

Unavailable

16

PIPE

BW4-E4349-01-00

Unavailable

17

BRACKET

BW4-E4581-00-00

Unavailable

18

. SCREW, PAN HEAD

BD3-E4325-00-00

Unavailable

19

SCREW, ADJUST

BW4-E4521-00-00

Unavailable

20

GASKET, FLOAT CHAMBER

BW4-E4384-00-00

Unavailable

21

CLIP 2

BD3-E439H-10-00

Unavailable

22

CLIP 1

BW4-E449C-00-00

Unavailable

23

SCREW

BW4-E4216-00-00

Unavailable

24

SCREW

BW4-E4592-00-00

Unavailable
