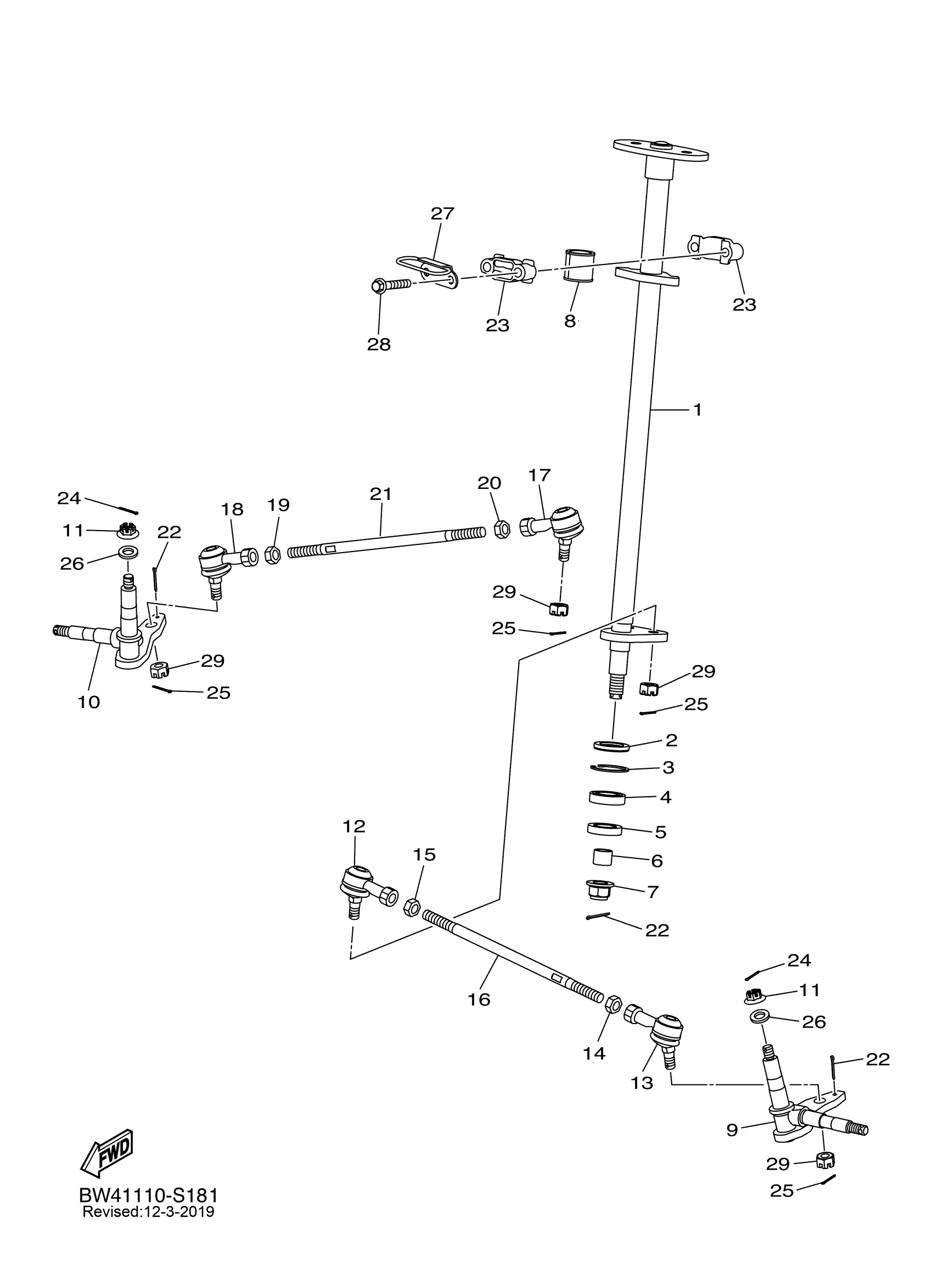

Yamaha YFZ05YYXLW (YFZ50) BW4B1 2020 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

BW4-F3813-00-00

$244.99

2

SEAL

BW4-F3844-00-00

$7.49

3

CLIP, RING

BW4-F384N-00-00

$3.23

4

BEARING, STEERING

BW4-F3812-00-00

Unavailable

5

SEAL 2

BW4-F38B1-00-00

Unavailable

6

SPACER, BEARING

BD3-F5117-10-00

Unavailable

7

NUT 1

BD3-F1535-10-00

$15.99

8

COVER, STEERING

BD3-F3818-00-00

$18.99

9

KNUCKLE, STEERING 1

BW4-F3511-00-00

Unavailable

10

KNUCKLE, STEERING 2

BW4-F3521-00-00

Unavailable

11

NUT

BD3-F3877-10-00

$9.49

12

JOINT, UNIVERSAL 2

BW4-F3845-10-00

$116.99

13

JOINT, UNIVERSAL 1

BW4-F3841-10-00

Unavailable

14

NUT

BD3-F1791-10-00

Unavailable

15

NUT

BD3-F1829-10-00

$4.82

16

ROD, TIE

BW4-F3831-00-00

Unavailable

17

JOINT, UNIVERSAL 2

BW4-F3845-10-00

$116.99

18

JOINT, UNIVERSAL 1

BW4-F3841-10-00

Unavailable

19

NUT

BD3-F1791-10-00

Unavailable

20

NUT

BD3-F1829-10-00

$4.82

21

ROD, TIE

BW4-F3831-00-00

Unavailable

22

PIN

BD3-F112N-10-00

Unavailable

23

HOLDER, BEARING

BD3-F3872-00-00

Unavailable

24

PIN 2

BD3-F146E-10-00

Unavailable

25

PIN

BD3-F4374-10-00

Unavailable

26

WASHER 4

BD3-F2246-00-00

Unavailable

27

BRACKET, STEERING LOWER

BW4-F3868-00-00

Unavailable

28

BOLT 2

BW4-F4177-00-00

Unavailable

29

NUT

BD3-F3856-10-00

Unavailable
