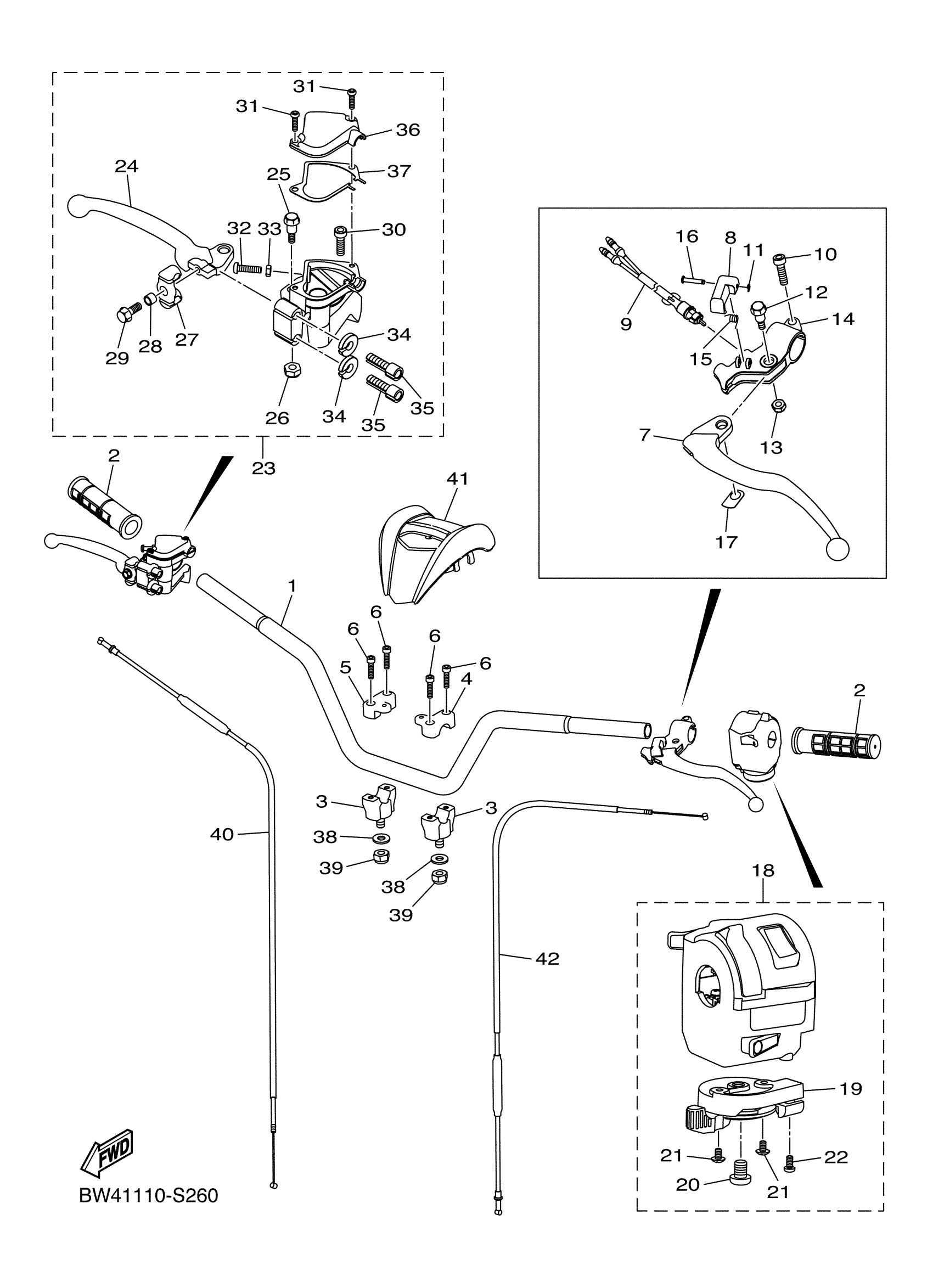

Yamaha YFZ05YYXKW (YFZ50) BW481 2019 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

BW4-F6111-00-00

Unavailable

2

GRIP

BW4-F6241-00-00

$15.99

3

HOLDER, HANDLE LOWER

BD3-F3442-00-00

$57.99

4

HOLDER, HANDLE UPPER

BD3-F3441-00-00

$25.99

5

HOLDER, HANDLE UPPER 1

BD3-F344A-00-00

$26.99

6

BOLT

BD3-F7434-10-00

$3.35

7

LEVER 1

BW4-H3912-00-00

$86.99

8

LEVER, LOCK

BW4-H3965-00-00

$36.99

9

STOP SWITCH ASSY

BW4-H2551-00-00

$49.99

10

BOLT

BD3-F3471-00-00

$4.82

11

RING, SNAP

BD3-F6466-00-00

$3.23

12

BOLT

BD3-F2277-00-00

Unavailable

13

NUT 1

BD3-F3833-00-00

Unavailable

14

HOLDER, LEVER 1

BD3-H2911-10-00

$46.99

15

SPRING, RETURN

BD3-H3966-00-00

$9.49

16

PIN, LOCK 1

BD3-H3967-00-00

Unavailable

17

WASHER

BD3-F3444-00-00

Unavailable

18

SWITCH, HANDLE 2

BW4-H3975-20-00

Unavailable

19

LEVER, STARTER

BD3-H3941-00-00

Unavailable

20

BOLT

BD3-F3753-00-00

Unavailable

21

BOLT

BW4-F1531-00-00

Unavailable

22

BOLT 2

BD3-F1532-00-00

Unavailable

23

THROTTLE LEVER ASSY

BW4-F6250-10-00

Unavailable

24

LEVER 2

BW4-H3922-00-00

Unavailable

25

BOLT

BD3-F1739-00-00

Unavailable

26

NUT 1

BD3-F3833-00-00

Unavailable

27

JOINT, CABLE

BD3-F6347-00-00

Unavailable

28

COLLAR

BD3-F7213-00-00

Unavailable

29

BOLT, AJUSTING

BD3-F6382-00-00

Unavailable

30

BOLT

BD3-F3471-00-00

$4.82

31

SCREW 1

BD3-H1145-00-00

Unavailable

32

BOLT, ADJUSTING

BW4-F6337-10-00

Unavailable

33

NUT

BD3-F3357-00-00

Unavailable

34

NUT

BD3-F1968-00-00

Unavailable

35

BOLT 1

BD3-F3346-00-00

Unavailable

36

CAP, GEAR

BD3-F628F-00-00

Unavailable

37

GASKET

BD3-F628G-00-00

Unavailable

38

WASHER

BW4-F3779-00-00

Unavailable

39

NUT

BD3-F2252-10-00

Unavailable

40

CABLE, THROTTLE 1

BW4-F6311-00-00

Unavailable

41

PROTECTOR, HANDLEBAR

BD3-F6124-10-00

Unavailable

42

CABLE, STARTER 1

BW4-F6331-00-00

Unavailable
