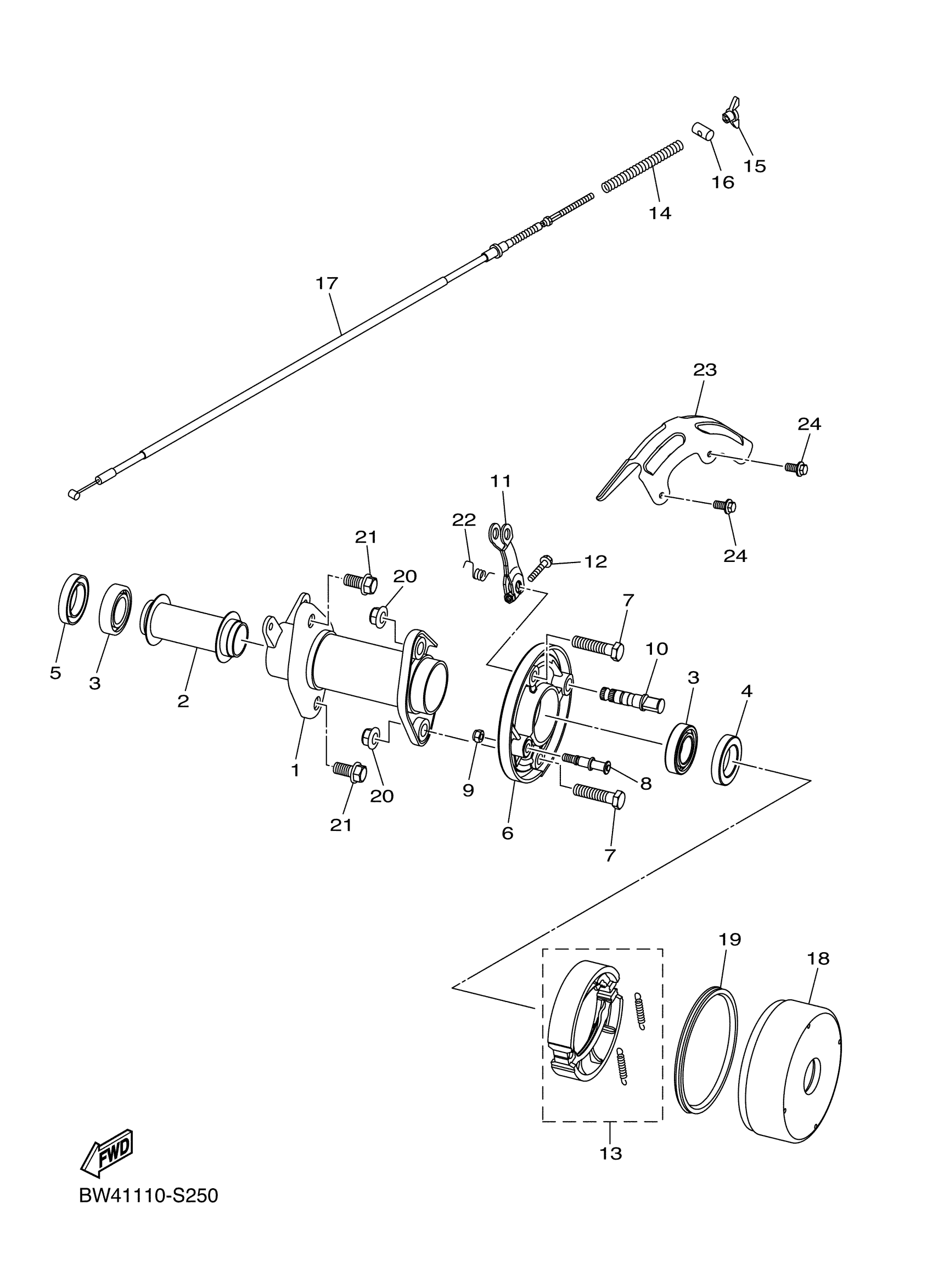

Yamaha YFZ05YYXKW (YFZ50) BW481 2019 REAR BRAKE Diagram

#

Description
Price

1

HUB, REAR

BW4-F5311-00-00

Unavailable

2

SPACER, BEARING

BW4-F5317-00-00

Unavailable

3

BEARING

BD3-F53N4-10-00

Unavailable

4

SEAL, DUST

BD3-F537Y-00-00

$13.99

5

SEAL, HUB DUST

BD3-F5319-00-00

$12.49

6

PLATE, BRAKE SHOE

BD3-F5321-00-00

$124.99

7

BOLT

BD3-F7217-10-00

Unavailable

8

SHAFT

BD3-F518E-10-00

$28.99

9

NUT

BD3-F2143-10-00

Unavailable

10

CAMSHAFT

BW4-F5351-00-00

Unavailable

11

LEVER, CAMSHAFT

BW4-F5355-00-00

Unavailable

12

BOLT

BW4-F3767-00-00

$4.77

13

BRAKE SHOE SET

BD3-F530K-30-00

$57.99

14

SPRING

BW4-F6304-00-00

$7.49

15

NUT, ADJUSTING

BW4-F6343-00-00

Unavailable

16

PIN, CLEVIS

BW4-F7438-00-00

Unavailable

17

CABLE, BRAKE

BW4-F6361-00-00

Unavailable

18

DRUM, BRAKE

BD3-F531E-20-00

Unavailable

19

RING 2

BD3-F5336-00-00

Unavailable

20

NUT

BD3-F4477-10-00

Unavailable

21

BOLT, COWLING

BD3-F8374-10-00

Unavailable

22

SPRING, RETURN

BD3-F5333-10-00

Unavailable

23

CASE, CHAIN 2

BW4-F2312-00-00

Unavailable

24

BOLT, FOOTREST

BW4-F7416-00-00

Unavailable
