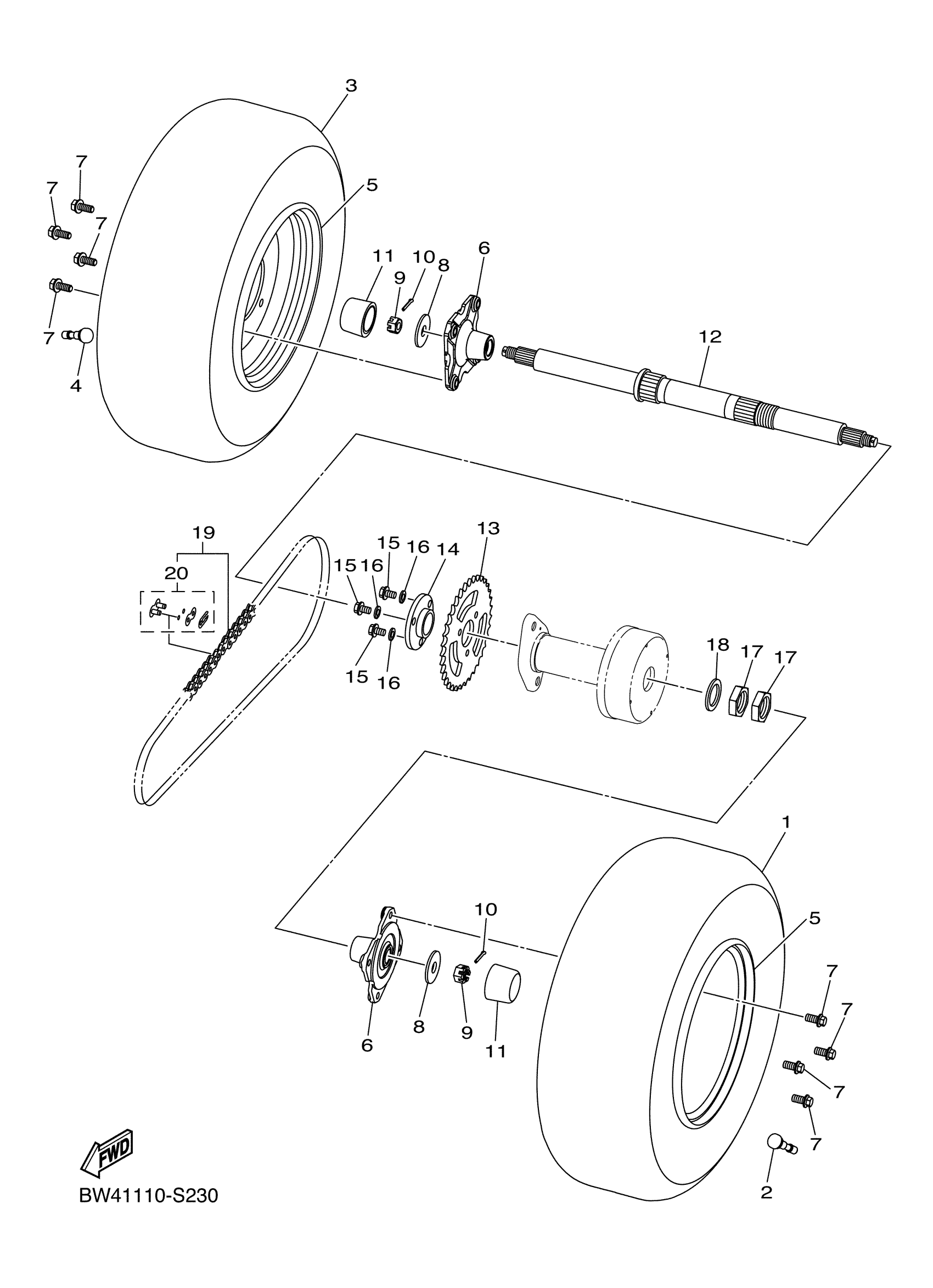

Yamaha YFZ05YYXHL (YFZ50) BW44 2017 REAR AXLE WHEEL Diagram
#
Description
Price
1
TIRE
BW4-F53P3-00-00
Unavailable
3
TIRE
BW4-F53P3-00-00
Unavailable
5
REAR WHEEL COMP.
BW4-F5390-00-00
Unavailable
6
COLLAR, WHEEL
BW4-F5377-00-00
Unavailable
8
WASHER 1
BW4-F2243-00-00
Unavailable
9
NUT, AXLE
BW4-F5382-00-00
Unavailable
12
AXLE, WHEEL
BW4-F5381-00-00
Unavailable
16
WASHER, PLATE
BD3-F2156-10-00
Unavailable
17
NUT
BD3-F1636-10-00
Unavailable
18
WASHER 1
BD3-F3737-00-00
Unavailable
19
CHAIN
BW4-F53C0-10-00
Unavailable
20
JOINT, CHAIN
BW4-E6548-00-00
Unavailable
