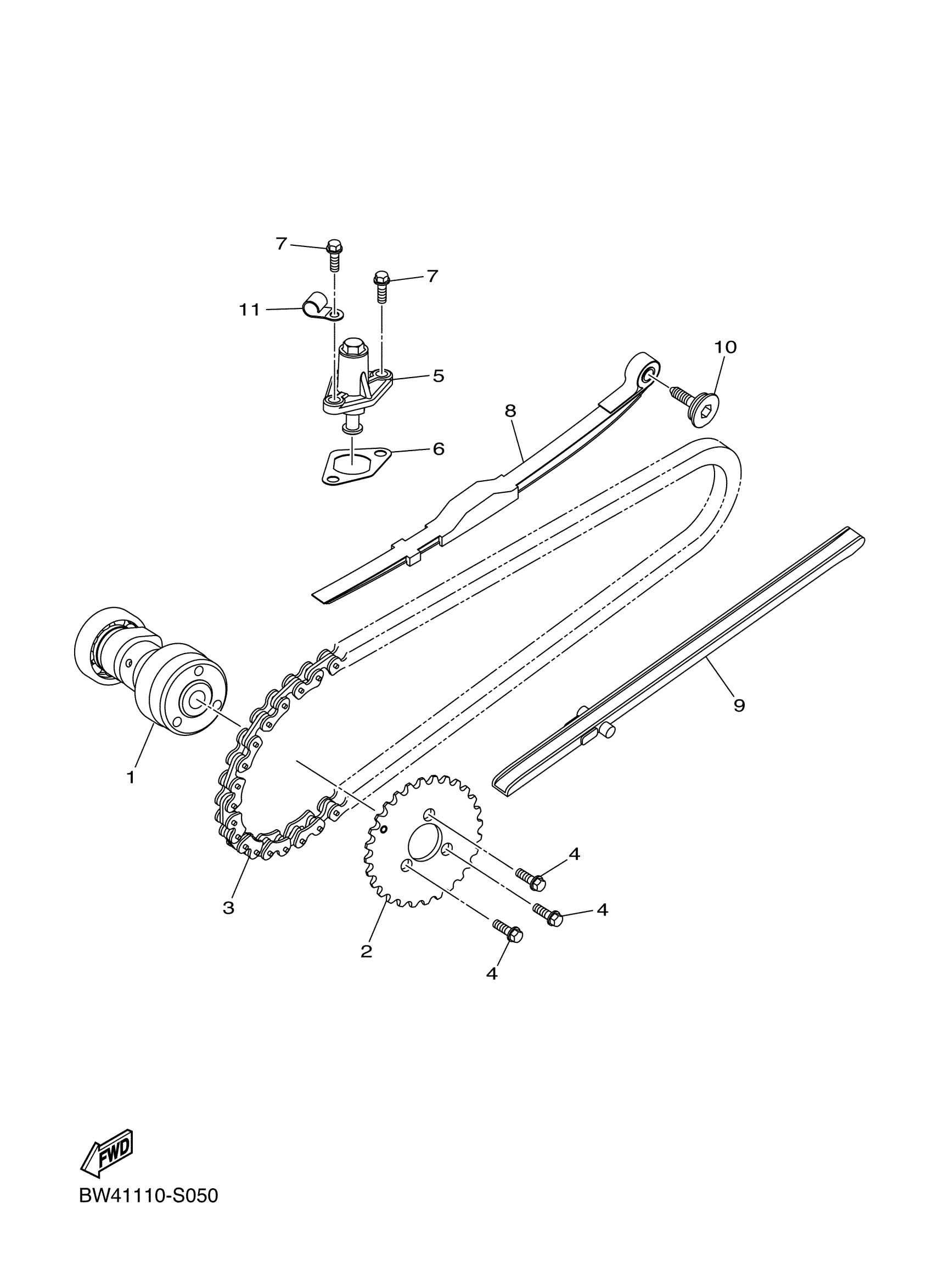

Yamaha YFZ05YYXHL (YFZ50) BW44 2017 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

BD3-E2170-00-00

$100.77

2

SPROCKET, CAM CHAIN

BD3-E2176-00-00

$11.31

3

CHAIN ASSY

BW4-E2190-00-00

$59.44

4

SPROCKET, WHEEL

BD3-E1458-10-00

$3.30

5

TENSIONER ASSY, CAM CHAIN

BD3-E2210-00-00

$78.17

6

GASKET, TENSIONER CASE

BD3-E2213-00-00

Unavailable

7

BOLT

BD3-E2623-10-00

$2.04

8

GUIDE, STOPPER 2

BW4-E2241-00-00

Unavailable

9

GUIDE, STOPPER 1

BW4-E2231-00-00

Unavailable

10

BOLT 2

BD3-E22A1-10-00

Unavailable

11

RETAINER

BD3-E5689-00-00

$6.14
