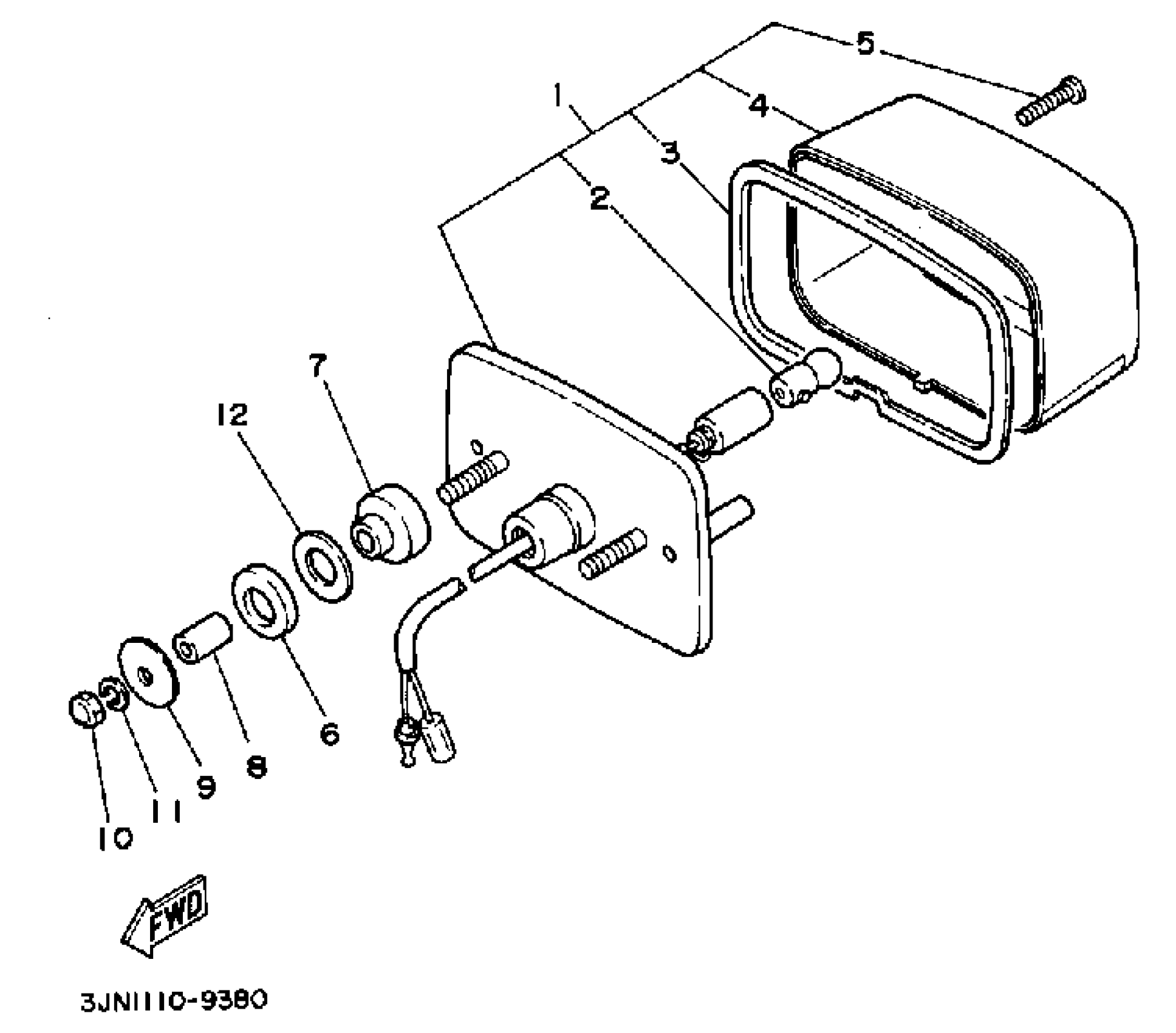

Yamaha YFU1W (PRO-4 PRO HAULER) 1989 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

3GB-84710-00-00

Unavailable

2

BULB (12V-7.5W)

3GD-84714-00-XX

Unavailable

3

GASKET, TAIL LENS

1K8-84523-00-00

Unavailable

4

LENS, TAIL LAMP

1K8-84521-00-00

$18.38

5

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$5.29

6

WASHER, PLATE (462)

90202-14077-00

$3.32

7

GROMMET

90480-10509-00

Unavailable

8

COLLAR 849833160000

90387-06027-00

$5.29

9

WASHER PLATE 248217570000

90201-06074-00

$5.86

10

NUT (J17)

95380-06800-00

$6.28

11

WASHER, SPRING

92995-06100-00

$2.95

12

WASHER, PLATE (3X3)

90201-15797-00

$5.86
