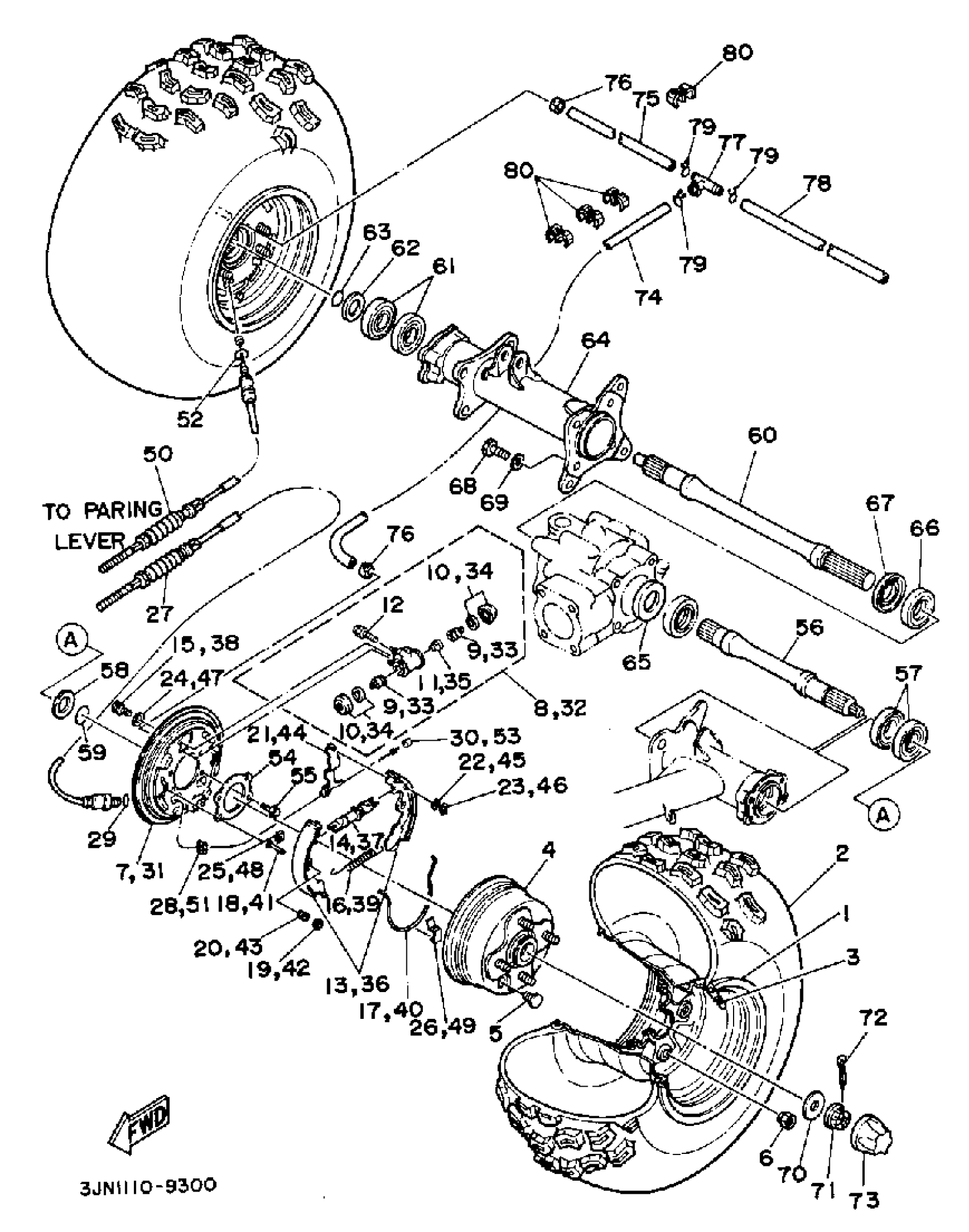

Yamaha YFU1W (PRO-4 PRO HAULER) 1989 REAR WHEEL Diagram
#
1
REAR WHEEL COMP.
3JN-25390-00-35
Unavailable
2
DUN 23X12-9 KT105 (AT23X12-9 KT105 T/L)
94112-097U4-00
Unavailable
4
DRUM BRAKE
3JN-2531E-00-00
Unavailable
5
CAP
2NL-25335-01-00
Unavailable
7
BCKG PLT SUB ASSEMBLY 1ASSEMBLY (L)
3JN-27208-00-00
Unavailable
8
WHEEL CYLINDER 1 (RIGHT)
3JN-25980-00-00
Unavailable
9
. PISTON, CALIPER
2NL-25814-00-00
Unavailable
10
. CUP SET
2NL-W0069-00-00
Unavailable
11
. SPRING
2NL-25977-00-00
Unavailable
12
. BLEED SCREW KIT
2NL-W0048-00-00
Unavailable
13
BRAKE SHOE KIT
3JN-W253E-00-00
Unavailable
14
ADJUSTER ASSY
3JN-27260-00-00
Unavailable
15
INACTIVE PART NUMBER
2NL-25373-00-00
Unavailable
16
SPRING, RETURN
2NL-25333-00-00
Unavailable
17
SPRING, LEVER RETURN
3JN-25357-00-00
Unavailable
18
PIN, SHOE HOLD DN
2NL-27282-00-00
Unavailable
19
CUP, SHOE HOLD DN
2NL-27283-00-00
Unavailable
20
SPRING, SHOE CLAMP
2NL-27281-00-00
Unavailable
21
LEVER ASSEMBLY
2NL-27204-00-00
Unavailable
22
WASHER
2NL-27219-00-00
Unavailable
23
RETAINER
2NL-2536A-00-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
CLIP
2NL-2539E-00-00
Unavailable
26
CLIP, SPRING
2NL-2536E-00-00
Unavailable
27
CABLE,BRAKE
3JN-26351-00-00
Unavailable
28
NUT, SELF-LOCKING
90185-08169-00
Unavailable
29
O-RING (4G0)
93210-11453-00
Unavailable
30
END, WIRE 1
2NL-2636A-00-00
Unavailable
31
BCKG PLT SUB ASY 2
3JN-27209-00-00
Unavailable
32
WHEEL CYLINDER 1 (RIGHT)
3JN-25980-00-00
Unavailable
33
. PISTON, CALIPER
2NL-25814-00-00
Unavailable
34
. CUP SET
2NL-W0069-00-00
Unavailable
35
. SPRING
2NL-25977-00-00
Unavailable
36
BRAKE SHOE KIT
3JN-W253E-00-00
Unavailable
37
ADJUSTER ASSEMBLY
3JN-27270-00-00
Unavailable
38
INACTIVE PART NUMBER
2NL-25373-00-00
Unavailable
39
SPRING, RETURN
2NL-25333-00-00
Unavailable
40
SPRING, LEVER RETURN
3JN-25357-00-00
Unavailable
41
PIN, SHOE HOLD DN
2NL-27282-00-00
Unavailable
42
CUP, SHOE HOLD DN
2NL-27283-00-00
Unavailable
43
SPRING, SHOE CLAMP
2NL-27281-00-00
Unavailable
44
LEVER ASSEMBLY 2
2NL-27205-00-00
Unavailable
45
WASHER
2NL-27219-00-00
Unavailable
46
RETAINER
2NL-2536A-00-00
Unavailable
47
WASHER, SPRING
92995-06100-00
Unavailable
48
CLIP
2NL-2539E-00-00
Unavailable
49
CLIP, SPRING
2NL-2536E-00-00
Unavailable
50
CABLE, BRAKE
3JN-26341-00-00
Unavailable
51
NUT, SELF-LOCKING
90185-08169-00
Unavailable
52
O-RING (4G0)
93210-11453-00
Unavailable
53
END, WIRE 1
2NL-2636A-00-00
Unavailable
54
RETAINER
2NL-46513-00-00
Unavailable
55
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
56
SHAFT, REAR AXLE 1
3JN-46511-00-00
Unavailable
57
BEARING(3JN)
93306-20531-00
Unavailable
58
COLLAR(2NL)
90387-284T0-00
Unavailable
59
O-RING(22F)
93210-26662-00
Unavailable
60
SHAFT, REAR AXLE 2
3JN-46512-00-00
Unavailable
61
BEARING(3JN)
93306-20531-00
Unavailable
62
COLLAR(2NL)
90387-284T0-00
Unavailable
63
O-RING(22F)
93210-26662-00
Unavailable
64
R.AXLE HOUSING 2COMP. 2
3JN-46550-00-00
Unavailable
65
OIL SEAL (4H7)
93101-35097-00
Unavailable
66
OIL SEAL, SWO-TYPE
93110-33022-00
Unavailable
67
COVER, HUB DUST
3JN-25367-00-00
Unavailable
68
BOLT (8J7)
97013-10030-00
Unavailable
69
WASHER (7A9)
90201-100F7-00
Unavailable
70
WASHER, PLATE(2HR)
90201-162L6-00
Unavailable
71
NUT, CASTLE
90171-16001-00
Unavailable
72
PIN, COTTER
91490-30030-00
Unavailable
73
CAP, WHEEL
52H-2512A-00-00
Unavailable
74
HOSE (L1050)
90445-072G8-00
Unavailable
75
HOSE (L1050)
90445-072G8-00
Unavailable
76
CLIP(42X)
90467-07093-00
Unavailable
77
WAY 3(33M)
90413-05014-00
Unavailable
78
HOSE
(90445-07664-00)
Unavailable
79
CLIP (16G)
90467-08021-00
Unavailable
80
CLIP
90468-05188-00
Unavailable
