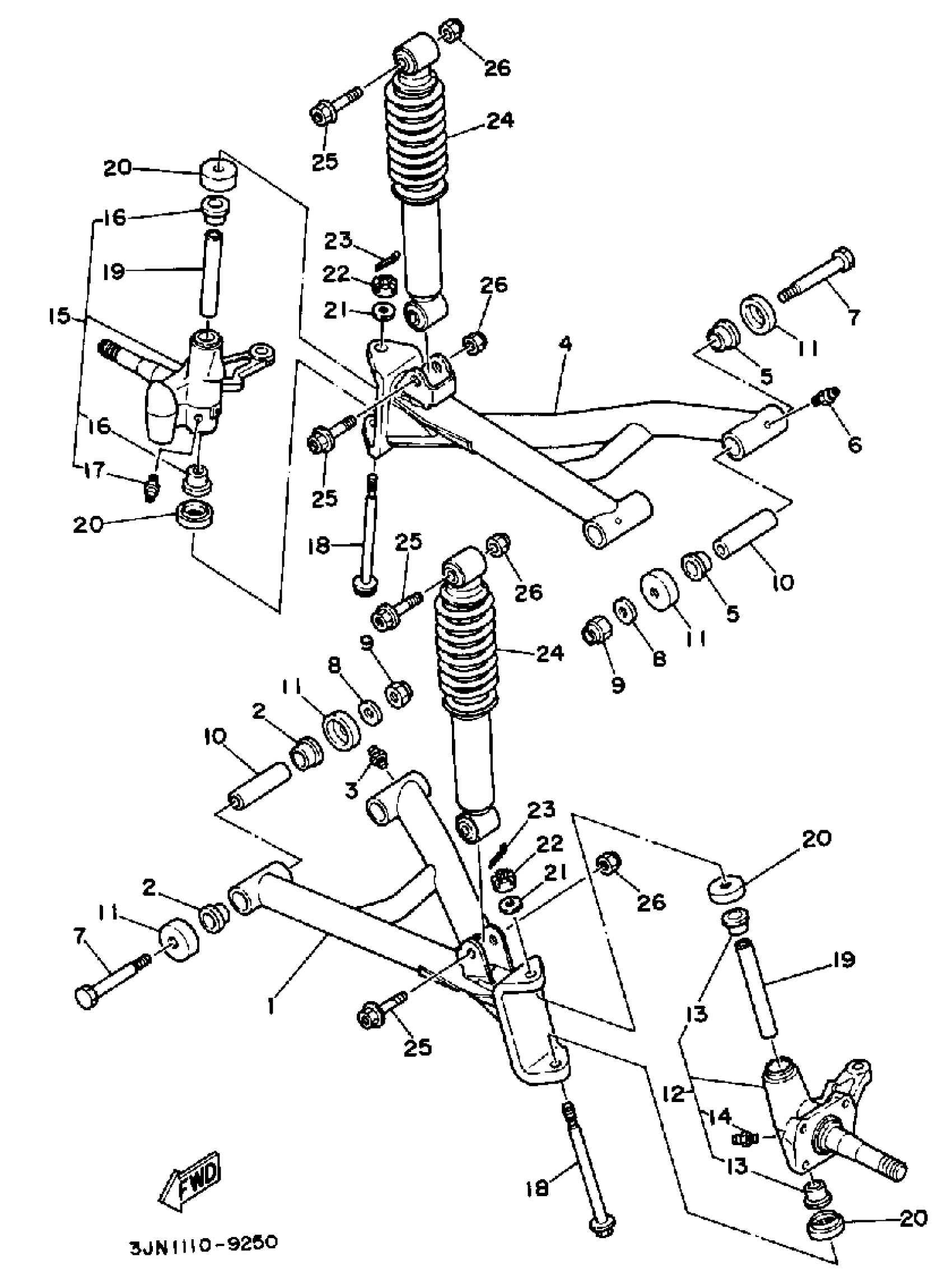

Yamaha YFU1W (PRO-4 PRO HAULER) 1989 FRONT SUSPENSION Diagram
#
Description
Price
1
FRT LWR ARM CMPL LCOMP. (LEFT)
3JN-23570-00-00
Unavailable
2
BUSH, SOLID
90381-18066-00
Unavailable
3
NIPPLE, GREASE
93700-06M03-00
Unavailable
4
FRT LWR ARM CMPL RCOMP. (RIGHT)
3JN-23580-00-00
Unavailable
5
BUSH, SOLID
90381-18066-00
Unavailable
6
NIPPLE, GREASE
93700-06M03-00
Unavailable
7
BOLT
90101-10656-00
Unavailable
12
KNUCKLE,STEERING 1
3GH-23510-01-00
Unavailable
14
NIPPLE, GREASE
93700-06M03-00
Unavailable
15
STEERING KNUCKLE COMP. (RIGHT)
3GH-23520-01-00
Unavailable
17
NIPPLE, GREASE
93700-06M03-00
Unavailable
18
BOLT, WASHER BASED(59V)
90105-10389-00
Unavailable
19
SPACER
2NL-23448-00-00
Unavailable
20
COVER, THRUST 1
3JN-23517-00-00
Unavailable
21
WASHER, PLATE (3L6)
90201-10774-00
Unavailable
22
NUT 3532518200
90171-10004-00
Unavailable
23
PIN, COTTER
91490-20025-00
Unavailable
24
SHOCK ABSORBER ASSEMBLYASSY
3JN-23350-00-33
Unavailable
25
BOLT, WASHER BASED(59V)
90105-10388-00
Unavailable
