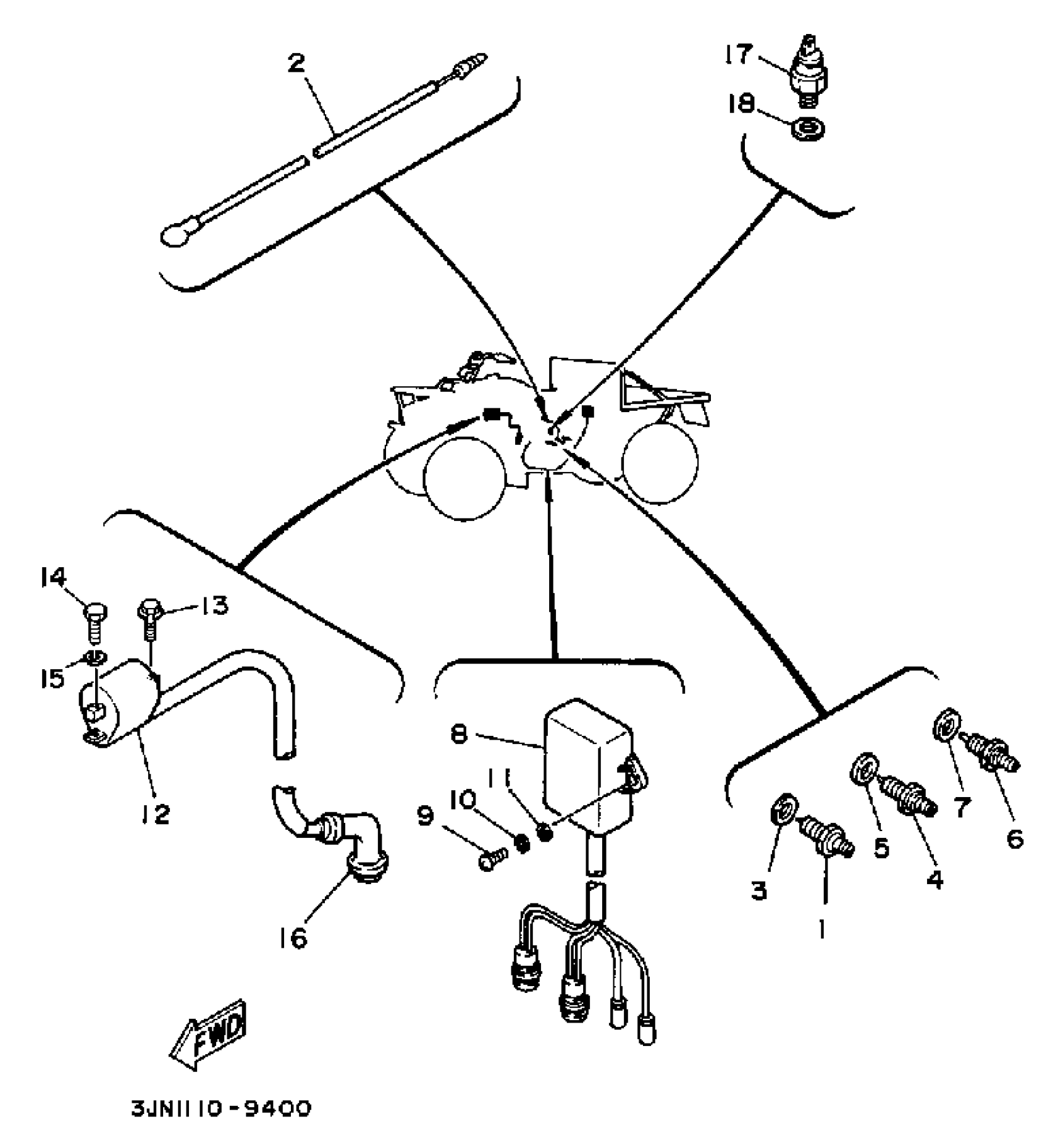

Yamaha YFU1W (PRO-4 PRO HAULER) 1989 ELECTRICAL 1 Diagram

#

Description
Price

1

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

2

WIRE, LEAD

2JX-82541-00-00

Unavailable

3

GASKET (5R6)

90430-10171-00

$3.18

4

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

5

GASKET (5R6)

90430-10171-00

$3.18

6

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

7

GASKET (5R6)

90430-10171-00

$3.18

8

CDI UNIT ASSEMBLY

3JN-85540-00-00

Unavailable

9

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

10

WASHER, SPRING

92907-06100-00

$4.25

11

WASHER(6TA)

92907-06600-00

$2.72

12

IGNITION COIL ASSY

3GD-82310-10-00

$153.99

13

BOLT (21V)

90109-06723-00

$8.49

14

BOLT, HEXAGON

97017-06020-00

$4.06

15

WASHER, SPRING

92995-06100-00

Unavailable

16

PLUG CAP ASSY

3NS-82370-00-00

Unavailable

17

THERMO SWITCH ASSY

2HT-82560-10-00

Unavailable

18

WASHER, PLATE 3412175700

90201-12172-00

Unavailable
