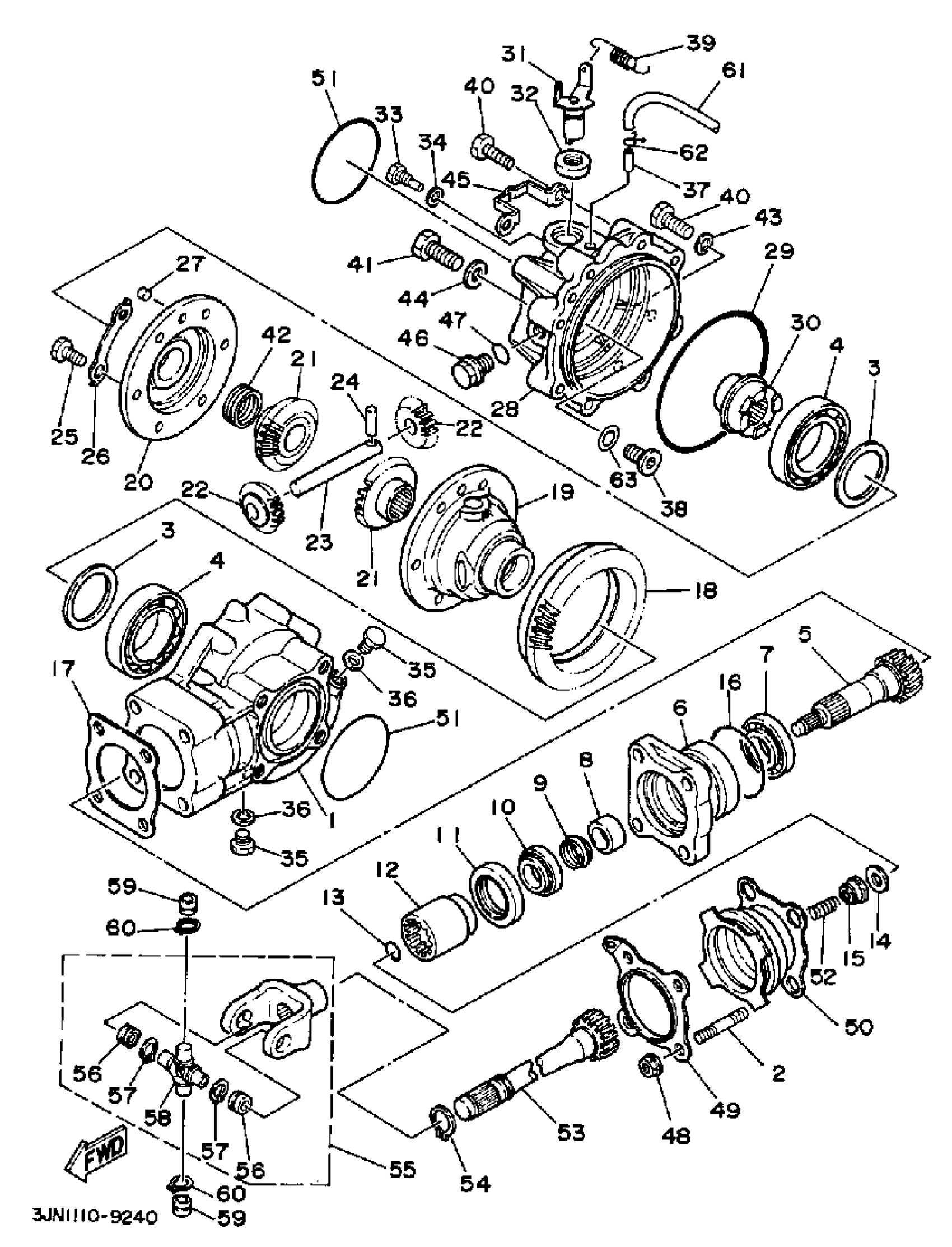

Yamaha YFU1W (PRO-4 PRO HAULER) 1989 DRIVE SHAFT Diagram
#
1
HOUSING, DR SHAFTSHAFT
3JN-46151-00-00
Unavailable
2
BOLT, STUD(3JN)
95911-10645-00
Unavailable
3
SHIM, THRUST
3JN-17537-00-00
Unavailable
3
SHIM, THRUST (T50.15)
3JN-17537-10-00
Unavailable
3
SHIM, THRUST
3JN-17537-20-00
Unavailable
3
SHIM, THRUST
3JN-17537-30-00
Unavailable
3
SHIM, THRUST
3JN-17537-40-00
Unavailable
3
SHIM, THRUST
3JN-17537-50-00
Unavailable
4
BEARING
93306-01101-00
Unavailable
5
GEAR, DRIVE PINION
3JN-46121-00-00
Unavailable
6
HOUSING, PINION BRNBEARING
3JN-46144-00-00
Unavailable
7
BEARING(2HR)
93332-00066-00
Unavailable
8
COLLAR
90387-257R3-00
Unavailable
9
SPACER, EXPANSION
2H7-17571-01-00
Unavailable
10
BRG,TAPERED ROLLER 52MM KY
93332-00024-00
Unavailable
11
OIL SEAL (21V)
93102-46274-00
Unavailable
12
COUPLING, GEAR
3JN-46123-00-00
Unavailable
13
O-RING (2H7)
93210-14359-00
Unavailable
14
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
15
NUT(2HR)
90179-14541-00
Unavailable
16
O-RING
93210-626A7-00
Unavailable
17
SHIM, DRIVE PISTON (T50.25)
3JN-46127-00-00
Unavailable
17
SHIM, DRIVE PISTON (T50.30)
3JN-46127-10-00
Unavailable
17
SHIM, DRIVE PISTON (T50.35)
3JN-46127-20-00
Unavailable
17
SHIM, DRIVE PISTON (T50.40)
3JN-46127-30-00
Unavailable
17
SHIM, DRIVE PISTON (T50.45)
3JN-46127-40-00
Unavailable
17
SHIM, DRIVE PISTON (T50.50)
3JN-46127-50-00
Unavailable
18
GEAR, RING
3JN-46111-00-00
Unavailable
19
CASE, DIFFERENTIAL
3JN-46411-00-00
Unavailable
20
CASE, DIFFERENTIAL
3JN-46412-00-00
Unavailable
21
GEAR, DIFF SIDESIDE
2NL-46414-00-00
Unavailable
22
PINION, DIFF
2NL-46415-00-00
Unavailable
23
PIN, DIFFERENTIAL
2NL-46417-00-00
Unavailable
24
PIN, SPRING
91609-40028-00
Unavailable
25
BOLT(8BT)
97017-10020-00
Unavailable
26
WASHER, PLATE
3JN-22156-00-00
Unavailable
27
PIN, DOWEL (5J3)
93610-10174-00
Unavailable
28
HOUSING, BEARING
3JN-46152-00-00
Unavailable
29
O-RING(59V)
93211-54698-00
Unavailable
30
LOCK, DIFFERENTIAL
3JN-46423-00-00
Unavailable
31
CAM, DIFF. LOCKLOCK
3JN-46424-00-00
Unavailable
32
OIL SEAL (22U)
93102-18278-00
Unavailable
33
BOLT
90109-063F0-00
Unavailable
34
GASKET 256113960000
90430-06014-00
Unavailable
35
PLUG, STRAIGHT(2E9)
90340-14029-00
Unavailable
36
GASKET
214-11198-01-00
Unavailable
37
. CONNECTOR, SUCTION PIPE
137-13115-01-00
Unavailable
38
STOPPER, RING GEAR
(3JN-46156-00-00)
Unavailable
39
SPRING, TENSION(3JN)
90506-12441-00
Unavailable
40
BOLT, HEXAGON
97013-08050-00
Unavailable
41
BOLT(2NL)
97021-10070-00
Unavailable
42
SPRING, COMPRESSION
90501-186E7-00
Unavailable
43
WASHER (1T1)
90201-08649-00
Unavailable
44
WASHER (7A9)
90201-100F7-00
Unavailable
45
PLATE, COVER
3JN-46114-00-00
Unavailable
46
BOLT (59W)
90109-127A3-00
Unavailable
47
GASKET
812-11198-00-00
Unavailable
48
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
49
BAR, COMPRESSION
3JN-22177-00-00
Unavailable
50
SUPPORT, BOOT
3JN-2216G-00-00
Unavailable
51
O-RING (6E5)
93210-74M35-00
Unavailable
52
SPRING, COMPRESSION (2H7)
90501-16491-00
Unavailable
53
SHAFT, DRIVE
3JN-46172-00-00
Unavailable
54
CIRCLIP (537)
93410-22039-00
Unavailable
55
CROSS JOINT COMP.
1YW-46180-02-00
Unavailable
56
BEARING
93399-99952-00
Unavailable
57
CIRCLIP(3JN)
93440-23165-00
Unavailable
58
SPIDER
2HR-46187-00-00
Unavailable
59
BEARING
93399-99952-00
Unavailable
60
CIRCLIP(3JN)
93440-23165-00
Unavailable
61
HOSE (L1700)
90445-070G6-00
Unavailable
62
CLIP (16G)
90467-08021-00
Unavailable
63
SHIM, STOPPER
1FK-46157-00-15
Unavailable
63
. SHIM, STOPPER (T=020)
1FK-46157-00-20
Unavailable
63
SHIM, STOPPER (T=0.30)
1FK-46157-00-30
Unavailable
63
SHIM,STOPPER
1FK-46157-00-40
Unavailable
