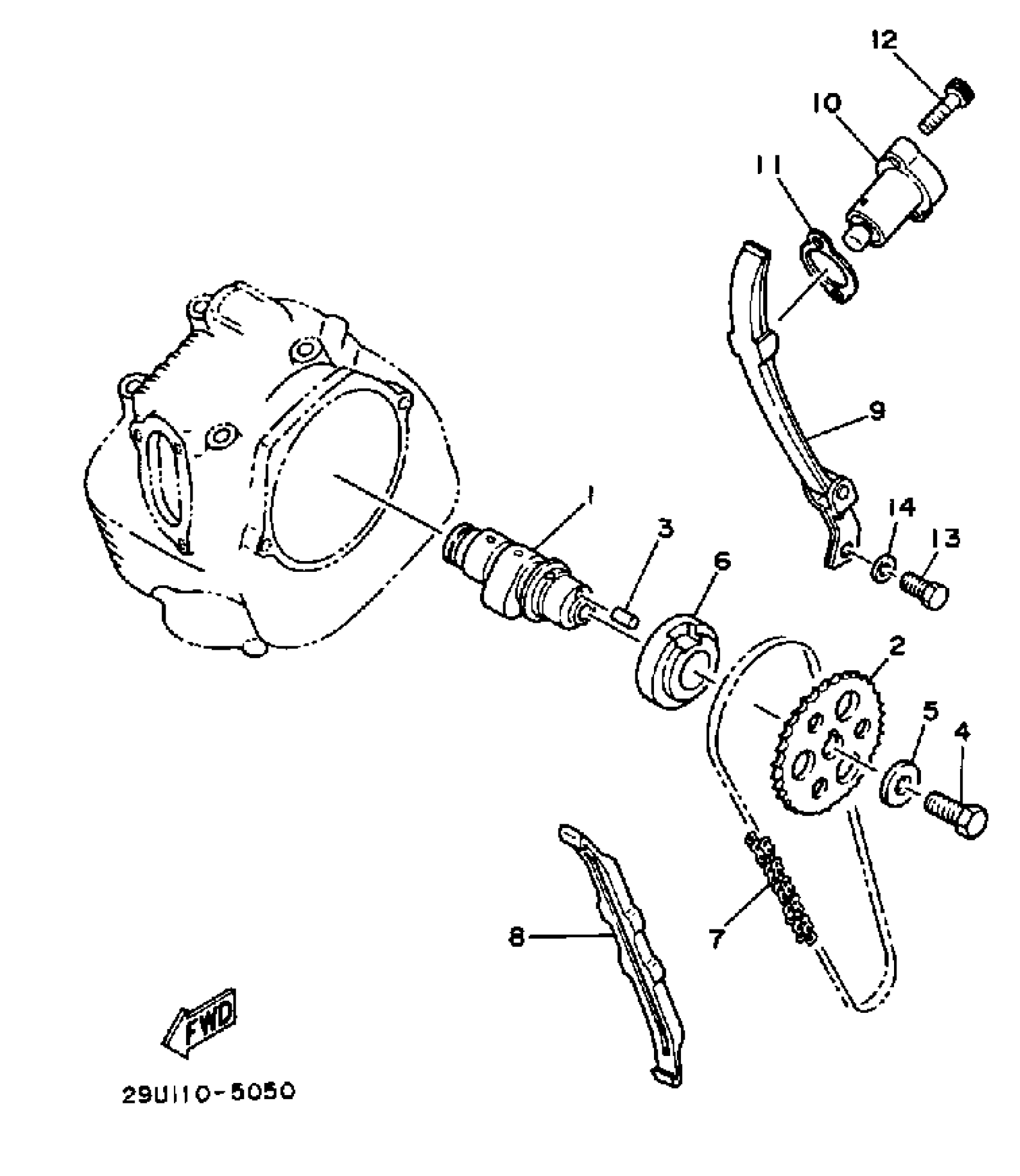

Yamaha YFU1W (PRO-4 PRO HAULER) 1989 CAMSHAFT - CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

5N0-12171-11-00

Unavailable

2

SPROCKET, CAM CHAIN

5H0-12176-00-00

$21.75

3

PIN,DOWEL (603)

93604-10011-00

$4.89

4

BOLT (583)

90101-10303-00

$5.81

5

WASHER, PLATE (3L6)

90201-10774-00

$5.81

6

COLLAR(2HT)

90387-251T0-00

$28.15

7

CHAIN, CAM SHAFT (5N0)

94580-41104-00

$60.75

8

GUIDE, STOPPER 1

5H0-12231-01-00

Unavailable

9

GUIDE, STOPPER 2

5N0-12241-01-00

$48.47

10

TENSIONER ASSY, CAM CHAIN

3GC-12210-10-00

$93.36

11

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

12

BOLT, FLANGE(4KG)

95024-06025-00

$2.45

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

14

WASHER, PLAIN (646)

92990-06600-00

$1.84
