Description

Price

1

REAR ARM

3JN-22110-00-33

Unavailable

2

. BEARING, TAPRD #32

93332-00027-00

Unavailable

3

OIL SEAL, SD-TYPE

93102-40080-00

Unavailable

4

OIL SEAL (4H7)

93101-35097-00

$22.99

5

OIL SEAL, SWO-TYPE

93110-33022-00

Unavailable

6

COVER, HUB DUST

3JN-25367-00-00

Unavailable

7

COLLAR(3JN)

90387-255V2-00

Unavailable

8

BUSH

3JN-22184-00-00

Unavailable

9

SHAFT, PIVOT

3JN-22141-00-00

Unavailable

10

O-RING

93210-22298-00

$7.49

11

NUT

90170-33011-00

$18.99

12

CLAMP, HOSE(1YW)

90460-99289-00

$16.99

13

BOLT, WASHER BASED

90105-12576-00

Unavailable

14

NUT, SELF-LOCKING(1KH)

90185-12134-00

$12.49

15

BOLT (8J7)

97013-10030-00

$10.49

16

WASHER (7A9)

90201-100F7-00

Unavailable

17

COVER

3JN-2219X-00-00

Unavailable

18

UNAVAILABLE IN PRICE BOOK

91001-08012-00

Unavailable

19

STOPPER, MAIN STAND

116-27114-00-00

Unavailable

20

CLAMP, HOSE

90460-80229-00

Unavailable

21

SHK/ABS ASSEMBLY, REARASSEMBLY, REAR

3JN-22210-00-33

Unavailable

22

BOLT, WASHER BASED(1KT)

90105-10402-00

Unavailable

23

NUT, U

95617-10100-00

Unavailable

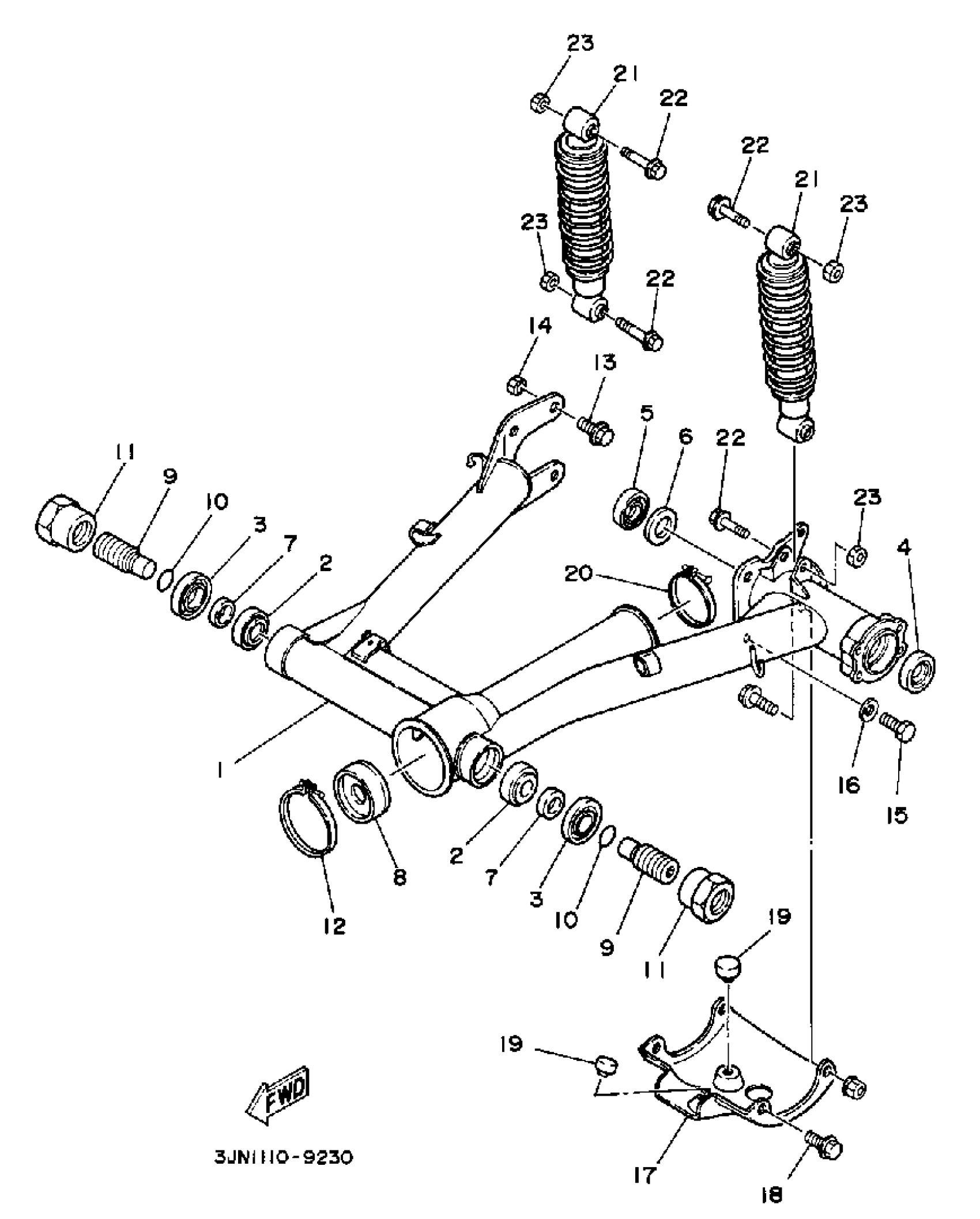

Yamaha YFU1TW (PRO-4 PRO HAULER W-TURF TIRES) 1989 SWING ARM - REAR SHOCKS Diagram

REAR ARM

. BEARING, TAPRD #32

OIL SEAL, SD-TYPE

OIL SEAL (4H7)

OIL SEAL, SWO-TYPE

COVER, HUB DUST

COLLAR(3JN)

BUSH

SHAFT, PIVOT

O-RING

NUT

CLAMP, HOSE(1YW)

BOLT, WASHER BASED

NUT, SELF-LOCKING(1KH)

BOLT (8J7)

WASHER (7A9)

COVER

UNAVAILABLE IN PRICE BOOK

STOPPER, MAIN STAND

CLAMP, HOSE

SHK/ABS ASSEMBLY, REARASSEMBLY, REAR

BOLT, WASHER BASED(1KT)

NUT, U
