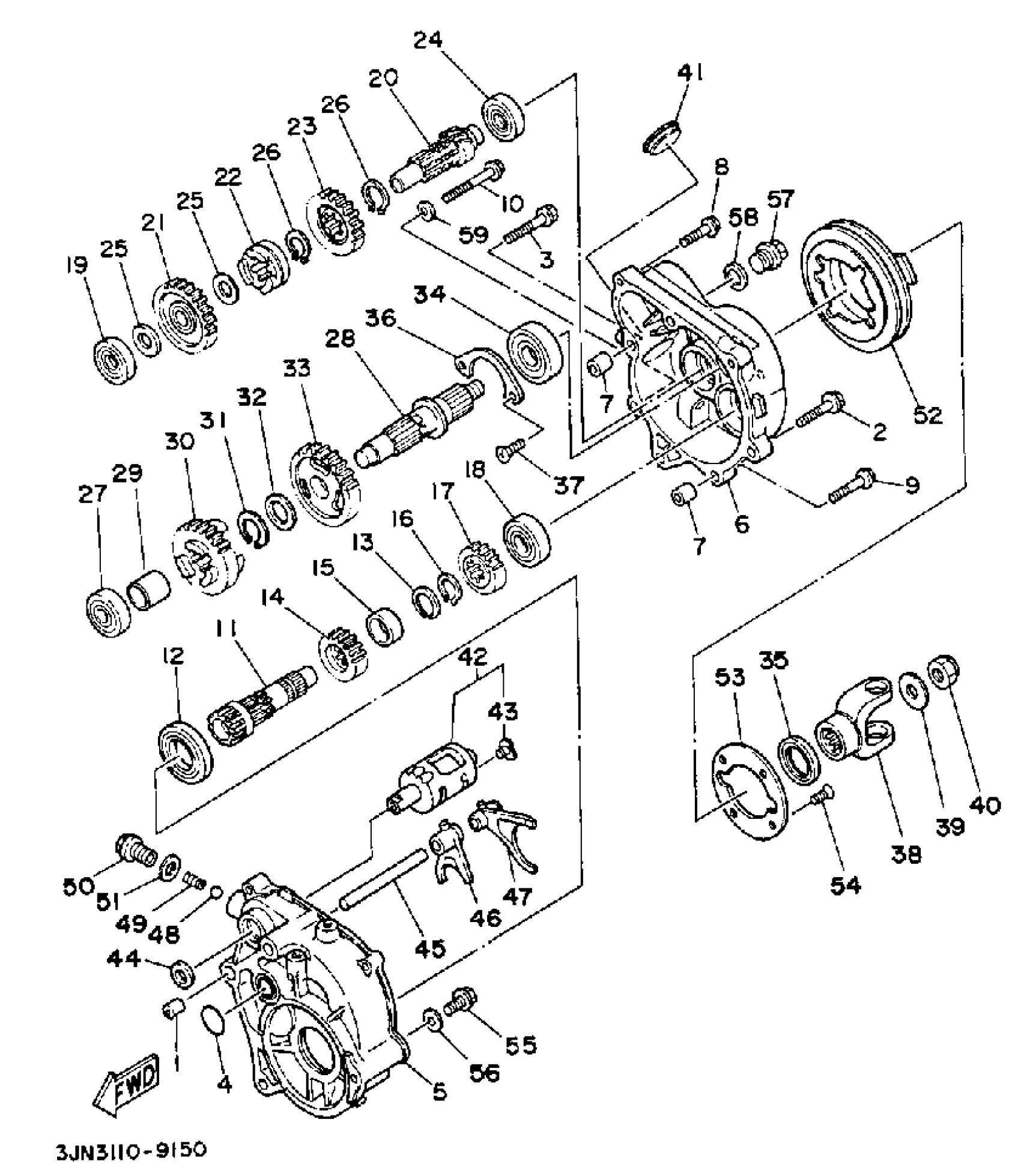

Yamaha YFU1TW (PRO-4 PRO HAULER W-TURF TIRES) 1989 SUB TRANSMISSION Diagram
#
5
CASE, TRANSMISSION
3GH-17911-00-00
Unavailable
6
CASE, TRANSMISSION
3GH-17912-01-00
Unavailable
11
AXLE, DRIVE GEAR
(3GH-17861-00-00)
Unavailable
12
BEARING
93306-90702-00
Unavailable
14
GEAR, REV. PINION 1 (15T)
3GH-17143-01-00
Unavailable
15
COLLAR
90387-254W6-00
Unavailable
16
CIRCLIP(52H)
93410-20070-00
Unavailable
17
GEAR, LOW PINION
3GH-17133-00-00
Unavailable
18
BRG,R-B 6303 47MM 115G NK
93306-30302-00
Unavailable
19
BEARING(37F)
93306-20335-00
Unavailable
20
AXLE, COUNTER
3JN-17431-00-00
Unavailable
21
GEAR, REV. WHEEL 1
3GH-17243-00-00
Unavailable
22
CLUTCH, DOG
(3GH-17285-00-00)
Unavailable
23
GEAR, REV. PINION 2
3GH-17153-00-00
Unavailable
24
BEARING(37F)
93306-20335-00
Unavailable
25
WASHER, PLATE
90201-174E3-00
Unavailable
26
CIRCLIP (537)
93410-22039-00
Unavailable
27
BEARING(37F)
93306-20335-00
Unavailable
28
SHAFT
3JN-17523-00-00
Unavailable
29
COLLAR (3JN)
90387-204W5-00
Unavailable
30
GEAR, REV. WHEEL 2
3GH-17253-00-00
Unavailable
32
WASHER (3J3)
90209-22191-00
Unavailable
33
GEAR, LOW WHEEL
3GH-17233-00-00
Unavailable
34
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
35
OIL SEAL(1UY)
93102-35393-00
Unavailable
36
PLATE, BEARING COVER
1UY-15383-00-00
Unavailable
37
SCREW, COUNTERSUNK (4H7)
90151-06014-00
Unavailable
38
YOKE, JOINT
1YW-17556-01-00
Unavailable
39
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
40
NUT, SELF-LOCKING (1J7)
90185-14070-00
Unavailable
41
PLUG, SPEC''L SHAPE
90338-40215-00
Unavailable
42
SHIFTER ASSEMBLY
3GH-18420-01-00
Unavailable
43
POINT, NEUTRAL
3GH-18542-00-00
Unavailable
44
OIL SEAL (3X3)
93102-15212-00
Unavailable
45
BAR, SHIFT FORK GUIDE 2
(22U-18535-00-00)
Unavailable
46
FORK, SHIFT 1
3GH-18311-00-00
Unavailable
47
FORK, SHIFT 2
3GH-18312-00-00
Unavailable
48
BALL
93503-08007-00
Unavailable
49
SPRING, COMPRESSION (465)
90501-10353-00
Unavailable
50
BOLT, WASHER BASED(59V)
90105-14367-00
Unavailable
51
GASKET(59V)
90430-14194-00
Unavailable
52
BOOT, RUBBER
3JN-22189-00-00
Unavailable
53
PLATE 1
3GH-17665-00-00
Unavailable
54
SCREW, FLAT
98707-06012-00
Unavailable
55
BOLT, FLANGE
95817-08012-00
Unavailable
56
WASHER, PLATE 3411117500
90201-08087-00
Unavailable
57
PLUG, STRAIGHT SCREW
90340-16019-00
Unavailable
58
GASKET
90430-16048-00
Unavailable
59
GASKET 256113960000
90430-06014-00
Unavailable
