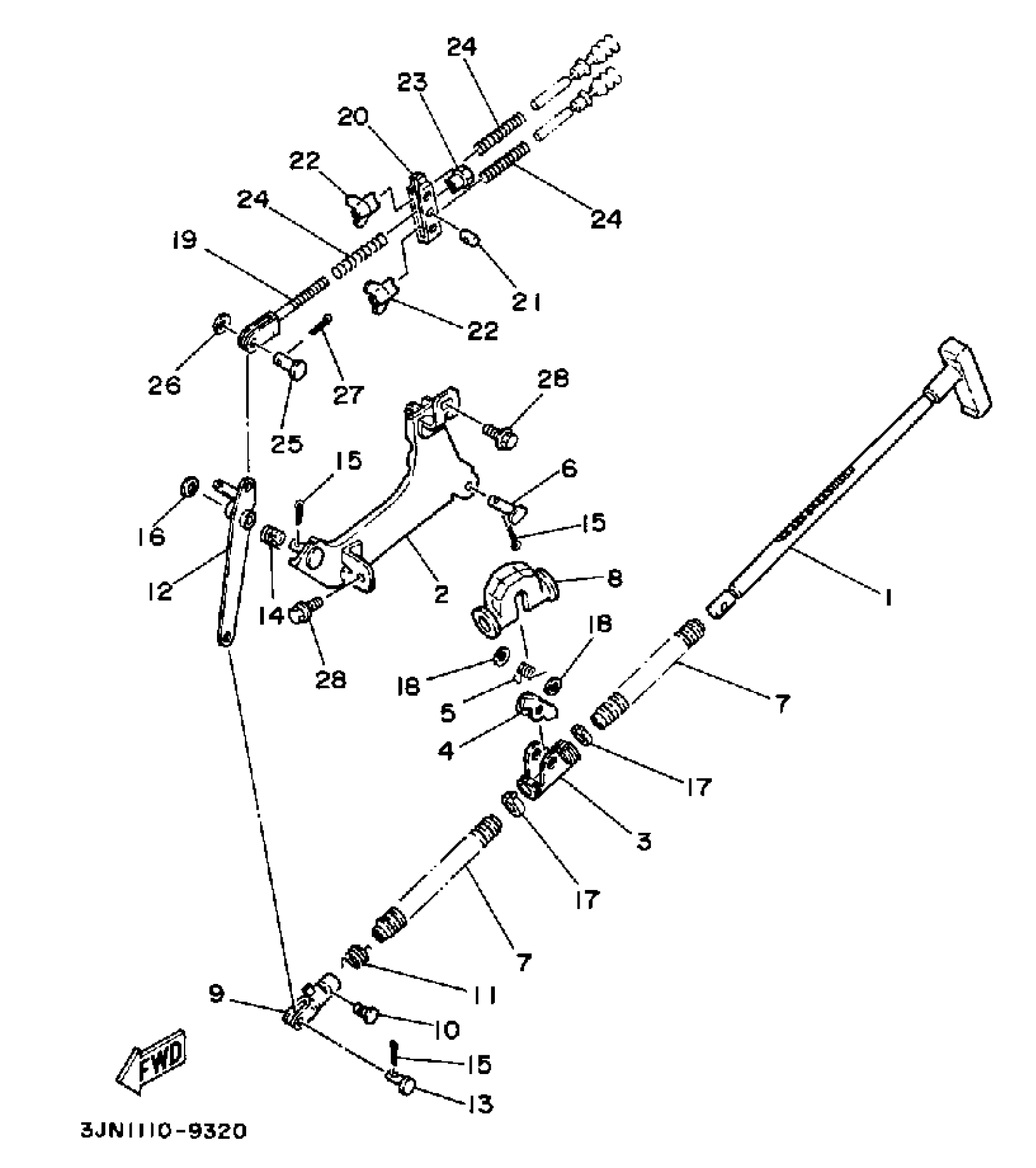

Yamaha YFU1TW (PRO-4 PRO HAULER W-TURF TIRES) 1989 PARKING BRAKE Diagram
#
1
ROD
(2NL-25685-00-00)
Unavailable
2
BRACKET, PEDAL
3JN-25654-00-00
Unavailable
3
BRACKET
(2NL-26296-00-00)
Unavailable
4
RATCHET, ADJUSTING
(2NL-25771-00-00)
Unavailable
5
HOOK, SPRING 2
3JN-25659-00-00
Unavailable
6
PIN 1
(2NL-25734-00-00)
Unavailable
7
BOOT
2NL-2629T-00-00
Unavailable
8
COVER, HANDLELEVER2
2NL-2637A-00-00
Unavailable
9
GRIP, LEVER
3JN-26166-00-00
Unavailable
10
PIN 2
(2NL-25744-00-00)
Unavailable
11
SPRING, RETURN 1
3JN-25735-00-00
Unavailable
12
INACTIVE PART NUMBER
2NL-27141-00-00
Unavailable
13
PIN 3
2NL-25754-00-00
Unavailable
14
SPRING, RETURN 2
(2NL-25745-00-00)
Unavailable
15
PIN
2NL-26267-00-00
Unavailable
16
WASHER
(2NL-26398-00-00)
Unavailable
17
CLAMP, WIRE
(2NL-2627E-00-00)
Unavailable
18
SPACER
(2NL-25683-00-00)
Unavailable
19
ROD, BRAKE
2NL-27231-00-00
Unavailable
20
JOINT, CABLE
2NL-26347-00-00
Unavailable
21
PIN 1562723700
90249-12008-00
Unavailable
22
NUT, WING (1K5)
90175-06013-00
Unavailable
23
NUT (25K)
90179-06411-00
Unavailable
24
SPRING, COMPRESSION (29U)
90501-10782-00
Unavailable
25
PIN, CLEVIS
91701-08020-00
Unavailable
26
.. WASHER, PLATE
92990-08600-00
Unavailable
27
PIN, COTTER
91490-25020-00
Unavailable
28
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
