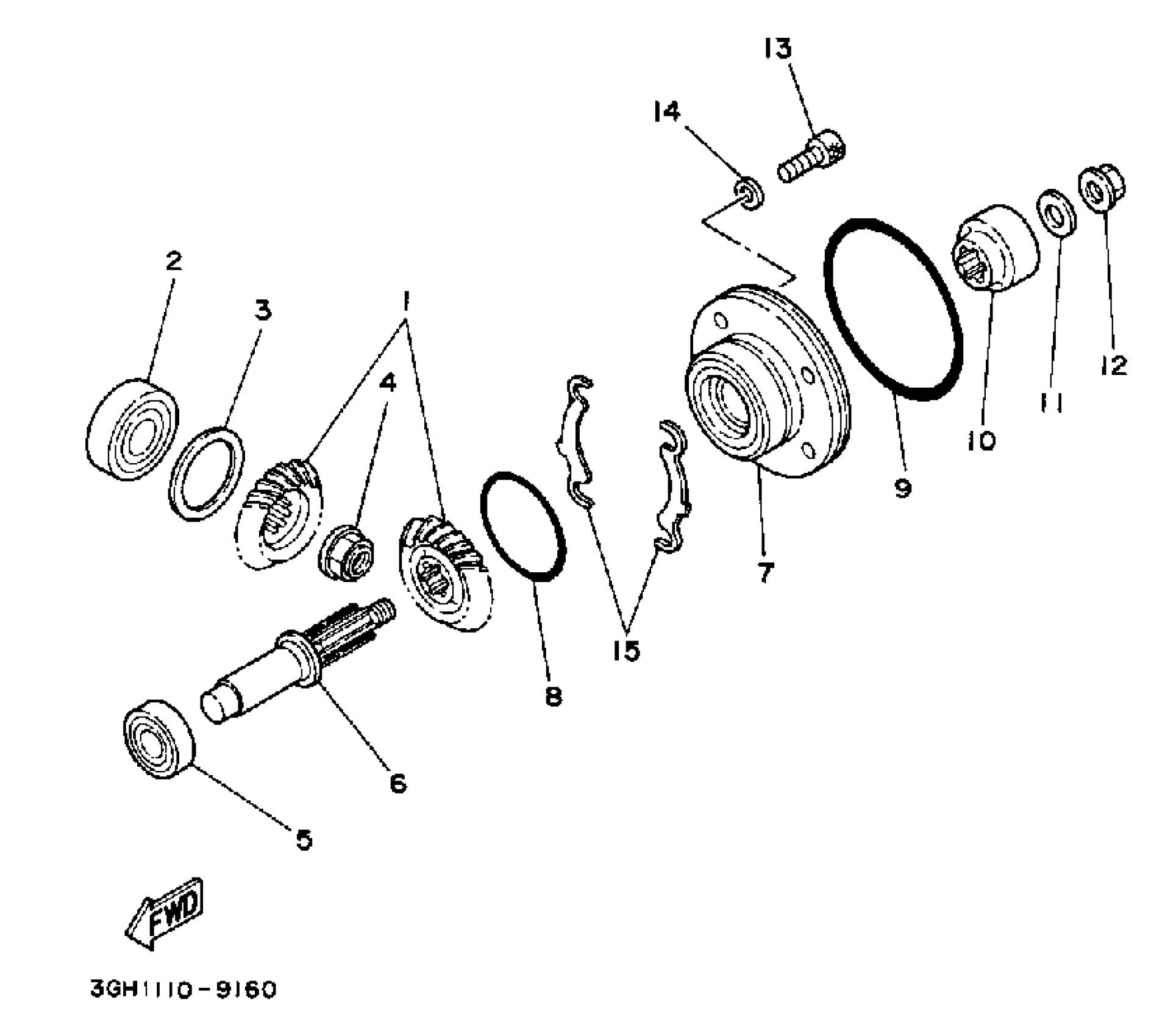

Yamaha YFU1TW (PRO-4 PRO HAULER W-TURF TIRES) 1989 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

MIDDLE GEAR COMP

3GH-Y1754-00-00

Unavailable

2

BEARING (6304YA1-9TC4)

93306-30442-00

$68.99

3

SHIM, THRUST (0.13T)

24W-17537-10-00

$2.39

3

SHIM, THRUST (0.15T)

24W-17537-20-00

$7.99

3

SHIM, THRUST (0.2T)

24W-17537-30-00

Unavailable

3

SHIM, THRUST (0.3T)

24W-17537-40-00

Unavailable

3

SHIM, THRUST (0.4T)

24W-17537-50-00

$7.99

3

SHIM, THRUST (0.5T)

24W-17537-60-00

$7.99

4

NUT(3GC)

90179-16651-00

Unavailable

5

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

6

SHAFT, MIDDLE DRIVEN

3GH-17553-00-00

Unavailable

7

HOUSING

3GH-17510-00-00

Unavailable

8

O-RING (24W)

93210-56589-00

$8.49

9

O-RING (3GH)

93210-98784-00

Unavailable

10

COUPLING, GEAR

3GH-46123-00-00

Unavailable

11

WASHER, PLATE

90201-12027-00

Unavailable

12

NUT(3EF)

90179-12657-00

Unavailable

13

BOLT,SOCKET

91314-08025-00

Unavailable

14

GASKET(3GH)

90430-08209-00

Unavailable

15

SHIM, PINION

3GH-17531-00-00

Unavailable

15

SHIM, PINION

3GH-17531-10-00

Unavailable

15

SHIM, PINION

3GH-17531-20-00

Unavailable

15

SHIM, PINION

3GH-17531-30-00

Unavailable

15

SHIM, PINION

3GH-17531-40-00

Unavailable

15

SHIM, PINION

3GH-17531-50-00

Unavailable

15

SHIM, PINION

3GH-17531-60-00

Unavailable
