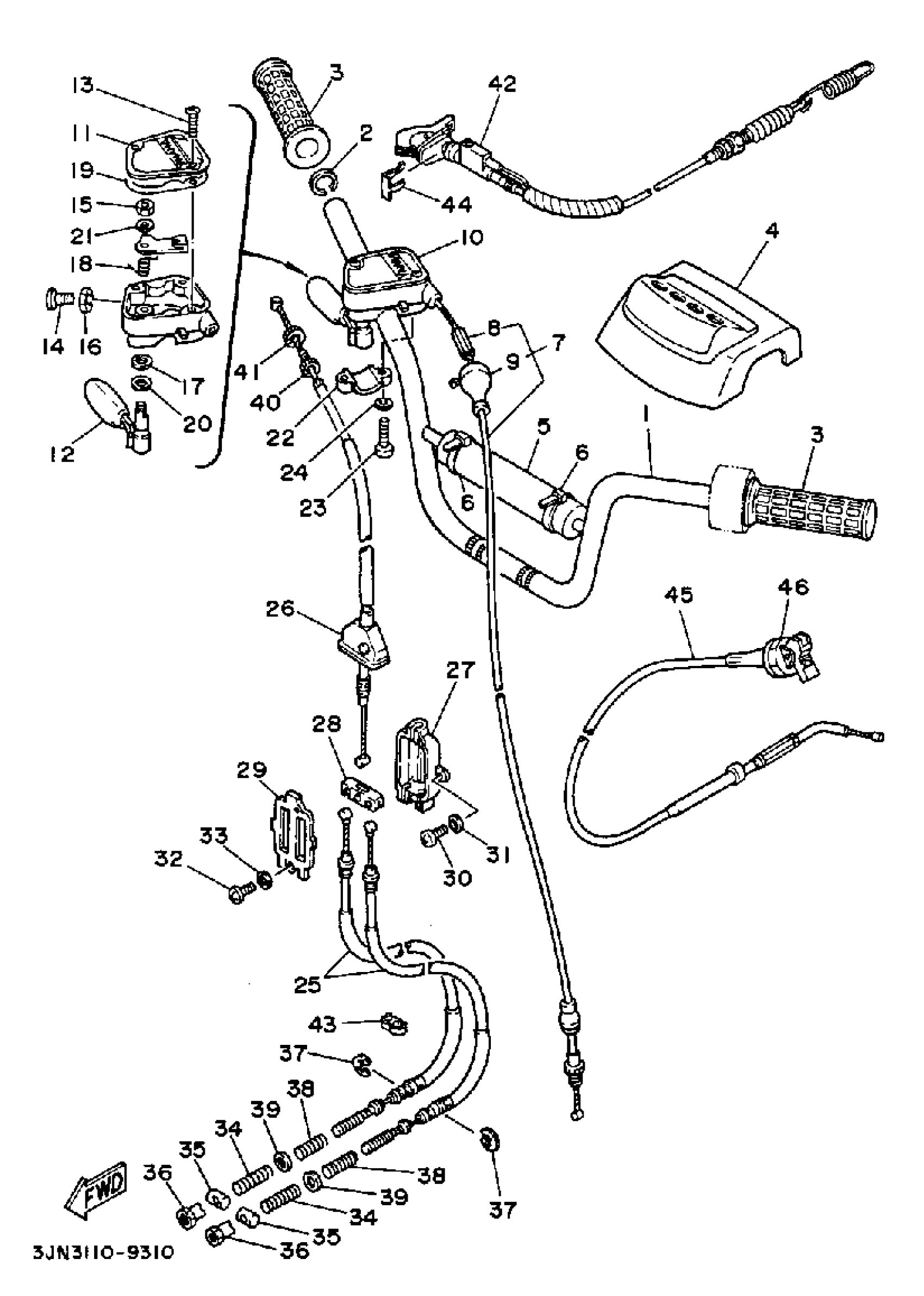

Yamaha YFU1TW (PRO-4 PRO HAULER W-TURF TIRES) 1989 HANDLEBAR - CABLE Diagram
#
1
HANDLEBAR
3JN-26111-00-00
Unavailable
4
PROTECTOR, HDLBRHANDLEBAR
3JN-26124-00-00
Unavailable
5
PROTECTOR 1
3JN-2622K-00-00
Unavailable
7
CABLE, THROTTLE 1
21V-26311-10-00
Unavailable
8
. NUT, SPEC''L SHAPE
90179-06139-00
Unavailable
9
. CAP, RUBBER
21V-26329-00-00
Unavailable
10
THROTTLE LEVER ASSEMBLY
1NV-26250-11-00
Unavailable
11
. CAP, GEAR
1NV-2628F-00-00
Unavailable
12
LEVER, THROTTLE
1NV-2625G-02-00
Unavailable
16
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
17
OIL SEAL (9X15X4-256)
93104-09025-00
Unavailable
18
SPRING
1NV-26304-00-00
Unavailable
19
. GASKET
1NV-2628G-00-00
Unavailable
20
WASHER
1NV-26129-00-00
Unavailable
21
. WASHER, SPECIAL
53L-83909-00-00
Unavailable
22
HOLDER, LEVER LOWER
4V4-82913-00-00
Unavailable
24
WASHER(3SX)
92907-05100-00
Unavailable
25
CABLE, BRAKE
3JN-26361-01-00
Unavailable
26
CABLE,BRAKE 4
3JN-26373-01-00
Unavailable
27
HOUSING, BRAKE LINK
52H-26371-00-00
Unavailable
28
JOINT, CABLE
52H-26347-01-00
Unavailable
29
PLATE
52H-2631G-00-00
Unavailable
30
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
31
WASHER, PLAIN (646)
92990-05600-00
Unavailable
32
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
33
WASHER(3SX)
92907-03600-00
Unavailable
34
SPRING, COMPRESSION (29U)
90501-10782-00
Unavailable
35
PIN 1562723700
90249-12008-00
Unavailable
36
NUT (25K)
90179-06411-00
Unavailable
37
CIRCLIP(53L)
99001-06600-00
Unavailable
38
SPRING, COMPRESSION(52H)
90501-123A0-00
Unavailable
39
WASHER(52H)
90209-06265-00
Unavailable
40
BOLT
90123-08002-00
Unavailable
41
NUT
90179-08030-00
Unavailable
42
WIRE, CONTROL 6
3JN-2637M-00-00
Unavailable
43
CLIP
90468-05188-00
Unavailable
44
CIRCLIP
2GU-25866-00-00
Unavailable
45
STARTER CABLE 1
59V-26331-02-00
Unavailable
46
Nut
8G8-26333-00-00
Unavailable
