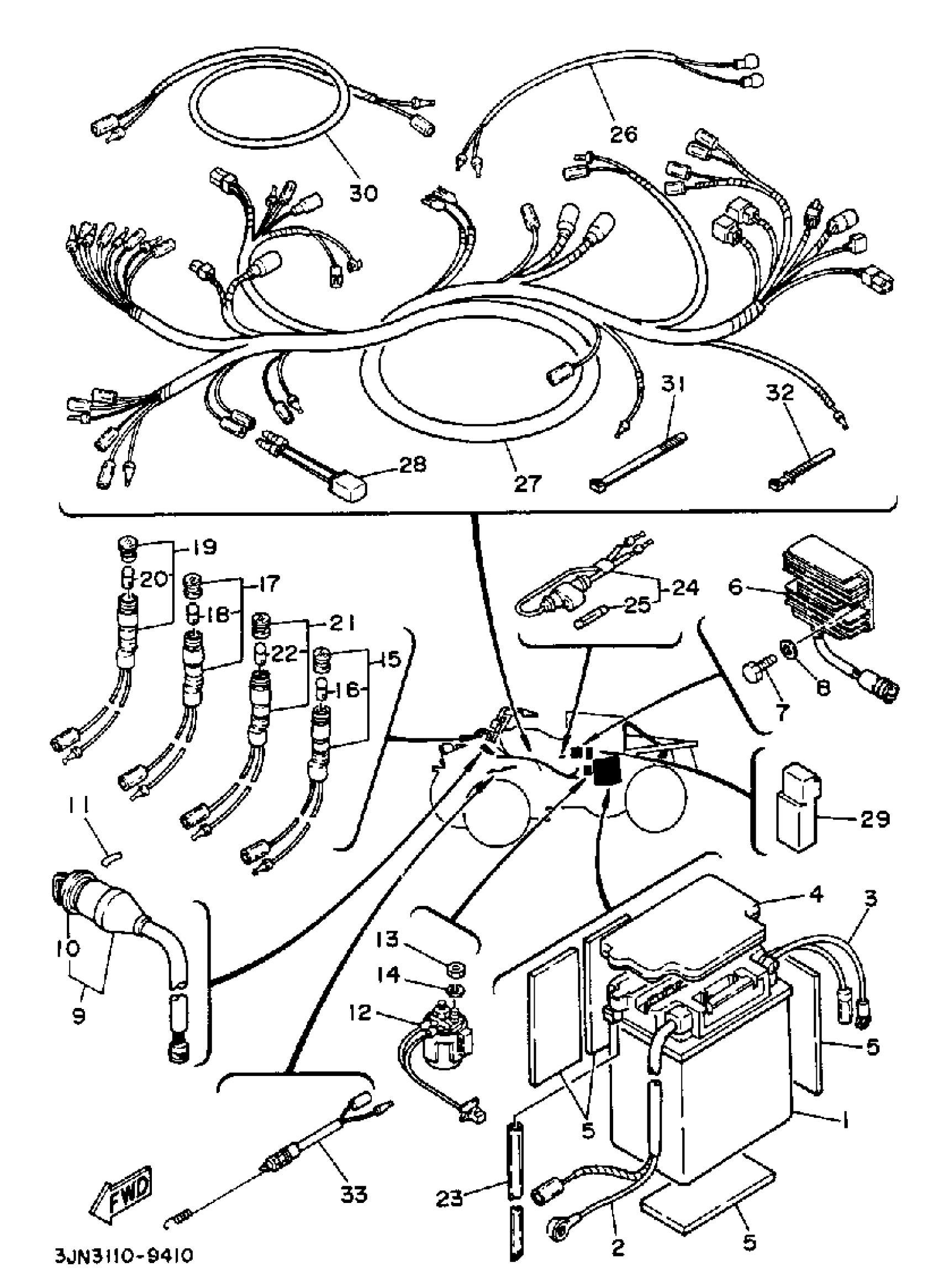

Yamaha YFU1TW (PRO-4 PRO HAULER W-TURF TIRES) 1989 ELECTRICAL 2 Diagram
#
Description
Price
1
CB14-A2 GS BATTERY
CB1-4A200-00-00
Unavailable
2
WIRE, PLUS LEAD
29U-82115-00-00
Unavailable
3
WIRE, MINUS LEAD
89H-82116-00-00
Unavailable
4
COVER, BATTERY
24W-82129-00-00
Unavailable
6
RECTIFIER & REGULATOR ASSEMBLY
59V-81960-A0-00
Unavailable
11
LABEL
29U-83585-10-00
Unavailable
14
WASHER, SPRING
92995-06100-00
Unavailable
15
PILOT LIGHT ASSY
3JN-83530-00-00
Unavailable
16
BULB
2XJ-83516-00-00
Unavailable
17
PILOT LIGHT ASSY
3JN-83530-00-00
Unavailable
18
BULB
2XJ-83516-00-00
Unavailable
19
PILOT LIGHT ASSY
3JN-83530-00-00
Unavailable
20
BULB
2XJ-83516-00-00
Unavailable
21
PILOT LIGHT ASSEMBLY
3JN-83530-30-00
Unavailable
22
BULB
2XJ-83516-00-00
Unavailable
23
HOSE (L500)
90445-08338-00
Unavailable
24
FUSE HOLDER ASSY
2NL-82150-00-00
Unavailable
25
FUSE (30A)
705-82151-01-00
Unavailable
26
WIRE, LEAD
3JN-82507-10-00
Unavailable
27
WIRE HARNESS ASSEMBLY
3JN-82590-10-00
Unavailable
28
RELAY ASSY
12R-81950-02-00
Unavailable
29
CHECKER, PILOT LAMP
38W-85774-00-00
Unavailable
30
WIRE, LEAD
59V-82541-00-00
Unavailable
31
BAND, SWITCH CORD
437-83936-01-00
Unavailable
32
BAND, SWITCH CORD
437-83936-11-00
Unavailable
33
STOP SWITCH ASSY
2NL-83980-03-00
Unavailable
