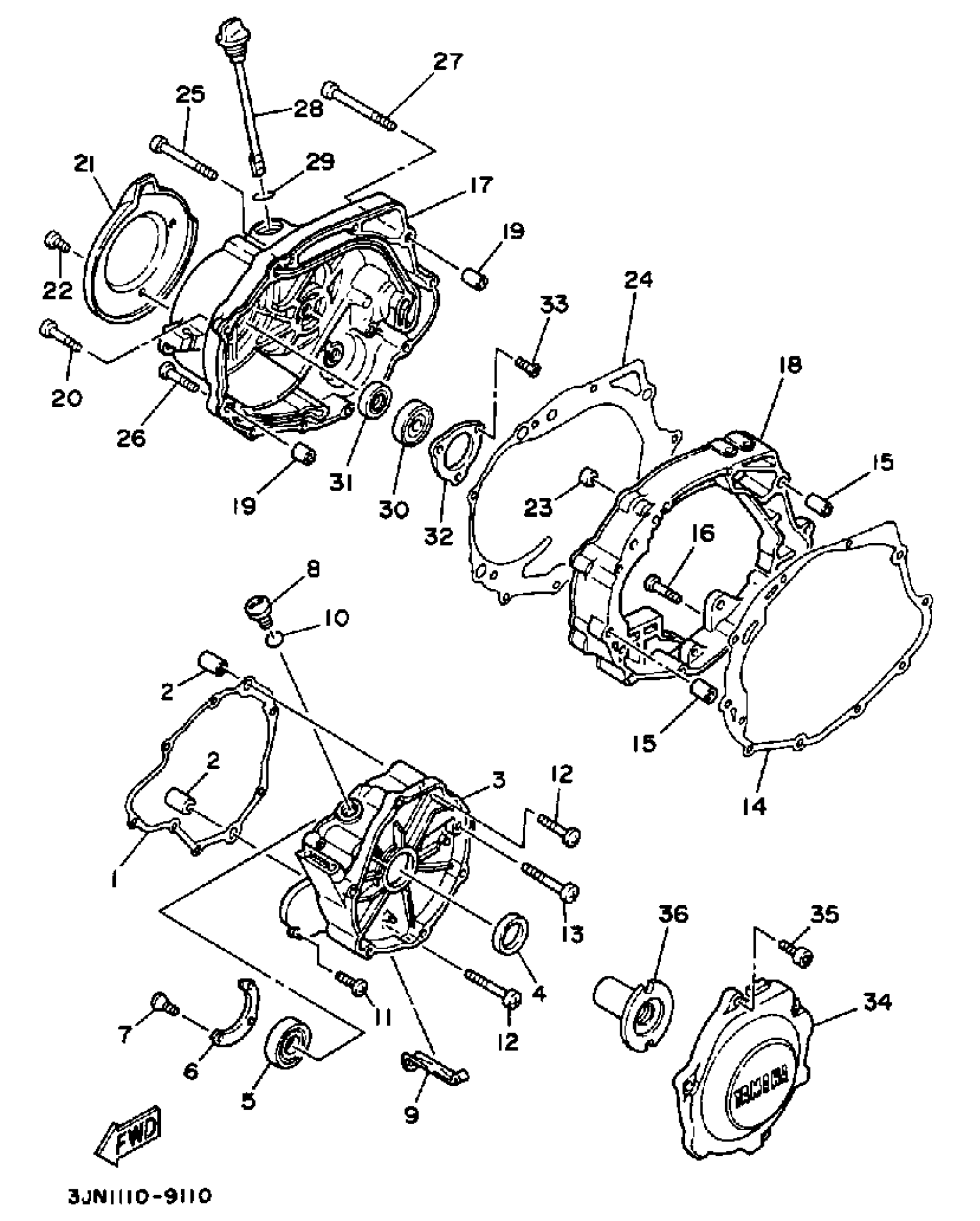

Yamaha YFU1TW (PRO-4 PRO HAULER W-TURF TIRES) 1989 CRANKCASE COVER Diagram

#

Description
Price

1

GASKET, CRANKCASE

3JN-15451-10-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

ADAPTOR

59V-15787-01-00

Unavailable

4

OIL SEAL (21V)

93103-28141-00

$17.99

5

BEARING(55X)

93306-07801-00

$55.99

6

WASHER, THRUST

21V-15719-00-00

Unavailable

7

SCREW, FLAT

98707-05016-00

$7.99

8

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

9

PLATE, LOCK

59V-15144-00-00

Unavailable

10

O-RING (2H9)

93210-14369-00

$7.49

11

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

12

SCREW, PAN

98507-06040-00

$3.22

13

SCREW, PAN

98507-06060-00

$7.99

14

GASKET,CARB COVER

3JN-15463-10-00

Unavailable

15

PIN, DOWEL

99530-12016-00

$4.89

16

SCREW PAN HEAD

98580-06040-00

Unavailable

17

COVER,CRANKCASE 3

3GH-15430-01-00

Unavailable

18

SPACER, ENGINE MOUNT

3GH-15317-00-00

Unavailable

19

PIN, DOWEL

99530-12016-00

$4.89

20

SCREW, PAN

98507-06040-00

$3.22

21

PROTECTOR, COVER

21V-15499-00-00

Unavailable

22

SCREW, BINDING

98907-06014-00

Unavailable

23

NOZZLE 2

3GH-15148-01-00

Unavailable

24

GASKET, CRCS COVER

3JN-15461-10-00

Unavailable

25

SCREW, PAN HEAD

98507-06070-00

Unavailable

26

SCREW, PAN

98507-06040-00

$3.22

27

SCREW, PAN

98507-06080-00

Unavailable

28

PLUG, OIL LEVEL

1UY-15362-01-00

Unavailable

29

O-RING (646)

93210-19123-00

Unavailable

30

BEARING(37F)

93306-20335-00

Unavailable

31

OIL SEAL (21V)

93101-17113-00

Unavailable

32

PLATE, BEARING COVER

21V-15381-00-00

Unavailable

33

SCREW, FLAT

98707-06018-00

Unavailable

34

CRANKCASE COVER ASSEMBLY L

59V-15410-01-00

Unavailable

35

BOLT,SOCKET

91317-06025-00

Unavailable

36

BOSS, STARTER PULLEY

3GC-15777-00-00

Unavailable
