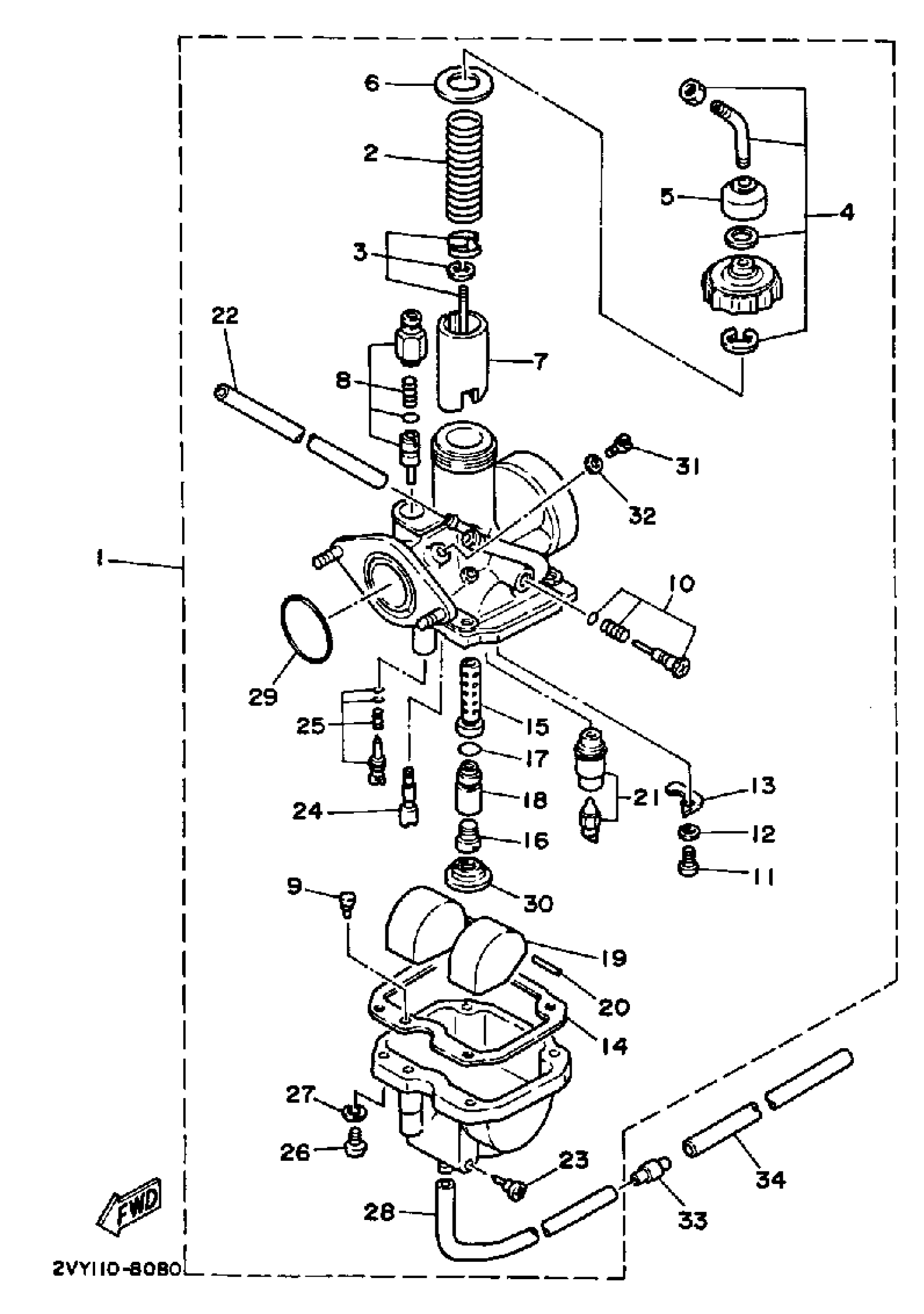

Yamaha YFU1TW (PRO-4 PRO HAULER W-TURF TIRES) 1989 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASY 1

3JN-14101-01-00

Unavailable

2

. SPRING, THROTTLE VALVE

21V-14131-00-00

Unavailable

3

. NEEDLE SET

3JN-1490J-00-00

Unavailable

4

CABLE ADJUST SCREW SET

10X-14106-00-00

$39.99

5

CAP

3X3-14169-00-00

$16.49

6

GASKET

4U5-14126-00-00

Unavailable

7

. VALVE, THROTTLE 1

1NU-14112-40-00

Unavailable

8

STARTER PLUNGER SET

21V-1410A-00-00

$106.99

9

. JET, STARTER (#55)

18M-14144-11-00

Unavailable

10

THROTTLE SCREW SET

18G-14103-00-00

$27.99

11

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

12

WASHER, SPRING

92990-03100-00

$8.49

13

. PLATE

59V-14146-00-00

Unavailable

14

GASKET, FLOAT CHAMBER

24W-14184-00-00

$22.99

15

NOZZLE, MAIN

21V-14141-26-00

$35.99

16

JET, MAIN (#105)

620-14231-21-A0

Unavailable

17

O-RING

583-14561-00-00

Unavailable

18

. JET, HOLDER

21V-14148-00-00

Unavailable

19

FLOAT

21V-14185-00-00

Unavailable

20

PIN, FLOAT

127-14186-00-00

Unavailable

21

NEEDLE VALVE ASSY

5HH-14190-18-00

Unavailable

22

HOSE (L340)

90445-08684-00

Unavailable

23

PLUG, DRAIN

12R-14191-00-00

Unavailable

24

JET, PILOT (#17.5)

22F-14142-17-00

Unavailable

25

PILOT SCREW SET

21V-14105-00-00

Unavailable

26

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

27

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

28

PIPE

26H-14197-01-00

Unavailable

29

O-RING

24W-14147-00-00

Unavailable

30

WASHER, MAIN JET

5V7-14153-00-00

Unavailable

31

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

32

. WASHER

59V-14962-00-00

Unavailable

33

PIPE 2,OVERFLOW

24W-14193-00-00

Unavailable

34

TUBE, FLEXIBLE(3NV)

91A21-07020-00

Unavailable
