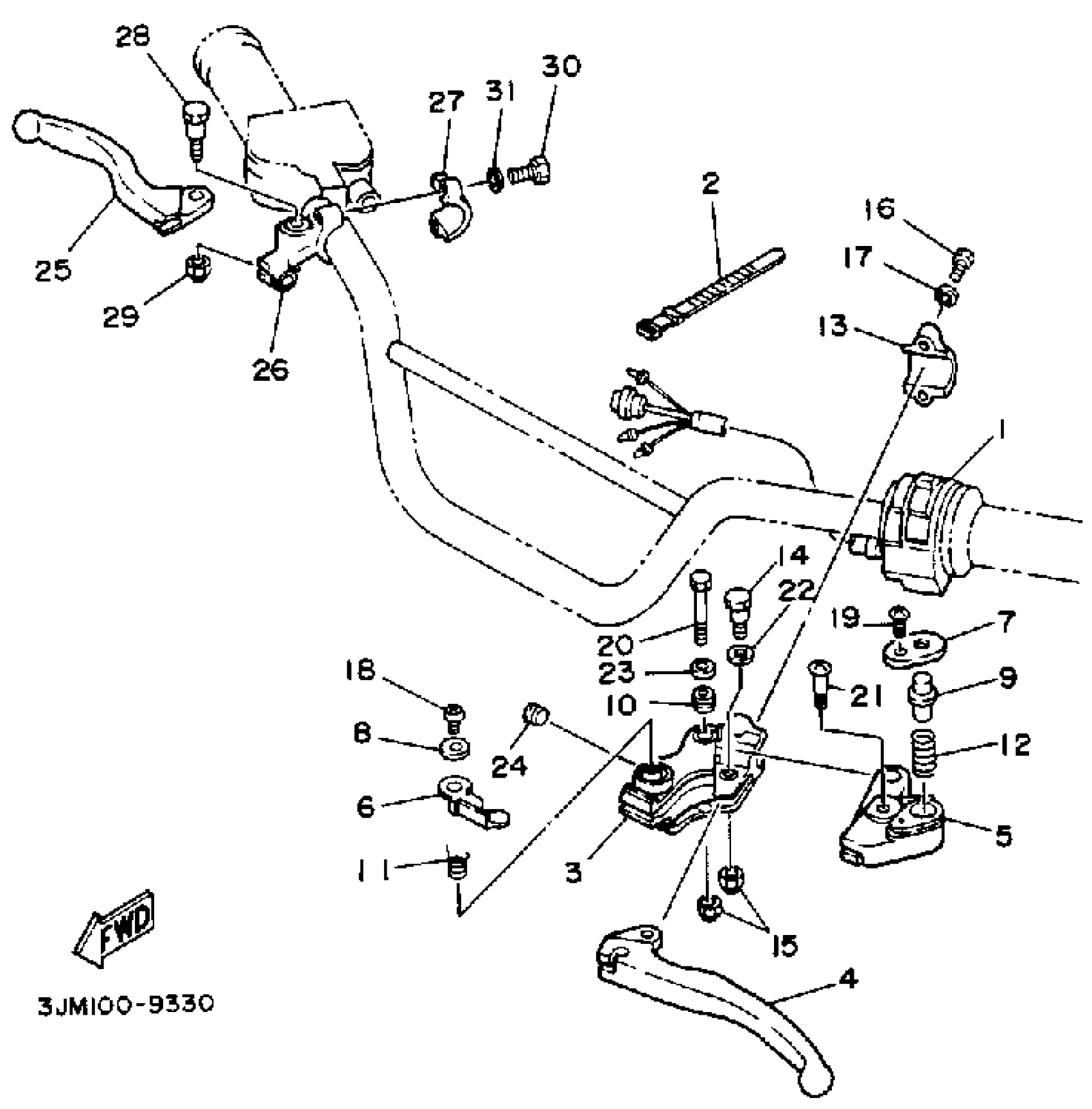

Yamaha YFS200W (BLASTER) 1989 HANDLE SWITCH LEVER Diagram
#
Description
Price
1
SWITCH, HANDLE 2
2XJ-83975-09-00
Unavailable
3
HOLDER, LEVER 1
99999-02990-00
Unavailable
5
LEVER RT
2XJ-83922-00-00
Unavailable
6
LEVER, LOCK
2XJ-83965-00-00
Unavailable
7
COVER
1UY-83935-00-00
Unavailable
9
PIN, LOCK 1
1UY-83967-00-00
Unavailable
13
HOLDER, LEVER LOWER
4V4-82913-00-00
Unavailable
16
SCREW, PAN HEAD
98517-05020-00
Unavailable
17
WASHER(3SX)
92907-05100-00
Unavailable
18
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
19
SCREW, PAN HEAD(3AC)
98517-03008-00
Unavailable
20
BOLT(8BC)
97017-06040-00
Unavailable
21
SCREW
90149-06258-00
Unavailable
22
WASHER, PLATE 1562722600
90201-08083-00
Unavailable
23
WASHER(6TA)
92907-06200-00
Unavailable
24
PLUG(2GU)
90338-12192-00
Unavailable
25
LEVER R
1NV-83922-00-00
Unavailable
26
HOLDER, LEVER 2
3JN-82921-00-00
Unavailable
27
HOLDER, LEVER LOWER 1
2XJ-82913-00-00
Unavailable
28
BOLT(1FG)
90109-06798-00
Unavailable
30
BOLT, HEXAGON
97017-06025-00
Unavailable
31
WASHER, SPRING
92907-06100-00
Unavailable
