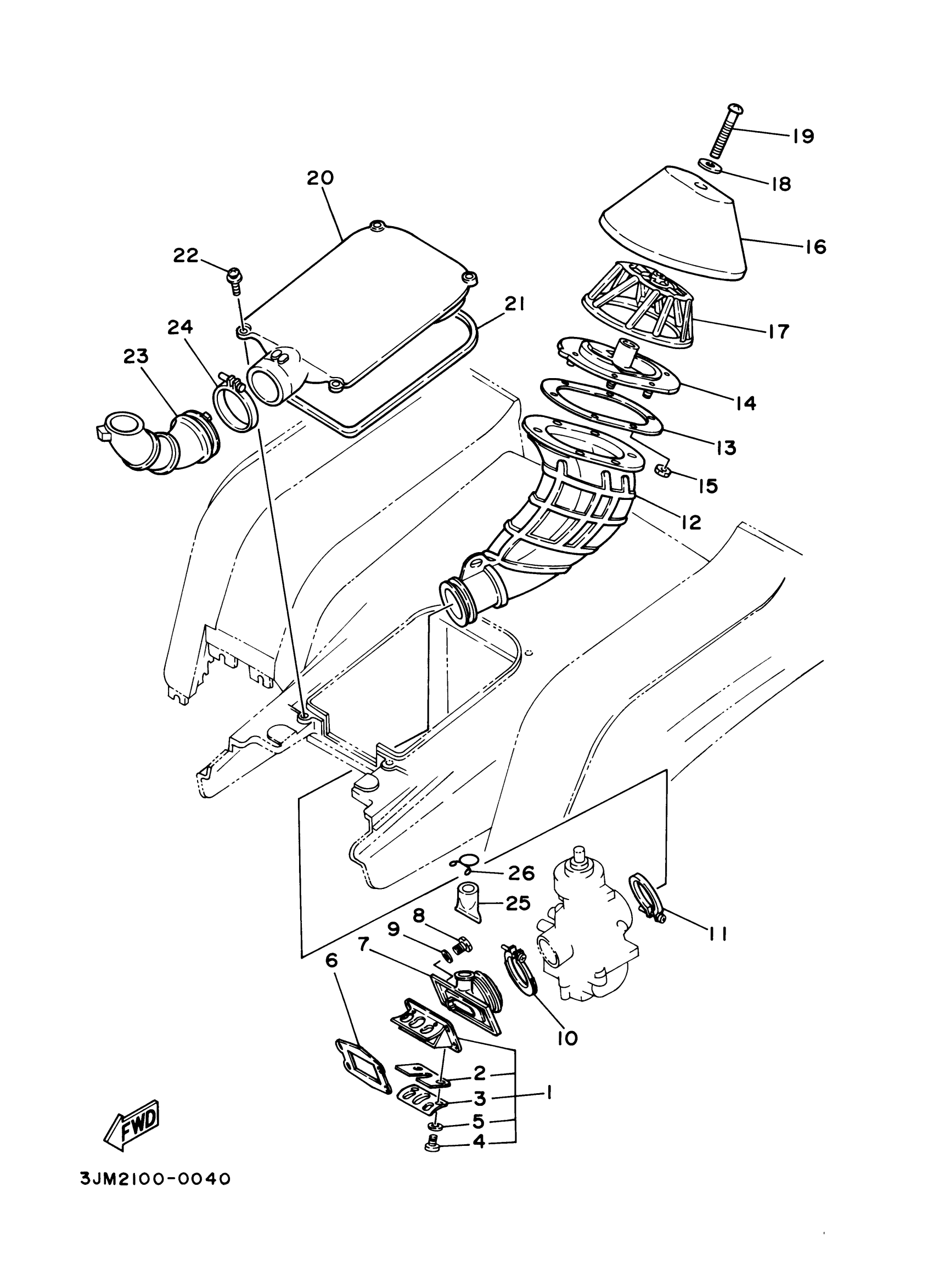

Yamaha YFS200V (BLASTER) 5VM7 2006 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

2HF-13610-01-00

$183.99

2

REED, VALVE

2HF-13613-00-00

$23.99

3

STOPPER, REED VALVE

58T-13616-01-00

$9.99

4

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

5

WASHER, SPRING

92990-03100-00

$8.49

6

GASKET, VALVE SEAT

3JM-13621-00-00

$17.49

7

JOINT, CARBURETOR

2XJ-13565-00-00

$67.99

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER(6TA)

92907-06600-00

$2.72

10

HOSE CLAMP ASSY(1MX)

90450-44046-00

$16.99

11

CLAMP HOSE 278144550000

90460-49058-00

$7.49

12

JOINT, AIR CLEANER 1

2XJ-14453-00-00

$186.99

13

PLATE

2XJ-14477-00-00

$42.99

14

HOLDER, GUIDE

2XJ-14459-00-00

Unavailable

15

NUT, U

95617-05100-00

$9.49

16

ELEMENT, AIR CLEANER

2XJ-14451-01-00

Unavailable

17

GUIDE

2XJ-14458-00-00

Unavailable

18

WASHER (4H7)

90209-06096-00

Unavailable

19

SCREW, PAN

98507-06060-00

Unavailable

20

CAP, CLEANER CASE 1

2XJ-14412-01-00

Unavailable

21

SEAL

1VJ-14462-00-00

Unavailable

22

SCREW, WITH WASHER (36X)

90159-06085-00

Unavailable

23

DUCT

2XJ-14437-00-00

Unavailable

24

HOSE CLAMP ASSY

90450-56001-00

Unavailable

25

SEAL

59V-14457-00-00

Unavailable

26

CLIP (21V)

90467-22080-00

Unavailable
