Description

Price

1

FENDER,FRONT COMP. (DPBSE)

2XJ-W2151-C1-00

Unavailable

1

FRONT FENDER COMP. (BLUISH WHITE SOLID 1)

2XJ-W2151-D1-00

Unavailable

2

FENDER, FRONT 2 (DEEP PURPLISH BLUE SOLID E)

2XJ-21556-C0-00

Unavailable

2

FENDER, FRONT 2 (BLUISH WHITE SOLID 1)

2XJ-21556-D0-00

Unavailable

3

SCREW(3JM)

90149-06306-00

$8.49

4

NUT, SELF-LOCKING

95617-06100-00

$8.49

5

WASHER(6TA)

92907-06200-00

$8.49

6

STAY, FENDER 1

2XJ-21513-01-00

Unavailable

7

BOLT, FLANGE

95817-06012-00

$1.43

8

PANEL, FRONT (DEEP PURPLISH BLUE SOLID E)

5VM-23391-00-00

Unavailable

8

PANEL, FRONT (BLUISH WHITE SOLID 1)

5VM-23391-20-00

Unavailable

9

SCREW, BINDING (8G6)

90154-05002-00

$10.49

10

COVER, TOP (DEEP PURPLISH BLUE SOLID E)

2XJ-2171A-C0-00

Unavailable

10

COVER, TOP (BLUISH WHITE SOLID 1)

2XJ-2171A-E0-00

Unavailable

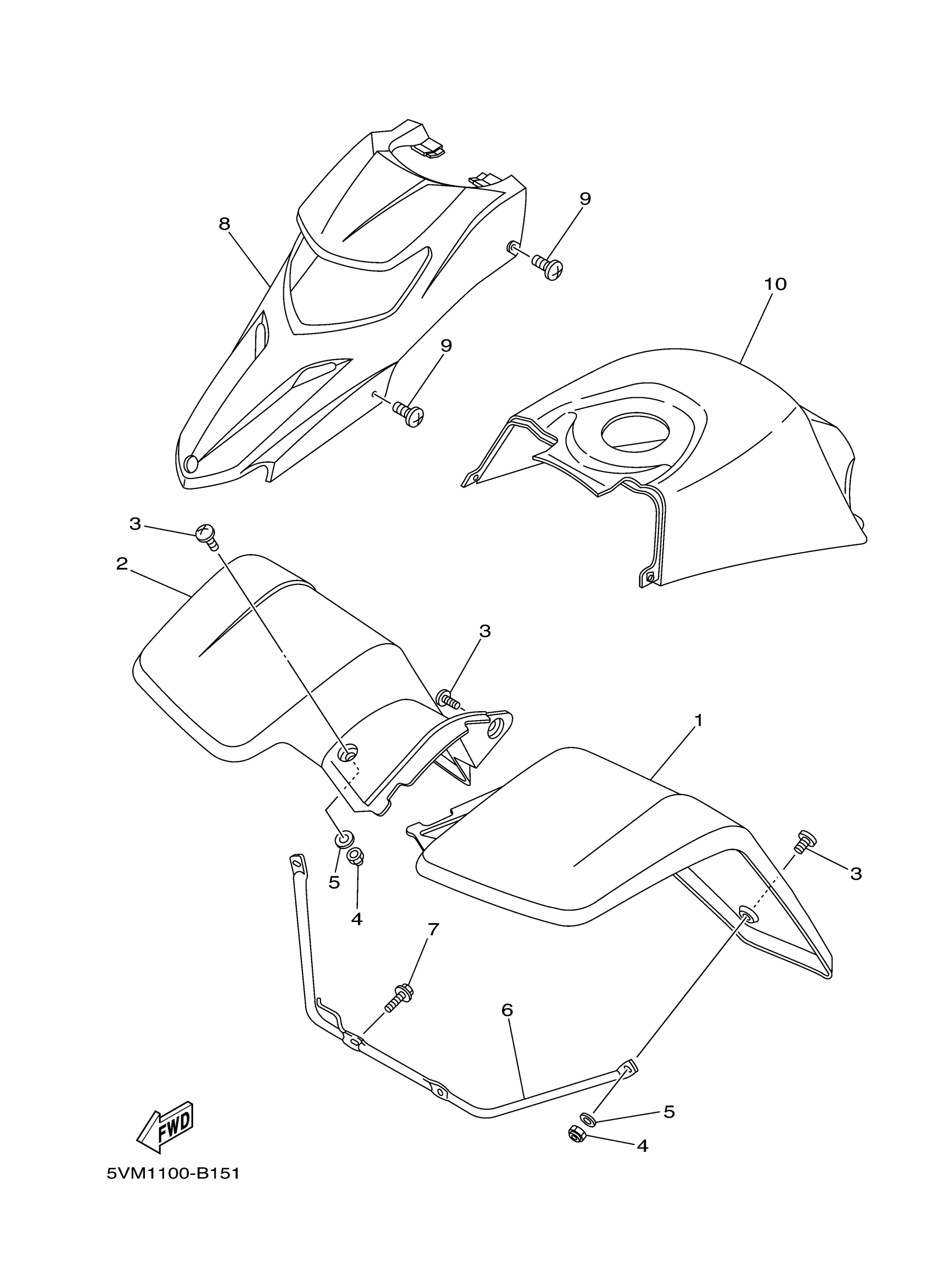

Yamaha YFS200V (BLASTER) 5VM7 2006 FRONT FENDER Diagram

FENDER,FRONT COMP. (DPBSE)

FRONT FENDER COMP. (BLUISH WHITE SOLID 1)

FENDER, FRONT 2 (DEEP PURPLISH BLUE SOLID E)

FENDER, FRONT 2 (BLUISH WHITE SOLID 1)

SCREW(3JM)

NUT, SELF-LOCKING

WASHER(6TA)

STAY, FENDER 1

BOLT, FLANGE

PANEL, FRONT (DEEP PURPLISH BLUE SOLID E)

PANEL, FRONT (BLUISH WHITE SOLID 1)

SCREW, BINDING (8G6)

COVER, TOP (DEEP PURPLISH BLUE SOLID E)

COVER, TOP (BLUISH WHITE SOLID 1)
