Description

Price

1

C.D.I. UNIT ASSY

5VM-85540-00-00

Unavailable

2

BAND

1B2-H5546-00-00

$5.49

3

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

4

BOLT, HEXAGON

97017-06020-00

$4.06

5

WASHER, SPRING

92907-06100-00

$4.25

6

CLAMP

90464-08002-00

$2.65

7

PLUG CAP ASSY

8DG-82370-00-00

$49.99

8

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$71.99

9

SCREW, WITH WASHER (5U8)

90159-06056-00

$8.49

10

WIRE HARNESS ASSY

5VM-82590-00-00

Unavailable

11

BAND, SWITCH CORD

437-83936-11-00

$4.63

12

CLAMP (3Y2)

90464-16039-00

$9.49

13

CLAMP(4FM)

90464-15195-00

$4.41

14

CLAMP(4FM)

90464-15195-00

$4.41

15

MAIN SWITCH ASSY

2XJ-82510-02-00

$55.99

16

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

17

CAP, KEY

3HN-82579-00-00

Unavailable

18

PILOT LIGHT ASSY

2XJ-83530-10-00

Unavailable

19

BULB (12V-3.4W)

123-83516-21-00

Unavailable

20

OIL LEVEL GAUGE ASSY

2XJ-85720-04-00

Unavailable

21

STOP SWITCH ASSY

5VM-82530-00-00

Unavailable

22

CLAMP (3Y2)

90464-16039-00

$9.49

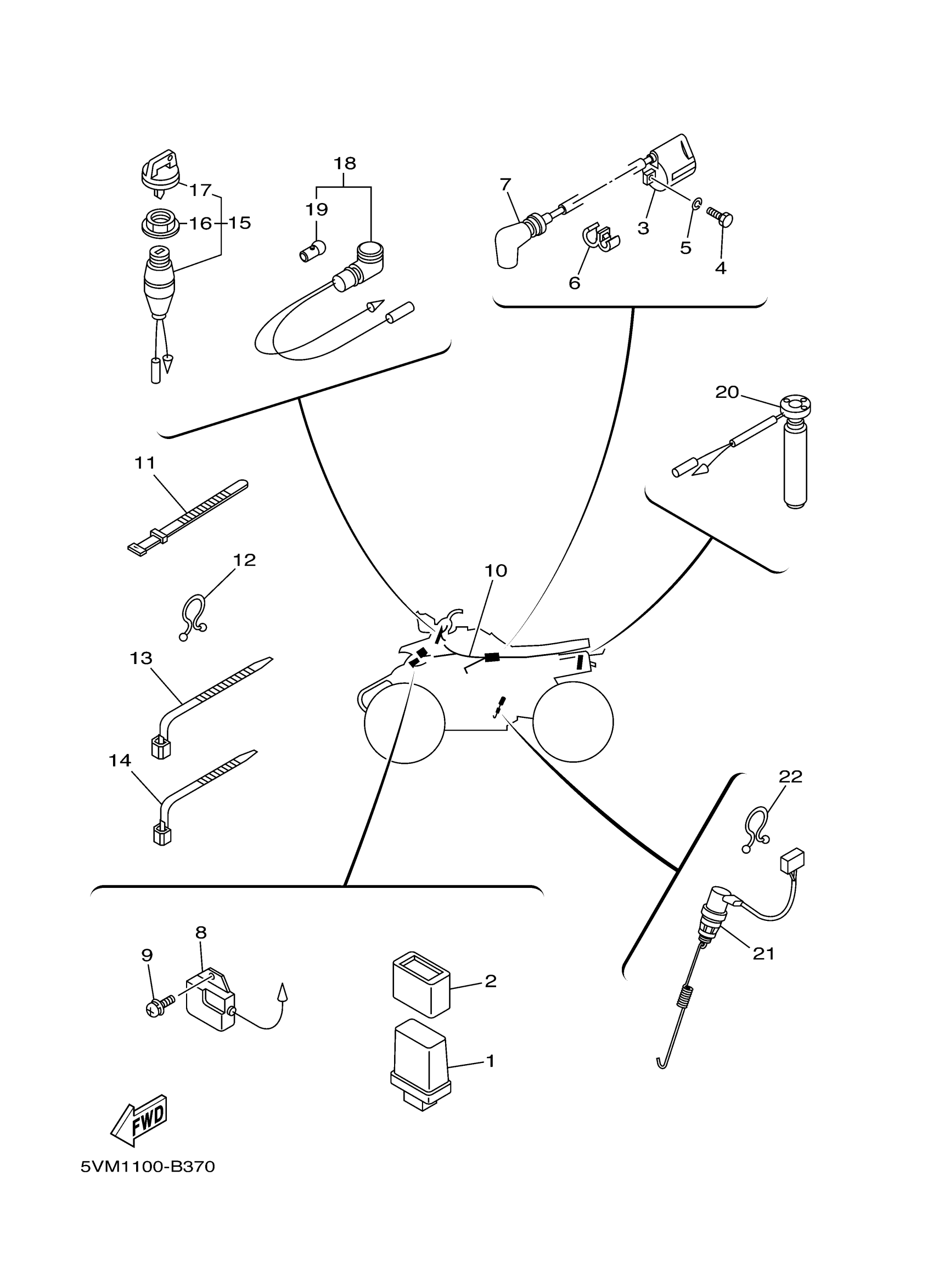

Yamaha YFS200V (BLASTER) 5VM7 2006 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSY

BAND

IGNITION COIL ASSY

BOLT, HEXAGON

WASHER, SPRING

CLAMP

PLUG CAP ASSY

VOLTAGE REGULATOR ASSY

SCREW, WITH WASHER (5U8)

WIRE HARNESS ASSY

BAND, SWITCH CORD

CLAMP (3Y2)

CLAMP(4FM)

CLAMP(4FM)

MAIN SWITCH ASSY

NUT, MAIN SWITCH

CAP, KEY

PILOT LIGHT ASSY

BULB (12V-3.4W)

OIL LEVEL GAUGE ASSY

STOP SWITCH ASSY

CLAMP (3Y2)
