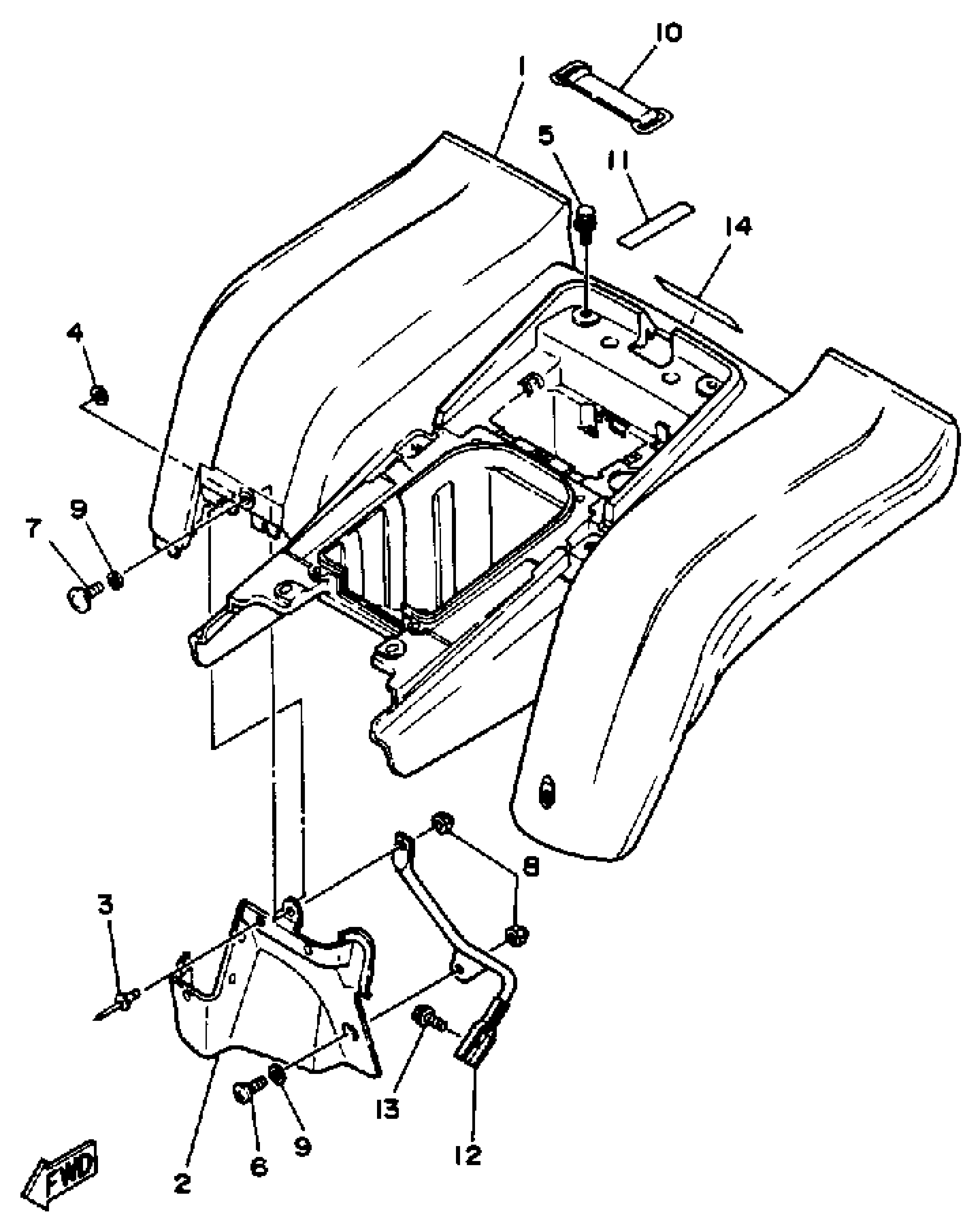

Yamaha YFS200U (BLASTER) 2XJ 1988 REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR

2XJ-W2161-71-00

Unavailable

2

FLAP

2XJ-21621-00-00

Unavailable

3

RIVET (856)

90267-48014-00

$4.88

4

WASHER, PLATE

90201-04027-00

$3.02

5

BOLT, WITH WASHER

90119-06152-00

$7.49

6

SCREW(3JM)

90149-06306-00

$8.49

7

SCREW, ROUND HEAD(3JM)

90150-06037-00

$9.49

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

10

BAND, BATTERY

2T4-82131-00-00

$8.99

11

O-RING(2HT)

93210-61750-00

$8.49

12

STAY, FENDER 2

2XJ-21614-00-00

Unavailable

13

BOLT, BUTTON HEAD

92017-08012-00

$8.49

14

EMBLEM,YAMAHA(3BB)

99242-00020-00

Unavailable

14

EMBLEM, YAMAHA

99243-00080-00

Unavailable
