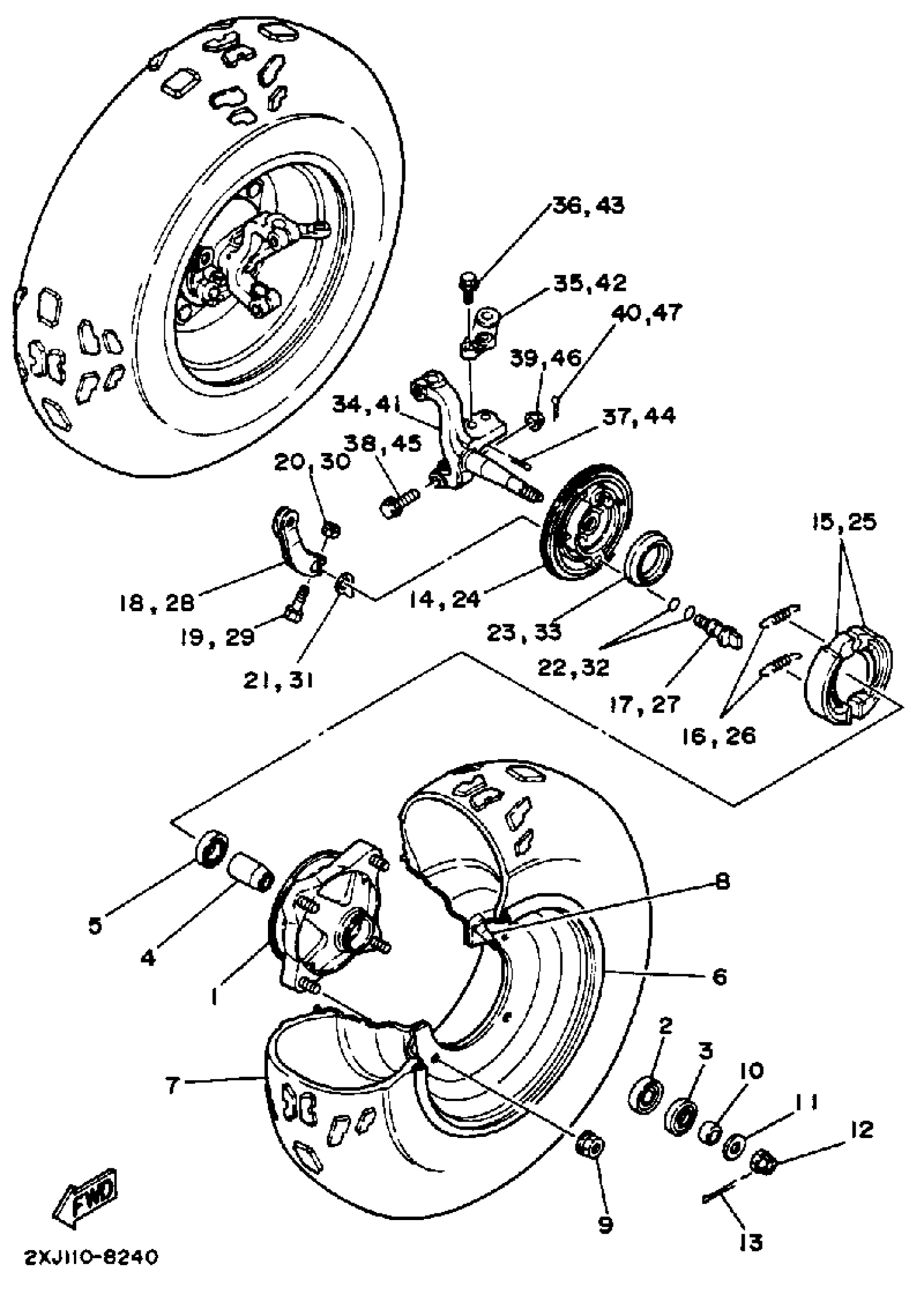

Yamaha YFS200U (BLASTER) 2XJ 1988 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

2XJ-25111-00-00

Unavailable

2

BEARING

93306-20205-00

$38.99

3

OIL SEAL (7H5)

93102-22216-00

$11.49

4

SPACER, BEARING

1UY-25117-00-00

$28.99

5

BEARING(2JN)

93306-90403-00

$44.99

6

WHEEL COMP.

2XJ-25180-00-35

Unavailable

7

AT21X7-R10 DUN KT351A

94107-100X3-00

Unavailable

8

VALVE, RIM(2GH)

93900-00030-00

$16.99

9

NUT, FLANGE(3BM)

95704-10500-00

$4.29

10

COLLAR(1UY)

90387-150R1-00

$7.49

11

WASHER PLATE 248181370000

90201-14220-00

$8.49

12

NUT, CASTLE(2UJ)

90171-14056-00

$13.49

13

PIN, COTTER

91490-30030-00

$8.49

14

PLATE, BRAKE SHOE

2XJ-25121-00-00

Unavailable

15

BRAKE SHOE KIT

4BE-W253E-00-00

$21.99

16

SPRING, TENSION

90506-15260-00

Unavailable

17

CAMSHAFT

5G3-25351-02-00

Unavailable

18

LEVER, CAMSHAFT 1

52H-25155-00-00

Unavailable

19

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

21

PLATE, INDICATOR

52H-2513A-00-00

Unavailable

22

O-RING(3LD)

93210-12790-00

Unavailable

23

OIL SEAL

93105-49023-00

Unavailable

24

PLATE, BRAKE SHOE 2

2XJ-25169-00-00

Unavailable

25

BRAKE SHOE KIT

4BE-W253E-00-00

$21.99

26

SPRING, TENSION

90506-15260-00

Unavailable

27

CAMSHAFT

5G3-25351-02-00

Unavailable

28

LEVER, CAMSHAFT 2

52H-25156-00-00

Unavailable

29

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

30

NUT, HEXAGON

95380-06600-00

Unavailable

31

PLATE, INDICATOR

52H-2513A-00-00

Unavailable

32

O-RING(3LD)

93210-12790-00

Unavailable

33

OIL SEAL

93105-49023-00

Unavailable

34

KNUCKLE,STEERING ASSY 1

99999-02629-00

Unavailable

35

ARM, KNUCKLE 1

2XJ-23512-01-00

Unavailable

36

BOLT, FLANGE

90105-10507-00

Unavailable

37

PIN, COTTER

91490-20025-00

Unavailable

38

BOLT, WASHER BASED

90105-10508-00

Unavailable

39

NUT, FLANGE(3BM)

95704-10500-00

$4.29

40

PIN, COTTER

91490-20025-00

Unavailable

41

KNUCKLE,STEERING 2

99999-02647-00

Unavailable

42

ARM, KNUCKLE 2

2XJ-23522-01-00

Unavailable

43

BOLT, FLANGE

90105-10507-00

Unavailable

44

PIN, COTTER

91490-20025-00

Unavailable

45

BOLT, WASHER BASED

90105-10508-00

Unavailable

46

NUT, FLANGE(3BM)

95704-10500-00

$4.29

47

PIN, COTTER

91490-20025-00

Unavailable
