Description

Price

1

FRAME

2XJ-21110-00-UJ

Unavailable

2

BOLT, WASHER BASED(8AB)

90105-10712-00

$17.99

3

WASHER, PLATE (3L6)

90201-10774-00

$9.49

4

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

5

BOLT, WASHER BASED(4JG)

90105-08721-00

$4.46

6

TENSIONER

30X-22178-00-00

$35.99

7

BUSH

4V4-22184-00-00

$4.47

8

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

9

BOLT, FLANGE

95817-08012-00

$5.49

10

BUSH, SOLID (J22)

90381-15040-00

$29.99

11

O-RING (22U)

93210-15566-00

$7.49

12

NIPPLE, GREASE

93700-06M03-00

Unavailable

13

PLUG(1FN)

90338-23172-00

$12.49

14

TOOL KIT

2XJ-28100-00-00

Unavailable

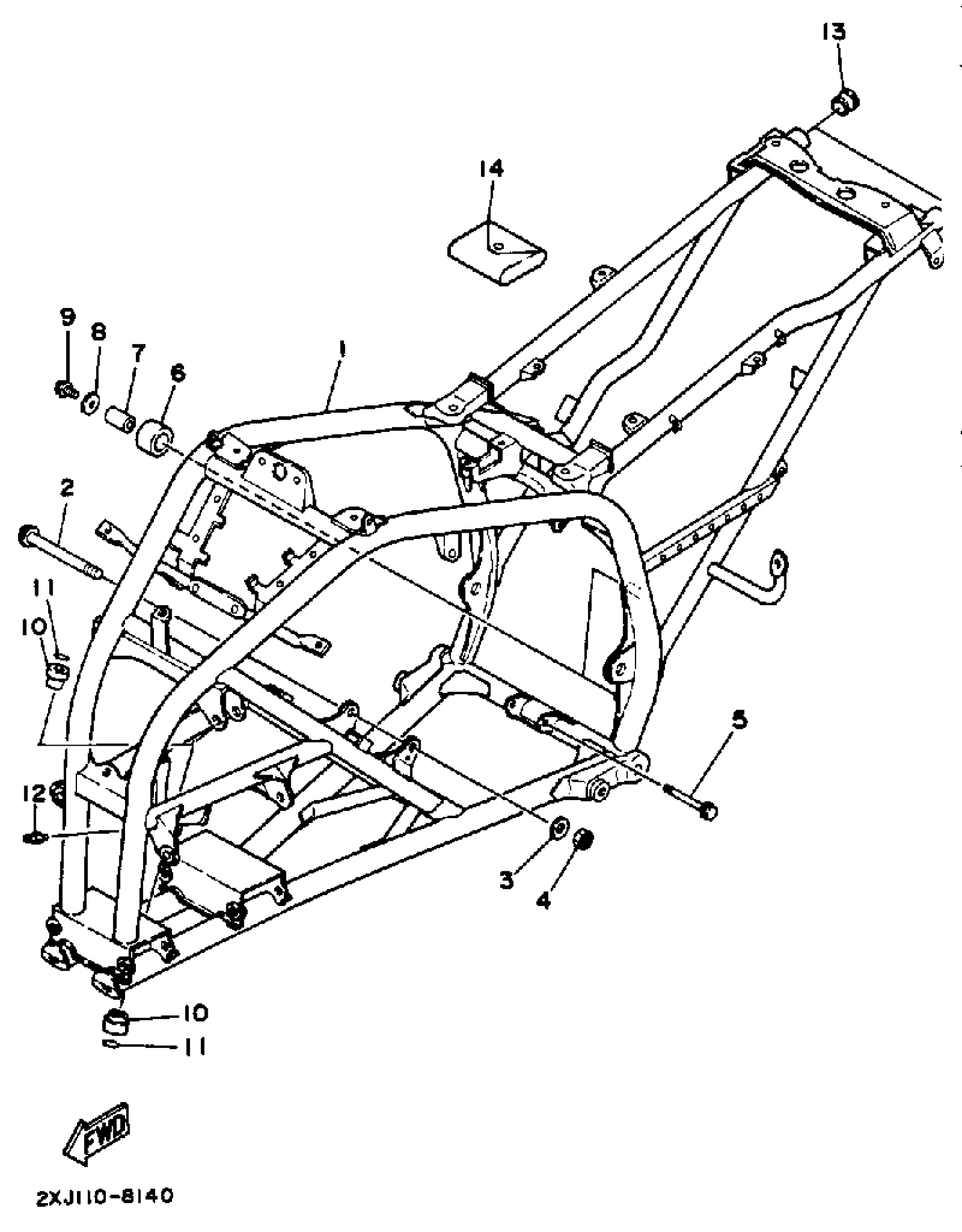

Yamaha YFS200U (BLASTER) 2XJ 1988 FRAME Diagram

FRAME

BOLT, WASHER BASED(8AB)

WASHER, PLATE (3L6)

NUT, SELFLOCKING (533 FRAME)

BOLT, WASHER BASED(4JG)

TENSIONER

BUSH

WASHER, PLATE(8AT)

BOLT, FLANGE

BUSH, SOLID (J22)

O-RING (22U)

NIPPLE, GREASE

PLUG(1FN)

TOOL KIT
