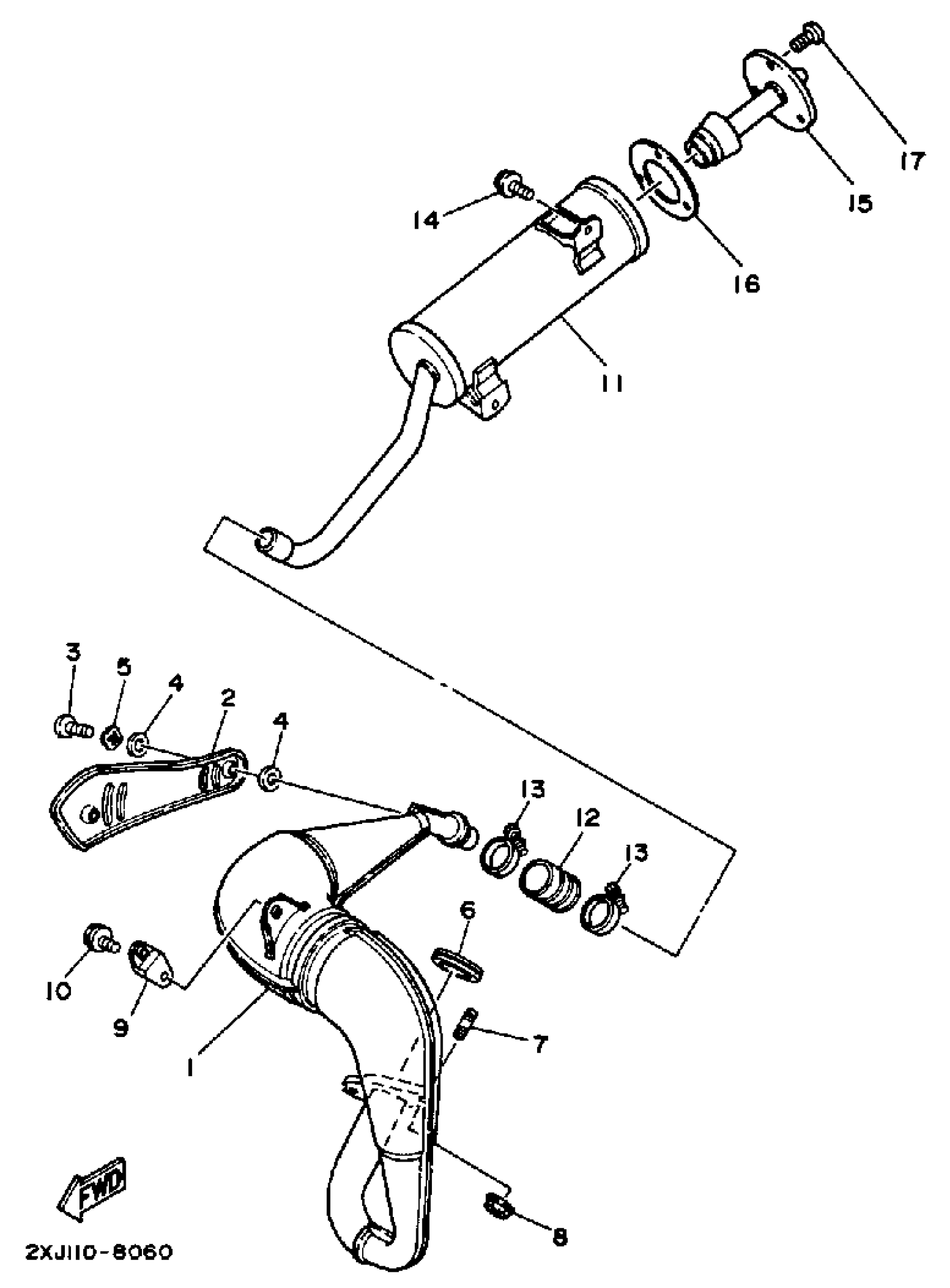

Yamaha YFS200U (BLASTER) 2XJ 1988 EXHAUST Diagram

EXHAUST PIPE ASSY 1

2XJ-14610-00-00

Unavailable

PROTECTOR, MUFFLER 1

2XJ-14718-00-00

Unavailable

SCREW, BINDING

98907-06010-00

$1.65

WASHER, PLATE(3MB)

90202-05187-00

$1.38

WASHER, WAVE(3RW)

90206-06090-00

$8.49

GASKET, EXHAUST PIPE

3PA-14613-10-00

$15.49

BOLT STUD 811135580000

90116-08042-00

$9.49

NUT, FLANGE (J10)

90179-08270-00

$8.49

STAY, MUFFLER 1

565-14771-01-00

$18.49

BOLT, FLANGE

95817-06012-00

$1.43

SILENCER, EXHAUST

2XJ-14753-00-00

Unavailable

GASKET, MUFFLER JOINT

1W2-14714-00-00

$33.99

CLAMP, HOSE

90460-37130-00

Unavailable

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

PIPE, OUTLET

2XJ-14752-00-00

Unavailable

GASKET, SILENCER

2XJ-14755-10-00

Unavailable

SCREW, BINDING

98907-06010-00

$1.65
