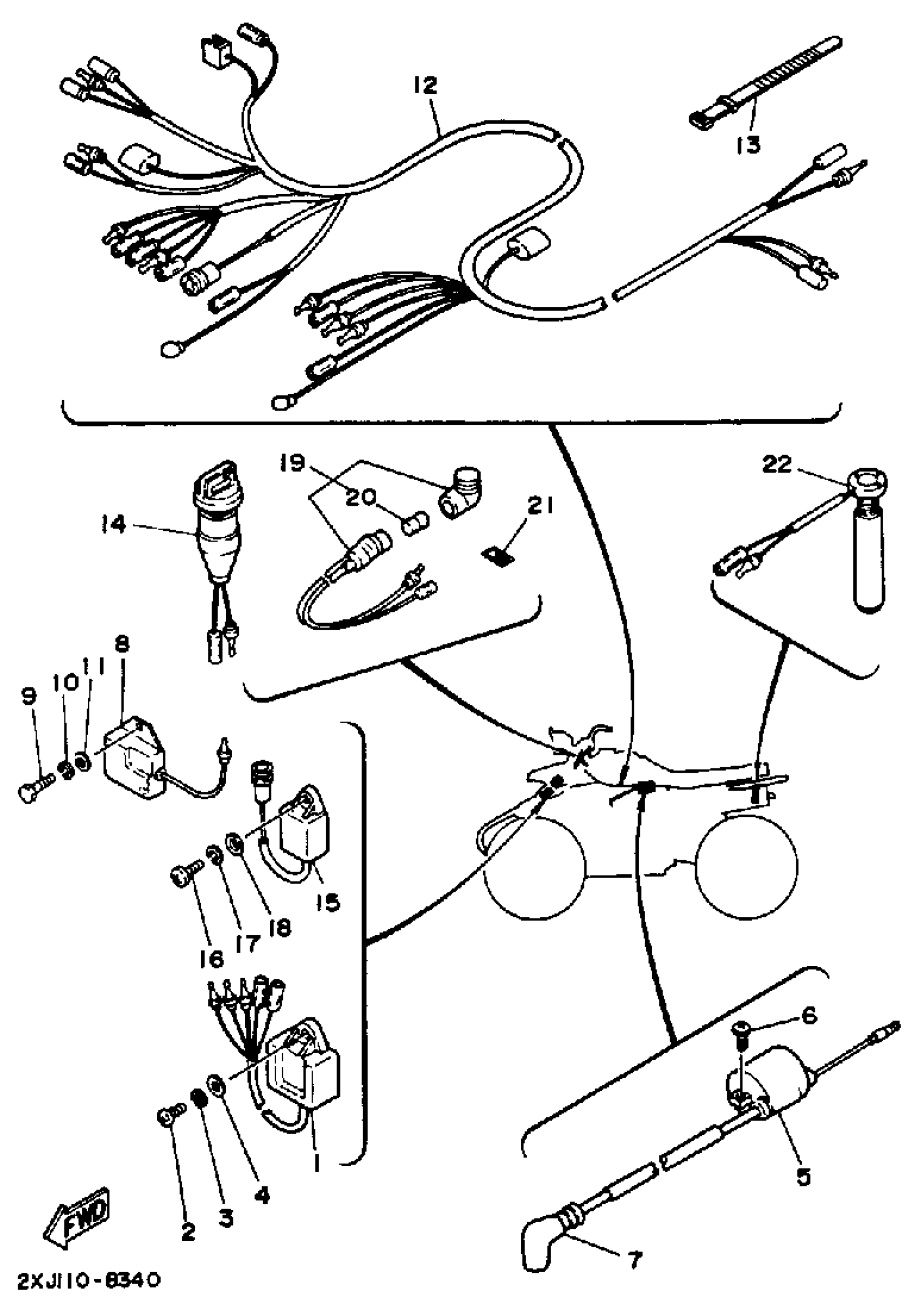

Yamaha YFS200U (BLASTER) 2XJ 1988 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSY

3FL-85540-10-00

Unavailable

2

SCREW PAN HEAD

98580-06020-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

IGNITION COIL ASSY

4RP-82310-26-00

$73.99

6

SCREW, PAN

98507-06014-00

$8.49

7

PLUG CAP ASSY

8DG-82370-00-00

$49.99

8

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$71.99

9

SCREW PAN HEAD

98580-06020-00

$8.49

10

WASHER, SPRING

92995-06100-00

Unavailable

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

WIRE HARNESS ASSEMBLY

2XJ-82590-00-00

Unavailable

13

BAND, SWITCH CORD

437-83936-11-00

$4.63

14

MAIN SWITCH ASSY

2XJ-82510-02-00

$55.99

15

CONTROL UNIT ASSEMBLY

2GU-85590-M0-00

Unavailable

16

SCREW PAN HEAD

98580-06020-00

$8.49

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER, PLAIN (646)

92990-06600-00

$2.80

19

PILOT LIGHT ASSEMBLY

3FA-83530-10-00

Unavailable

20

BULB

2XJ-83516-00-00

Unavailable

21

LABEL

4U3-83585-00-00

Unavailable

22

OIL LEVEL GAUGE ASSY

2XJ-85720-04-00

Unavailable
