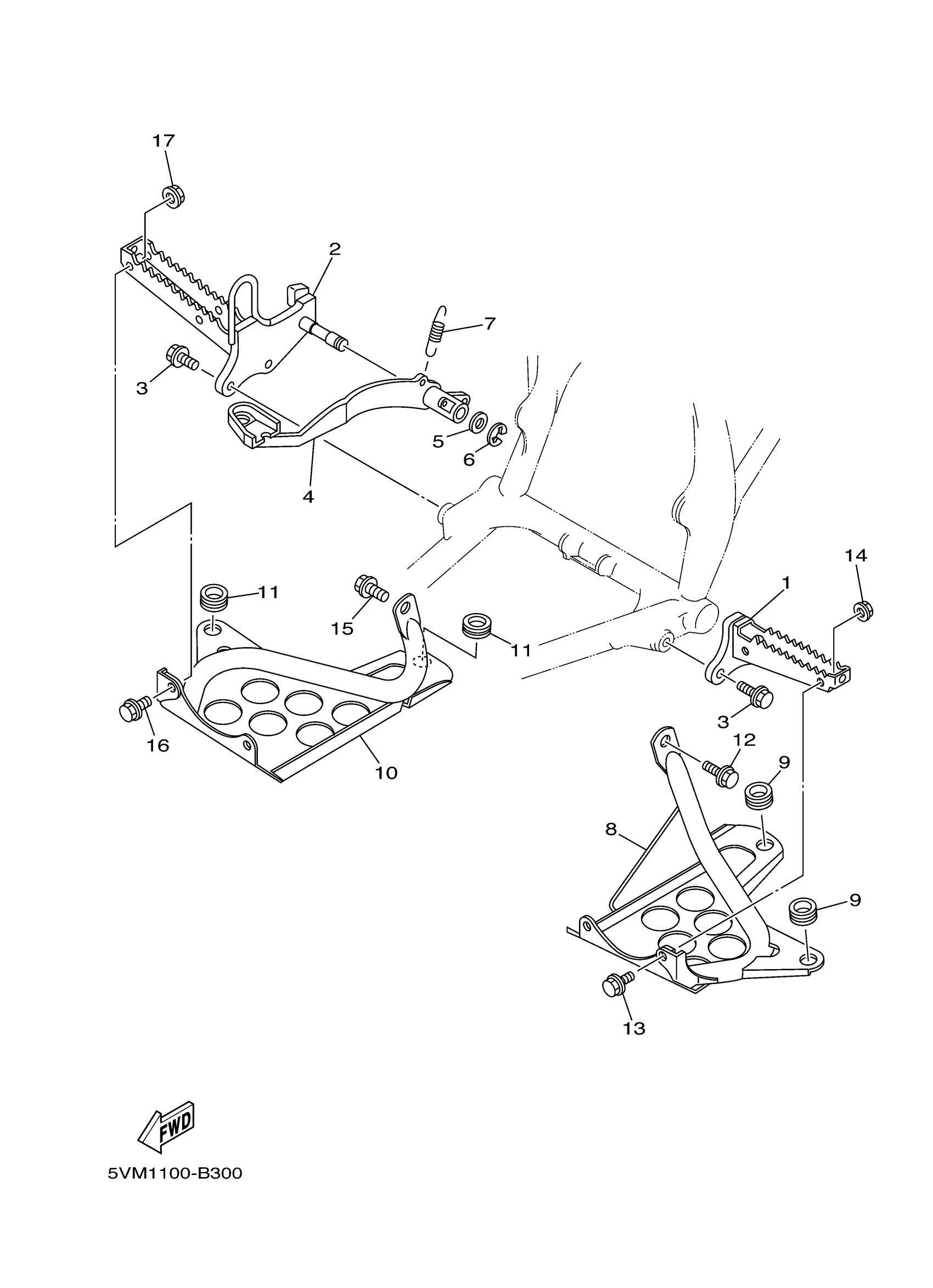

Yamaha YFS200T (BLASTER) 5VM5 2005 STAND FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

5KJ-27411-00-00

Unavailable

2

FOOTREST 2

5VM-27421-00-00

Unavailable

3

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

4

PEDAL, BRAKE

5VM-27211-10-00

$72.99

5

WASHER, PLATE (3X3)

90201-15797-00

$9.49

6

CIRCLIP (122)

93430-12008-00

$8.49

7

SPRING, TENSION(1FN)

90506-20380-00

$5.60

8

PLATE 1

3JM-27445-00-00

Unavailable

9

GROMMET

90480-18411-00

$11.49

10

PLATE 2

3JM-27446-00-00

Unavailable

11

GROMMET

90480-18411-00

$11.49

12

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

13

BOLT, BUTTON

92017-08016-00

$5.60

14

NUT, FLANGE(JN5)

95707-08500-00

$3.13

15

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

16

BOLT, BUTTON

92017-08016-00

$5.60

17

NUT, FLANGE(JN5)

95707-08500-00

$3.13
