Description

Price

1

FUEL TANK COMP.

2XJ-24110-00-00

Unavailable

2

CAP ASSY

5KM-24610-00-00

$61.99

3

FUEL COCK ASSY 1

55W-24500-10-00

$43.99

4

SEAL, COCK

3AJ-24534-01-00

$10.99

5

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

6

O-RING

4X8-24512-00-00

$8.99

7

VALVE PACKING

3AC-24523-00-00

$12.99

8

WASHER, PLATE(3MB)

90202-05187-00

$1.38

9

SCREW 256241430000

90149-06011-00

$5.60

10

GROMMET (4V1)

90480-18290-00

$8.49

11

COLLAR (29U)

90387-066H4-00

$8.49

12

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

13

GROMMET(38W)

90480-01400-00

$13.49

14

WASHER, PLATE

90201-06090-00

$5.60

15

COLLAR (1T2)

90387-07598-00

$5.60

16

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

17

HOSE (L200)

90445-10752-00

Unavailable

18

CLIP

90467-090A2-00

Unavailable

19

HOSE (L340)

90445-08013-00

Unavailable

20

DAMPER, PLATE 1

2XJ-2414H-01-00

Unavailable

21

DAMPER, PLATE 2

3JM-2414J-00-00

Unavailable

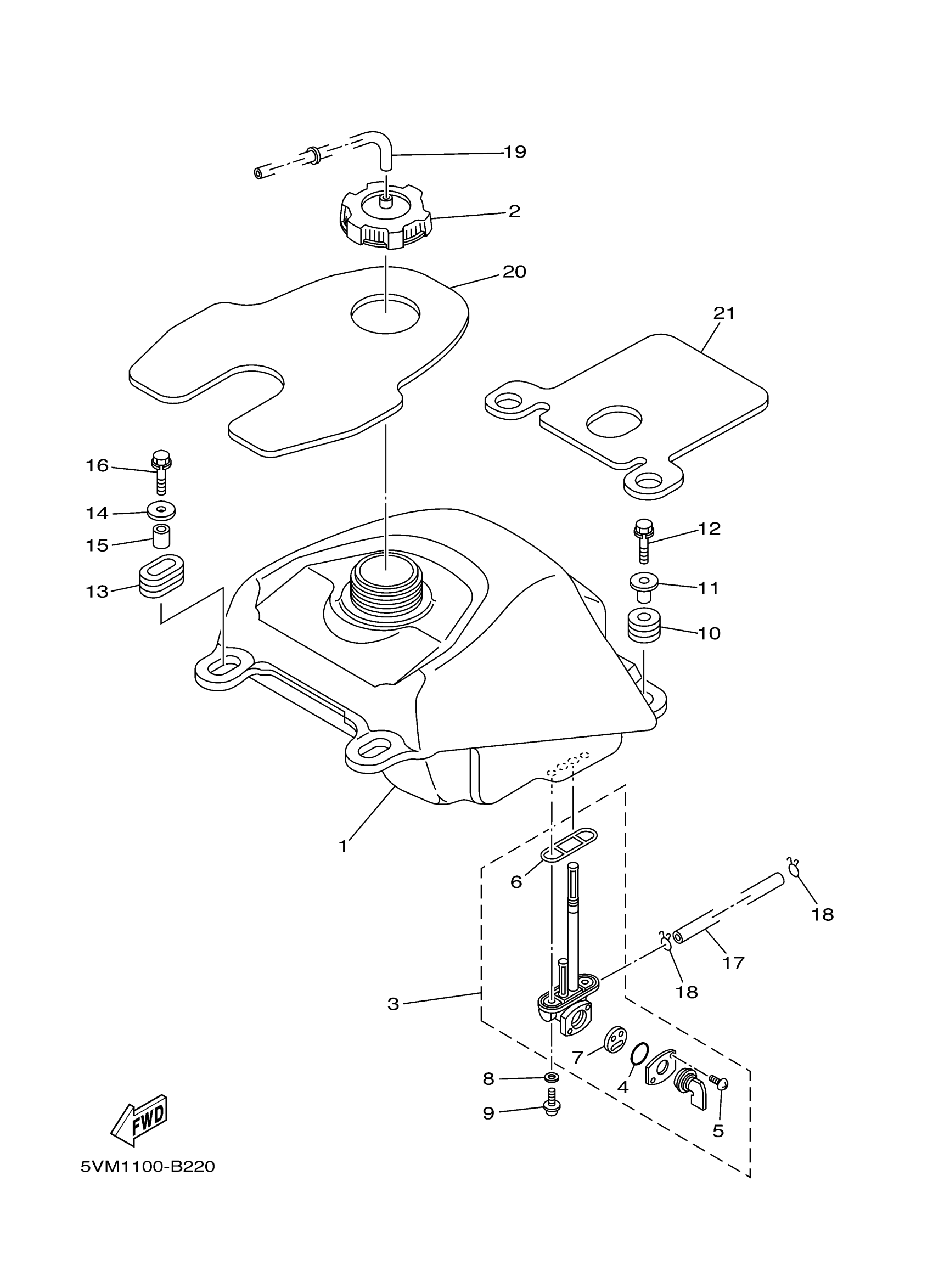

Yamaha YFS200T (BLASTER) 5VM5 2005 FUEL TANK Diagram

FUEL TANK COMP.

CAP ASSY

FUEL COCK ASSY 1

SEAL, COCK

SCREW, PAN HEAD(3AC)

O-RING

VALVE PACKING

WASHER, PLATE(3MB)

SCREW 256241430000

GROMMET (4V1)

COLLAR (29U)

BOLT, WITH WASHER (24X)

GROMMET(38W)

WASHER, PLATE

COLLAR (1T2)

BOLT, WITH WASHER (24X)

HOSE (L200)

CLIP

HOSE (L340)

DAMPER, PLATE 1

DAMPER, PLATE 2
