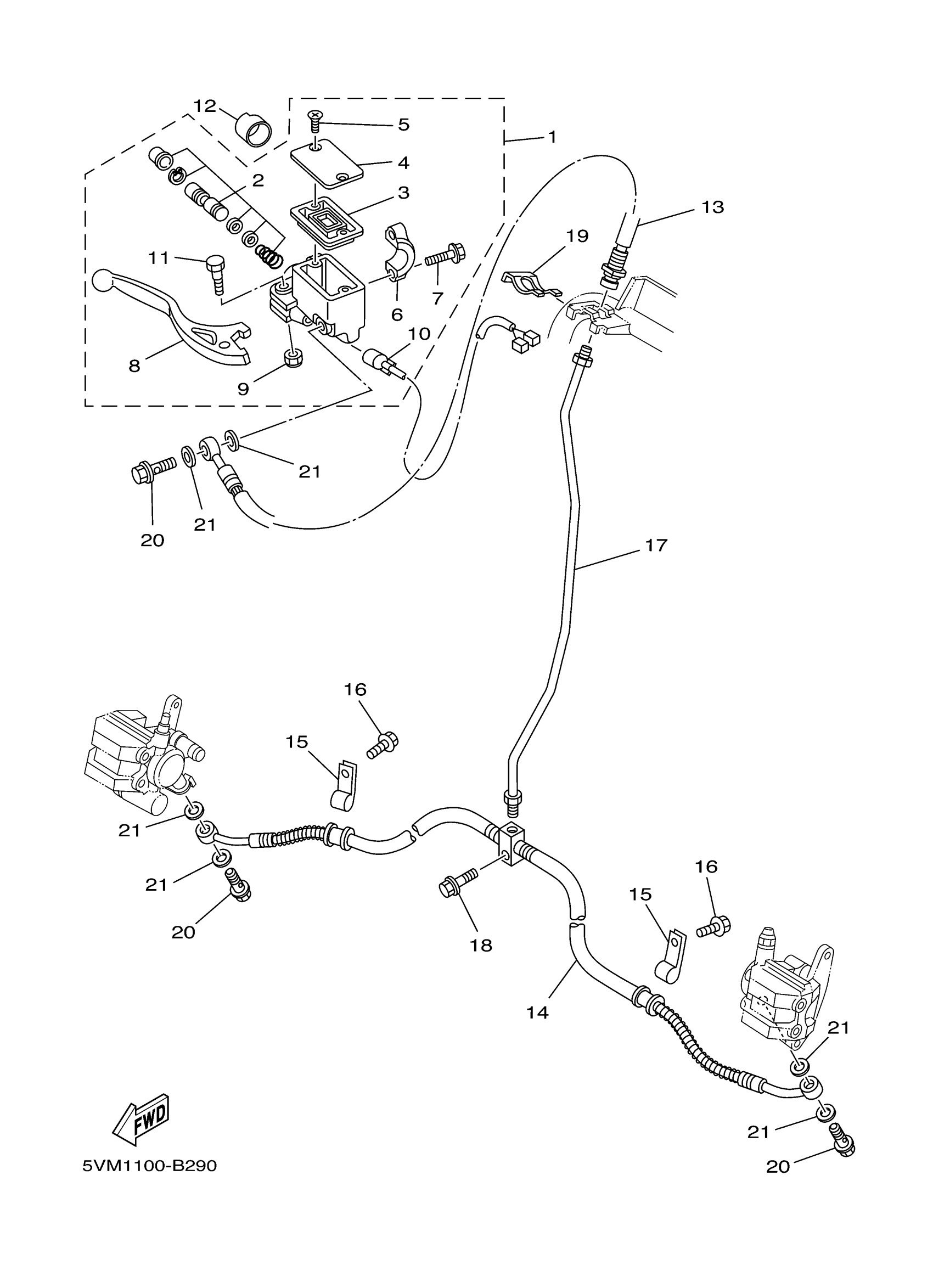

Yamaha YFS200T (BLASTER) 5VM5 2005 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER ASSY

5LP-2583T-03-00

Unavailable

CYLINDER KIT, MASTER

5LP-W0041-00-00

Unavailable

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

CAP, RESERVOIR

5LP-25852-02-00

$22.99

SCREW

3D8-2589H-10-00

$7.99

BRACKET, MASTER CYLINDER

5LP-25867-00-00

Unavailable

BOLT, FITTING

5MV-25833-00-00

$6.99

LEVER 2

5LP-83922-00-00

$38.99

NUT, U(4NK)

95604-06100-00

$8.49

FRONT STOP SWITCH ASSY

5LP-83980-00-00

$64.99

BOLT, LEVER

5MV-2589F-00-00

$6.99

COLLAR

1UY-26259-00-00

$19.49

HOSE, BRAKE 1

5VM-25872-01-00

Unavailable

HOSE, BRAKE 2

5VM-25873-00-00

Unavailable

HOLDER, BRAKE HOSE

5VM-25886-00-00

Unavailable

BOLT, FLANGE

95817-06016-00

Unavailable

PIPE, BRAKE

5VM-25871-00-00

Unavailable

BOLT, FLANGE

95817-06025-00

Unavailable

CIRCLIP

2GU-25866-00-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

Unavailable

WASHER, PLATE(481)

90201-10118-00

Unavailable
