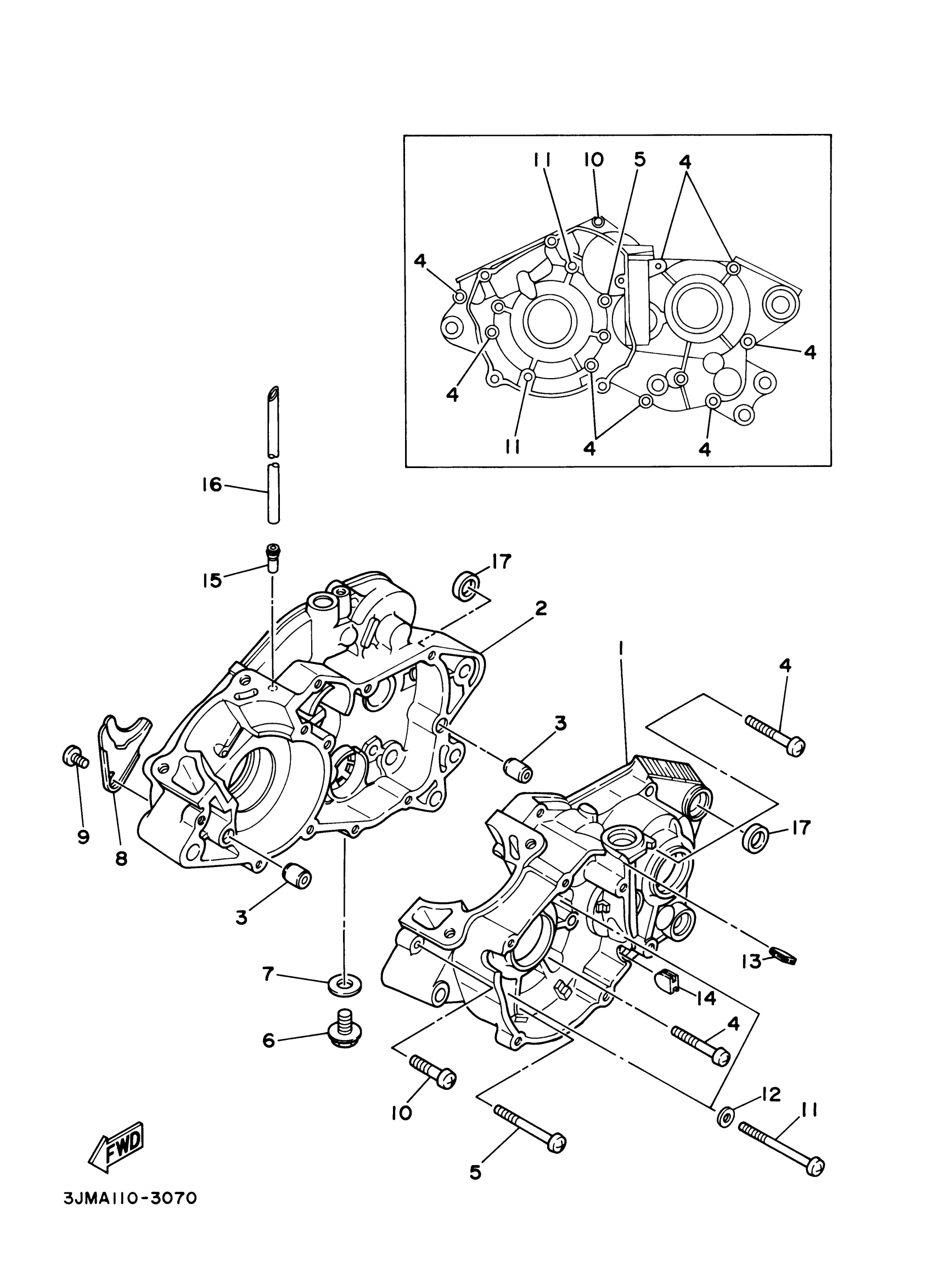

Yamaha YFS200T (BLASTER) 5VM5 2005 CRANKCASE Diagram
#
Description
Price
2
CRANKCASE 2
2XJ-15121-00-00
Unavailable
8
HOLDER
37F-15128-00-00
Unavailable
10
SCREW, PAN
98517-06030-00
Unavailable
15
. CONNECTOR, SUCTION PIPE
137-13115-01-00
Unavailable
16
HOSE (L420)
90445-092K1-00
Unavailable
17
WASHER, PLATE
90201-166L5-00
Unavailable
