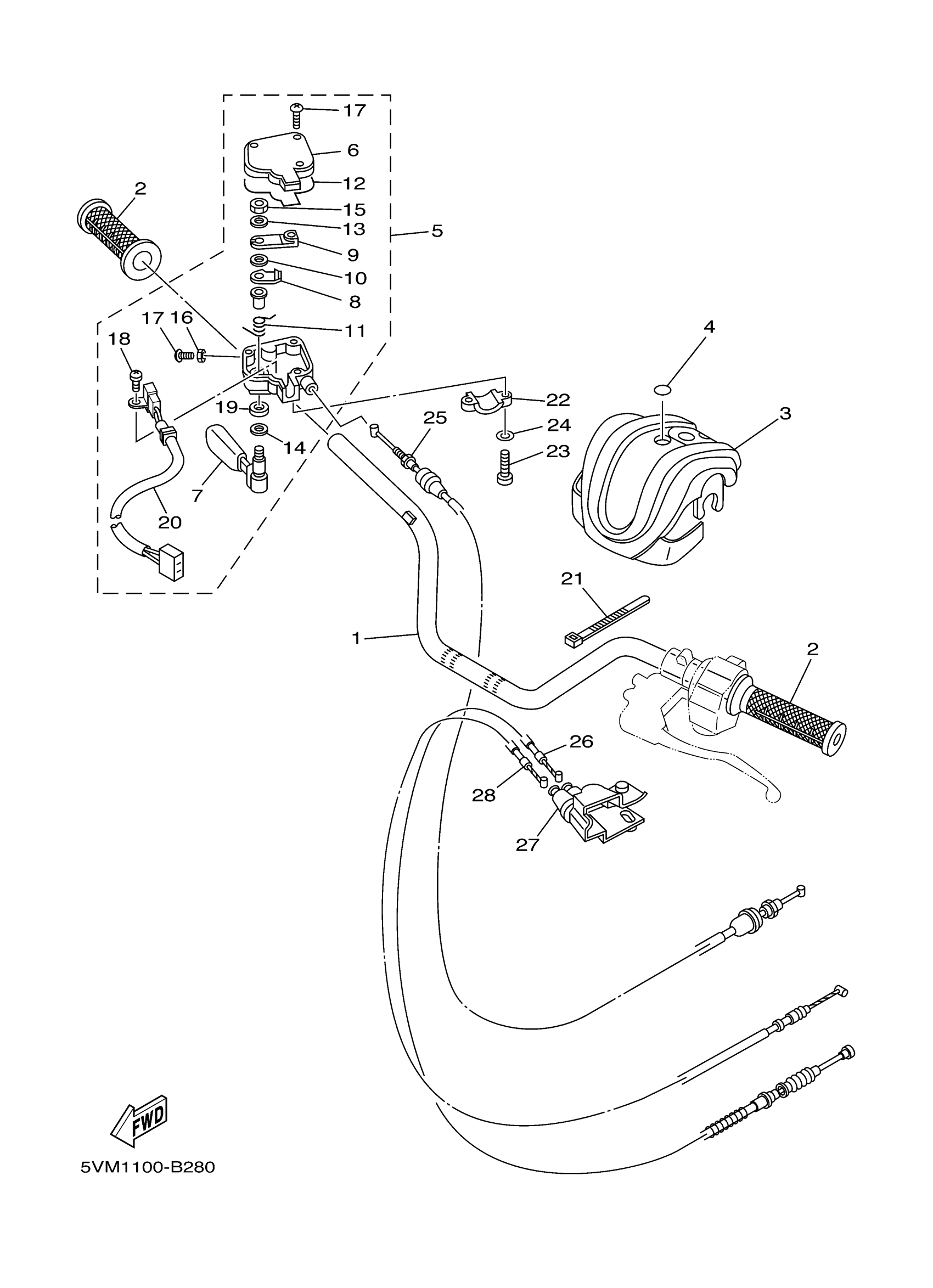

Yamaha YFS200SEV (BLASTER SE) 5VM9 2006 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5LP-26111-10-00

Unavailable

2

GRIP (LEFT)

5LP-26241-00-00

$24.99

3

PROTECTOR, HANDLEBAR

5TH-26124-50-00

Unavailable

4

TUNING FORK MARK

5GT-2836B-10-00

$16.49

5

THROTTLE LEVER ASSY

3GG-26250-10-00

Unavailable

6

. CAP, GEAR

2GU-2628F-00-00

Unavailable

7

LEVER, THROTTLE

2GU-2625G-02-00

$51.99

8

ARM, THROTTLE

2GU-2625H-00-00

$14.49

9

ARM, THROTTLE 2

2GU-2625J-00-00

$17.49

10

COLLAR

2GU-26259-00-00

Unavailable

11

SPRING

2GU-26314-00-00

Unavailable

12

GASKET

2GU-2628G-00-00

$16.49

13

WASHER

2GU-26398-00-00

$2.34

14

WASHER

1NV-26129-00-00

$6.99

15

NUT, U

95617-05100-00

$9.49

16

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

17

SCREW, PAN HEAD

98517-05020-00

Unavailable

18

SCREW, BINDING

98907-03006-00

Unavailable

19

OIL SEAL (9X15X4-256)

93104-09025-00

Unavailable

20

. SWITCH, THROTTLE

5TG-82567-00-00

Unavailable

21

BAND, SWITCH CORD

437-83936-01-00

Unavailable

22

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

23

SCREW, PAN HEAD

98517-05020-00

Unavailable

24

WASHER(3SX)

92907-05100-00

Unavailable

25

WIRE, THROTTLE 1

5VM-26311-01-00

Unavailable

26

CABLE, CLUTCH

5VM-26335-10-00

Unavailable

27

COVER, HANDLE LEVER 2

1UY-2637A-01-00

Unavailable

28

WIRE, BRAKE 1

5VM-26341-10-00

Unavailable
