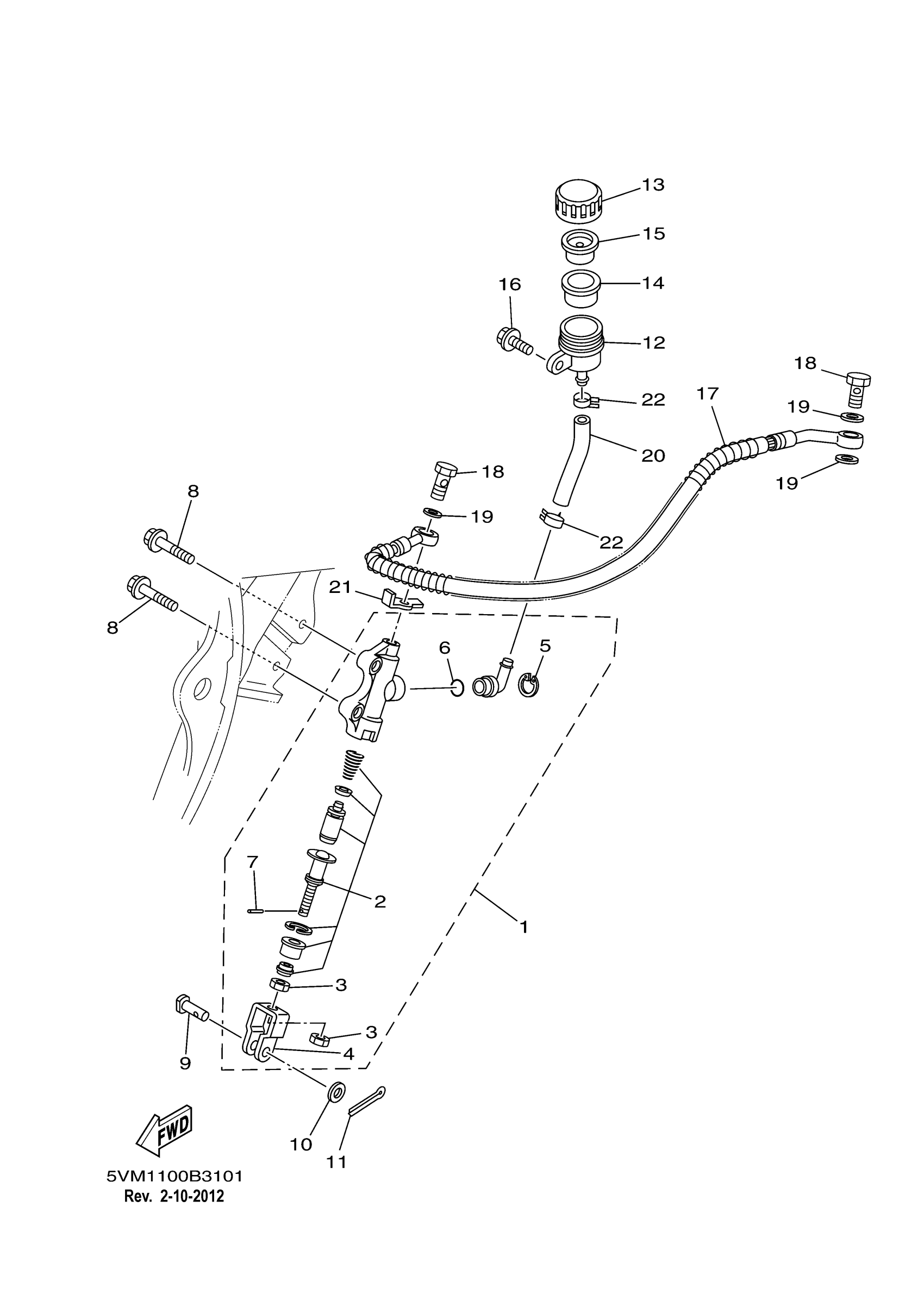

Yamaha YFS200SEV (BLASTER SE) 5VM9 2006 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

5VM-2583V-00-00

Unavailable

2

. CYLINDER KIT, MASTER

5VM-W0042-50-00

Unavailable

3

NUT

95302-08600-00

$9.49

4

JOINT

2YK-27222-00-00

$21.99

5

CIRCLIP

2VN-25866-00-00

$6.99

6

O-RING (22U)

93210-15566-00

$7.49

7

PIN, BRAKE ROD

3KW-27234-00-00

$7.99

8

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

9

PIN, CLEVIS(2YK)

90240-08124-00

$7.49

10

WASHER, PLATE 1562722600

90201-08083-00

$9.49

11

PIN, COTTER

91490-16020-00

Unavailable

12

TANK, RESERVOIR

2VN-25894-00-00

$20.99

13

CAP, RESERVOIR

4PX-25852-00-00

Unavailable

14

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$24.99

15

BUSH,DIAPHRAGM

2VN-25855-00-00

$10.99

16

BOLT, FLANGE

95817-06016-00

Unavailable

17

HOSE, BRAKE

5VM-25874-00-00

Unavailable

18

BOLT, UNION(3GM)

90401-10159-00

Unavailable

19

WASHER, PLATE(481)

90201-10118-00

Unavailable

20

HOSE, RESERVOIR

5VM-25895-00-00

Unavailable

21

WASHER, LOCK

5LP-25844-00-00

Unavailable

22

CLIP (7K7)

90467-11044-00

Unavailable
