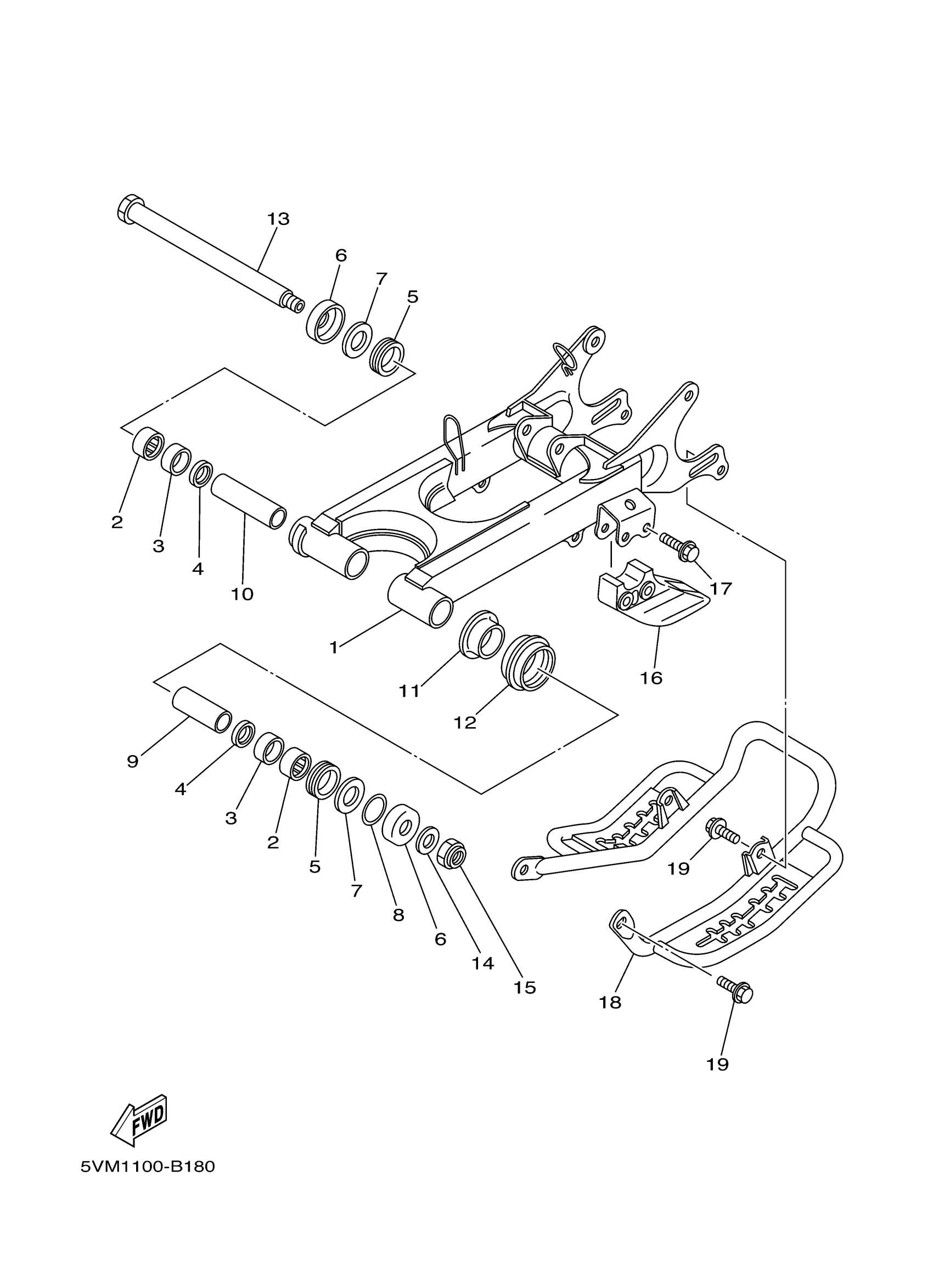

Yamaha YFS200SEV (BLASTER SE) 5VM9 2006 REAR ARM Diagram

REAR ARM COMP.

5VM-22110-20-00

Unavailable

BEARING, CYLINDRICAL (23X)

93317-32231-00

$44.99

BUSH, SOLID (23X)

90380-22111-00

$19.99

OIL SEAL (23X)

93106-22019-00

$11.49

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

COVER, THRUST

2K6-22128-01-00

$31.99

WASHER, PLATE(2VM)

90201-247L2-00

$10.49

SHIM (0.3T)

156-22127-00-00

Unavailable

BUSH 1

2XJ-22123-00-00

Unavailable

BUSH 2

2XJ-22124-00-00

$30.99

PIPE

2GU-22155-00-00

$21.99

SEAL, GUARD

2GU-22151-10-00

$17.49

SHAFT, PIVOT

2JN-22141-00-00

Unavailable

WASHER PLATE 148272190000

90201-14215-00

$10.49

NUT, SELF-LOCKING (1J7)

90185-14070-00

$13.49

SUPPORT, CHAIN

38W-22199-00-00

Unavailable

BOLT, FLANGE

95817-08040-00

Unavailable

COVER

2XJ-2219X-00-00

Unavailable

BOLT, FLANGE

95817-08012-00

Unavailable
