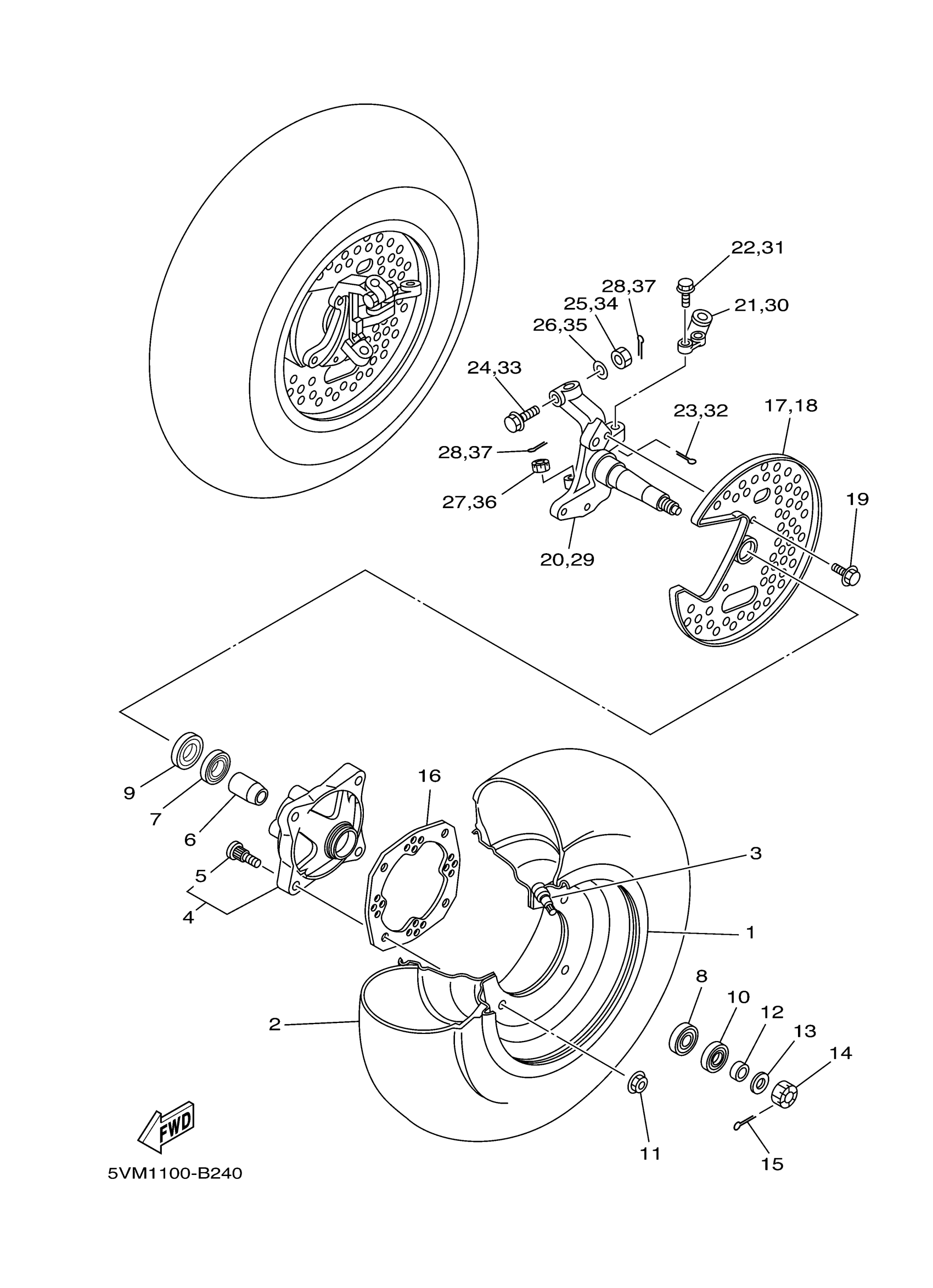

Yamaha YFS200SEV (BLASTER SE) 5VM9 2006 FRONT WHEEL Diagram
#
1
WHEEL COMP.
2XJ-25180-00-98
Unavailable
2
AT21X7-R10 DUN KT351A
94107-100X3-00
Unavailable
2
AT21X7-R10 DUN KT351A
94107-100X3-00
Unavailable
4
HUB, FRONT
3GD-25111-01-98
Unavailable
14
NUT, CASTLE(2UJ)
90171-14056-00
Unavailable
15
PIN, COTTER
91401-30025-00
Unavailable
16
COVER, PLATE
3GD-25127-10-00
Unavailable
17
RING, WHEEL 1
3GD-2514A-10-00
Unavailable
18
RING, WHEEL 2
3GD-2515A-10-00
Unavailable
19
BOLT, FLANGE
95817-06010-00
Unavailable
20
KNUCKLE, STEERING 1
5VM-23511-00-00
Unavailable
21
ARM, KNUCKLE 1
2XJ-23512-01-00
Unavailable
22
BOLT, FLANGE
90105-10507-00
Unavailable
23
PIN, COTTER
91490-20025-00
Unavailable
24
BOLT, FLANGE (2XJ)
90105-10549-00
Unavailable
25
NUT(6TD)
95337-10600-00
Unavailable
26
WASHER (7A9)
90201-100F7-00
Unavailable
27
NUT, CASTLE
90171-10001-00
Unavailable
28
PIN, COTTER
91490-20025-00
Unavailable
29
KNUCKLE, STEERING 2
5VM-23521-00-00
Unavailable
30
ARM, KNUCKLE 2
2XJ-23522-01-00
Unavailable
31
BOLT, FLANGE
90105-10507-00
Unavailable
32
PIN, COTTER
91490-20025-00
Unavailable
33
BOLT, FLANGE (2XJ)
90105-10549-00
Unavailable
34
NUT(6TD)
95337-10600-00
Unavailable
35
WASHER (7A9)
90201-100F7-00
Unavailable
36
NUT, CASTLE
90171-10001-00
Unavailable
37
PIN, COTTER
91490-20025-00
Unavailable
