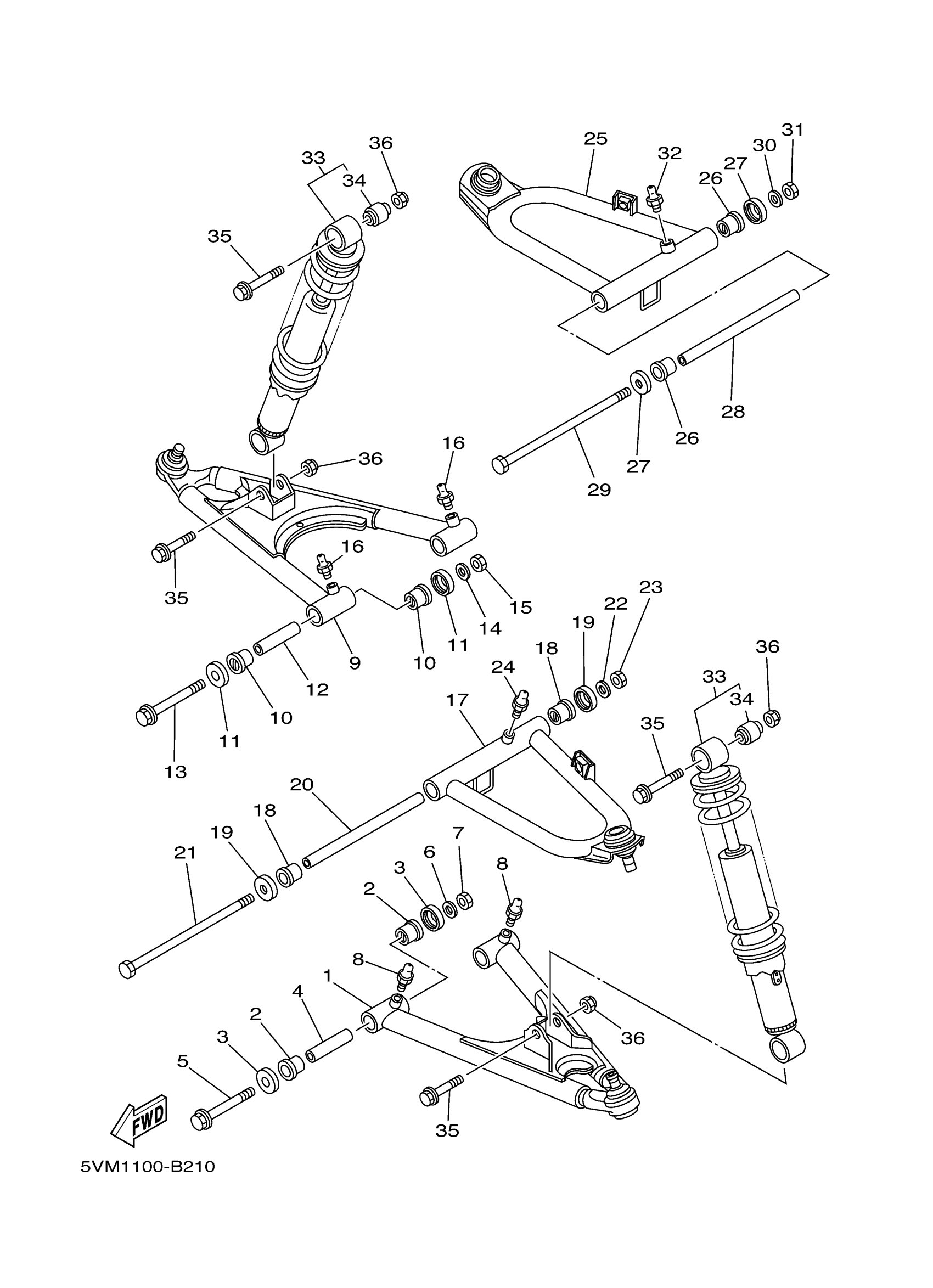

Yamaha YFS200SEV (BLASTER SE) 5VM9 2006 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT LOWER ARM COMP. (LEFT)

3JM-23570-00-P2

Unavailable

2

BUSH, SOLID(3GG)

90381-15088-00

$19.20

3

COVER, THRUST 1

1UY-23517-01-00

$6.08

4

COLLAR(1UY)

90387-101R3-00

$16.39

5

BOLT, WASHER BASED

90105-10034-00

$9.27

6

WASHER (7A9)

90201-100F7-00

$6.08

7

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$5.73

8

NIPPLE, GREASE

93700-06M03-00

$6.77

9

FRONT LOWER ARM COMP. (RIGHT)

3JM-23580-00-P2

Unavailable

10

BUSH, SOLID(3GG)

90381-15088-00

$19.20

11

COVER, THRUST 1

1UY-23517-01-00

$6.08

12

COLLAR(1UY)

90387-101R3-00

$16.39

13

BOLT, WASHER BASED

90105-10034-00

$9.27

14

WASHER (7A9)

90201-100F7-00

$6.08

15

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$5.73

16

NIPPLE, GREASE

93700-06M03-00

$6.77

17

FRONT UPPER ARM COMP. (LEFT)

5VM-23540-20-00

Unavailable

18

BUSH, SOLID(3GG)

90381-15088-00

$19.20

19

COVER, THRUST 1

1UY-23517-01-00

$6.08

20

COLLAR

90387-101U6-00

Unavailable

21

SHAFT, PIVOT

336-22141-00-00

Unavailable

22

WASHER (7A9)

90201-100F7-00

$6.08

23

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$5.73

24

NIPPLE, GREASE

93700-06M03-00

$6.77

25

FRONT UPPER ARM COMP. (RIGHT)

5VM-23550-20-00

Unavailable

26

BUSH, SOLID(3GG)

90381-15088-00

$19.20

27

COVER, THRUST 1

1UY-23517-01-00

$6.08

28

COLLAR

90387-101U6-00

Unavailable

29

SHAFT, PIVOT

336-22141-00-00

Unavailable

30

WASHER (7A9)

90201-100F7-00

$6.08

31

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$5.73

32

NIPPLE, GREASE

93700-06M03-00

$6.77

33

SHOCK ABSORBER ASSY

2XJ-23350-20-33

Unavailable

34

. DAMPER, BUSH B

2XJ-2331R-00-00

Unavailable

35

BOLT, WASHER BASED(59V)

90105-10388-00

Unavailable

36

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$5.73
