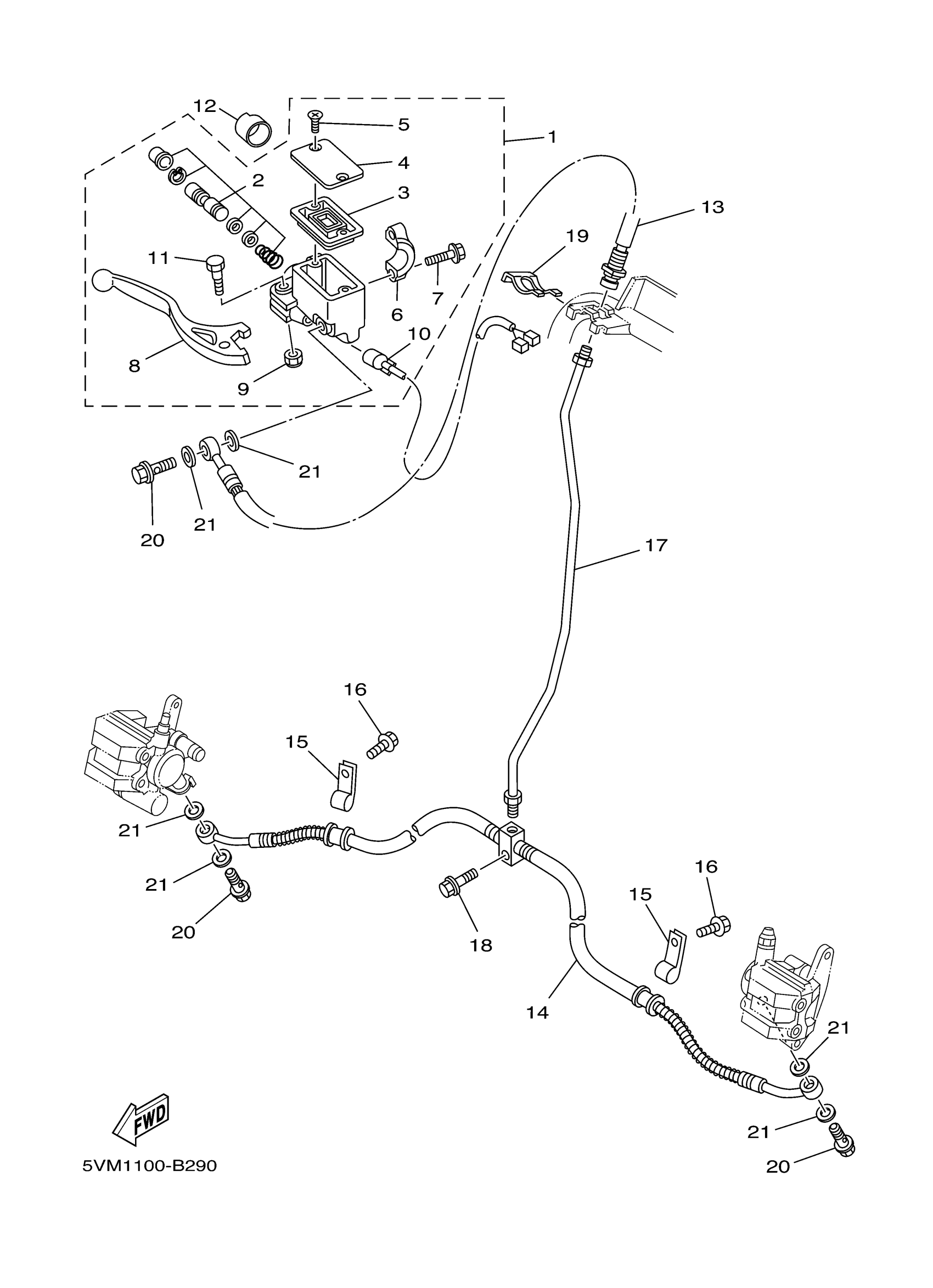

Yamaha YFS200SEV (BLASTER SE) 5VM9 2006 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

5LP-2583T-03-00

Unavailable

2

CYLINDER KIT, MASTER

5LP-W0041-00-00

Unavailable

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$20.32

4

CAP, RESERVOIR

5LP-25852-02-00

$18.82

5

SCREW

3D8-2589H-10-00

$6.03

6

BRACKET, MASTER CYLINDER

5LP-25867-00-00

Unavailable

7

BOLT, FITTING

5MV-25833-00-00

$5.37

8

LEVER 2

5LP-83922-00-00

$31.85

9

NUT, U(4NK)

95604-06100-00

$6.22

10

FRONT STOP SWITCH ASSY

5LP-83980-00-00

$52.60

11

BOLT, LEVER

5MV-2589F-00-00

$5.03

12

COLLAR

1UY-26259-00-00

$16.16

13

HOSE, BRAKE 1

5VM-25872-01-00

Unavailable

14

HOSE, BRAKE 2

5VM-25873-00-00

Unavailable

15

HOLDER, BRAKE HOSE

5VM-25886-00-00

Unavailable

16

BOLT, FLANGE

95817-06016-00

Unavailable

17

PIPE, BRAKE

5VM-25871-00-00

Unavailable

18

BOLT, FLANGE

95817-06025-00

Unavailable

19

CIRCLIP

2GU-25866-00-00

Unavailable

20

BOLT, UNION(3GM)

90401-10159-00

Unavailable

21

WASHER, PLATE(481)

90201-10118-00

Unavailable
