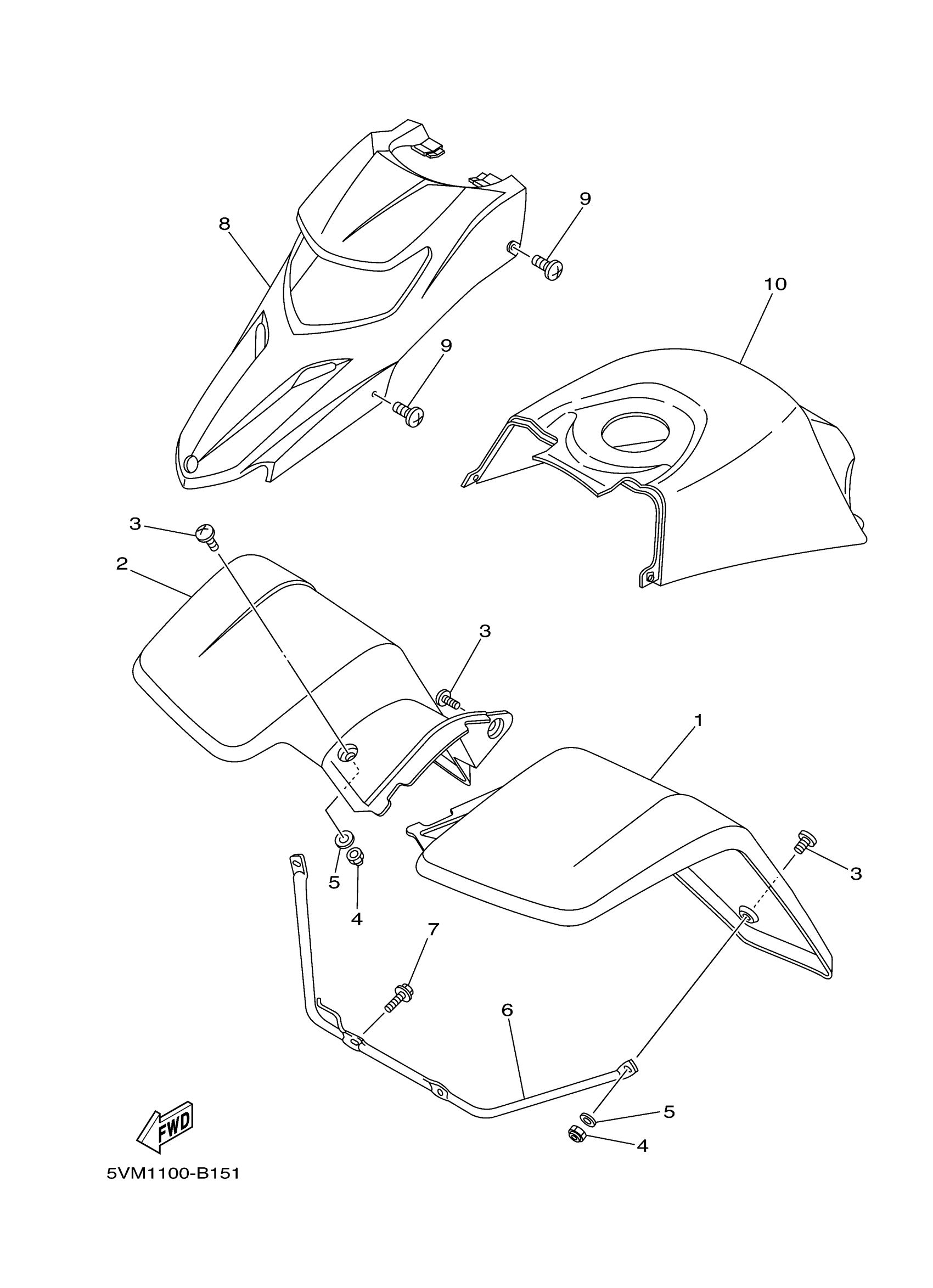

Yamaha YFS200SEV (BLASTER SE) 5VM9 2006 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

2XJ-W2151-E1-00

Unavailable

2

FENDER, FRONT 2

2XJ-21556-E0-00

Unavailable

3

SCREW(3JM)

90149-06306-00

$2.76

4

NUT, SELF-LOCKING

95617-06100-00

$2.17

5

WASHER(6TA)

92907-06200-00

$5.76

6

STAY, FENDER 1

2XJ-21513-01-00

Unavailable

7

BOLT, FLANGE

95817-06012-00

$1.40

8

PANEL, FRONT

5VM-23391-40-00

Unavailable

9

SCREW, BINDING (8G6)

90154-05002-00

$6.57

10

COVER, TOP

2XJ-2171A-F0-00

Unavailable
