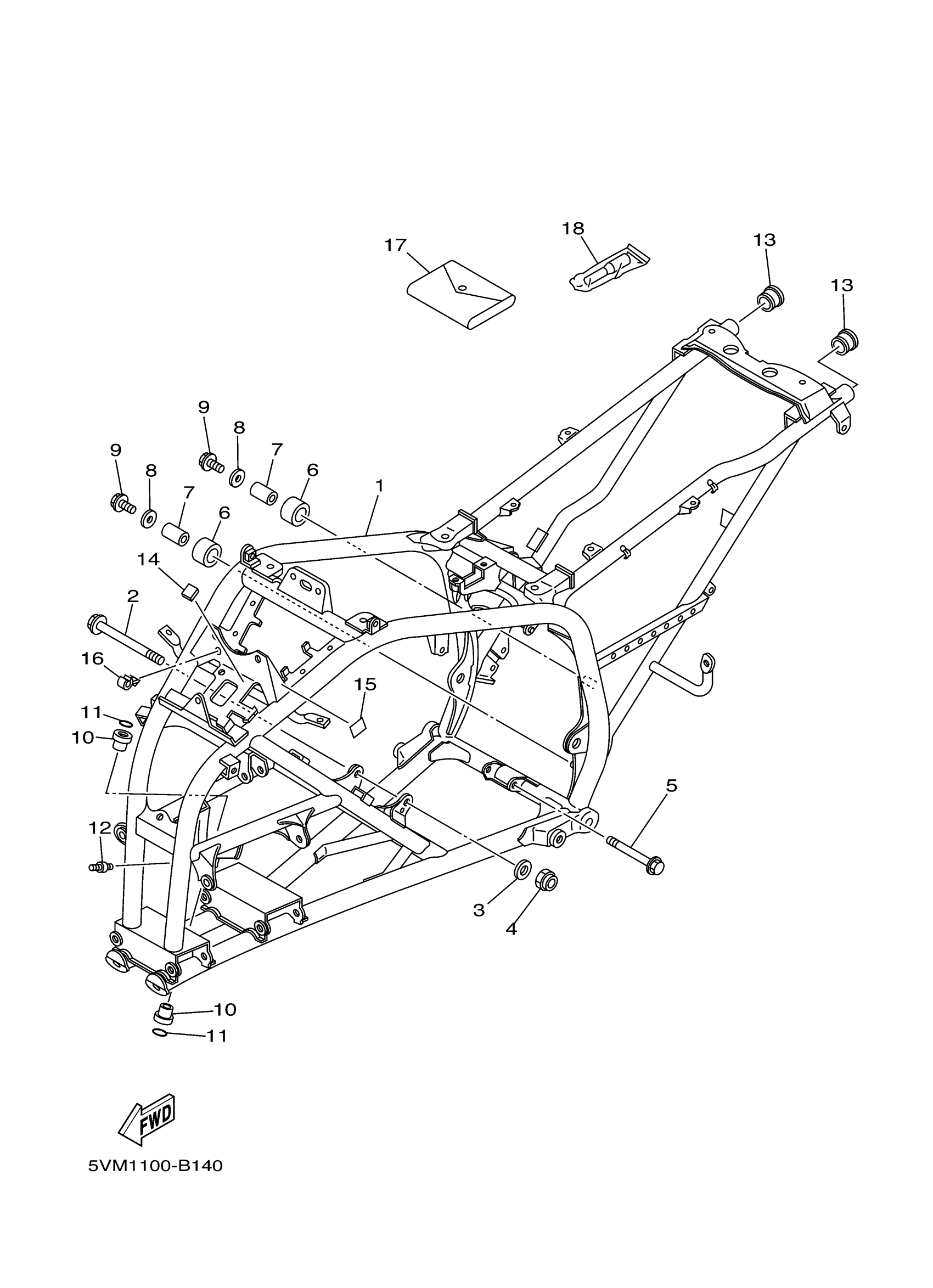

Yamaha YFS200S (BLASTER) 5VM3 2004 FRAME Diagram

#

Description
Price

1

FRAME COMP.

5VM-21110-10-00

Unavailable

1

FRAME COMP.

5VM-21110-20-00

Unavailable

2

BOLT, WASHER BASED(8AB)

90105-10712-00

$17.99

3

WASHER, PLATE (3L6)

90201-10774-00

$9.49

4

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

5

BOLT, WASHER BASED(4JG)

90105-08721-00

$4.46

6

TENSIONER

30X-22178-00-00

$35.99

7

BUSH

4V4-22184-00-00

$4.47

8

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

9

BOLT, FLANGE

95817-08012-00

$5.49

10

BUSH, SOLID (J22)

90381-15040-00

$29.99

11

O-RING (22U)

93210-15566-00

$7.49

12

NIPPLE, GREASE

93700-06M03-00

Unavailable

13

PLUG(1FN)

90338-23172-00

$12.49

14

SEAL

7RB-14997-00-00

$0.47

15

SEAL 1

3SP-21732-00-00

Unavailable

16

CLAMP (26H)

90464-08051-00

Unavailable

17

TOOL KIT

2XJ-28100-00-00

Unavailable

18

GAUGE, AIR

1NV-2811A-01-00

Unavailable
