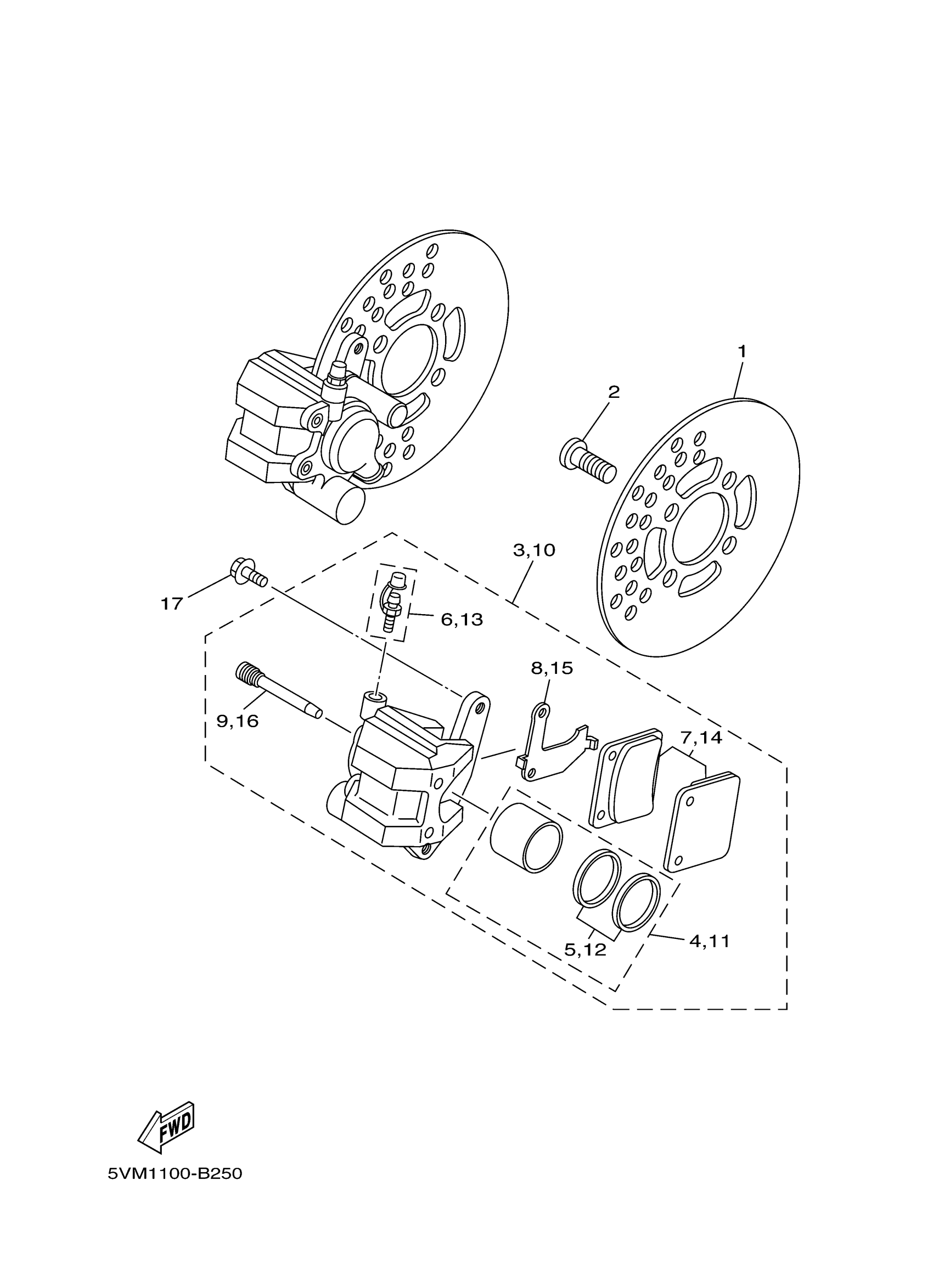

Yamaha YFS200R (BLASTER) 5VM1 2003 FRONT BRAKE CALIPER Diagram

Description

Price

DISC, BRAKE (LEFT)

3GD-2582T-10-00

$202.99

BOLT

90109-08087-00

$8.49

CALIPER ASSY (LEFT)

3GD-2580T-01-00

$298.99

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

BRAKE PAD KIT

3GD-W0045-01-00

$35.99

SHIM, CALIPER

3GD-25827-00-00

Unavailable

PIN, PAD

3GD-25933-00-00

$28.99

CALIPER ASSY (RIGHT)

3GD-2580U-01-00
