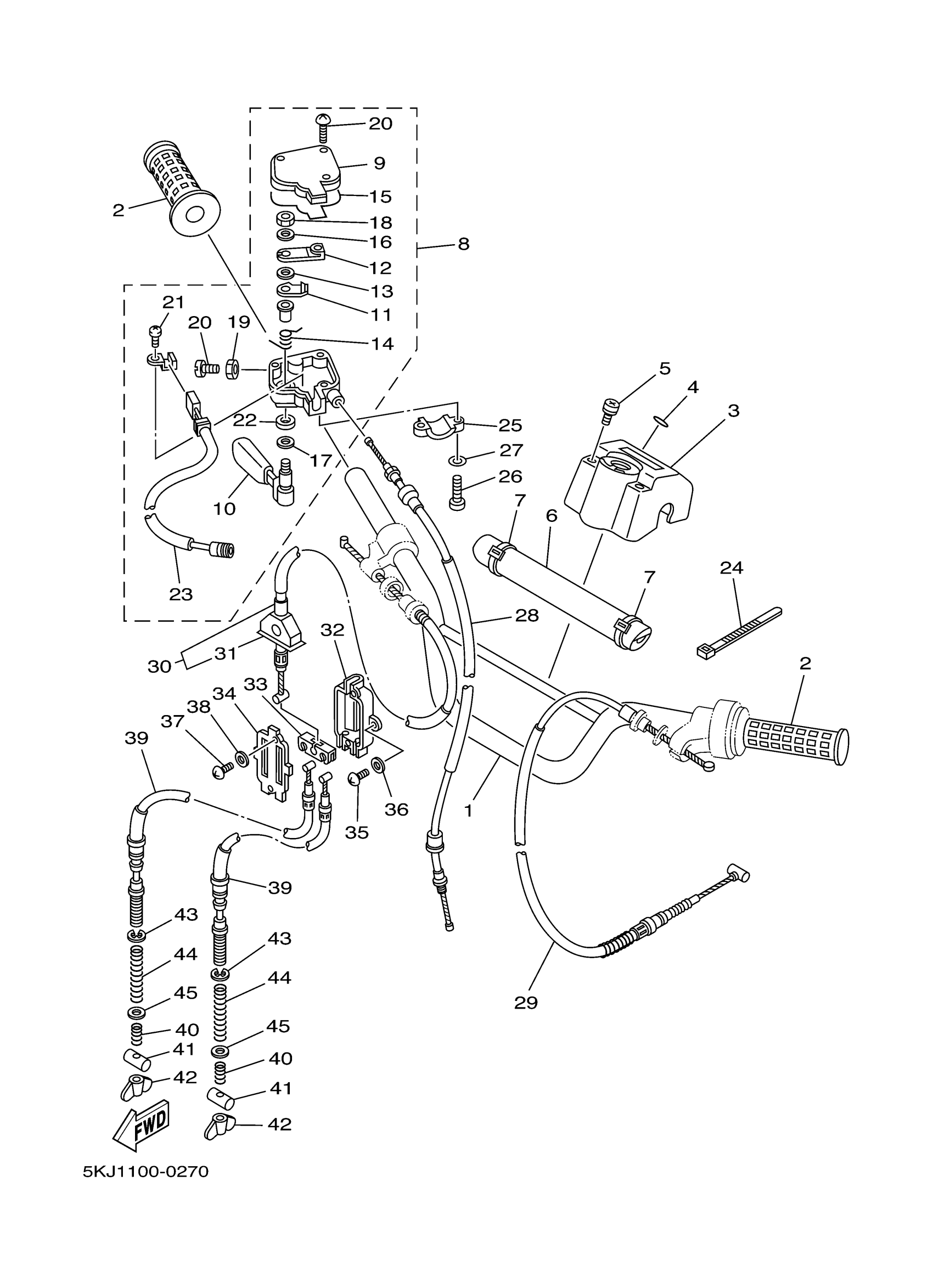

Yamaha YFS200N (BLASTER) 5KJ4 2001 STEERING HANDLE CABLE Diagram
#
1
HANDLEBAR
2GU-26111-00-00
Unavailable
6
PROTECTOR 1
3GD-2622K-00-00
Unavailable
8
THROTTLE LEVER ASSY
3GG-26250-00-00
Unavailable
9
. CAP, GEAR
2GU-2628F-00-00
Unavailable
13
COLLAR
2GU-26259-00-00
Unavailable
14
SPRING
2GU-26314-00-00
Unavailable
16
WASHER
2GU-26398-00-00
Unavailable
17
WASHER
1NV-26129-00-00
Unavailable
18
NUT, U
95617-05100-00
Unavailable
19
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
20
SCREW, PAN HEAD
98517-05020-00
Unavailable
21
SCREW, BINDING
98907-03006-00
Unavailable
22
OIL SEAL (9X15X4-256)
93104-09025-00
Unavailable
23
SWITCH, THROTTLE
3GG-82567-00-00
Unavailable
25
HOLDER, LEVER LOWER
4V4-82913-00-00
Unavailable
26
SCREW, PAN HEAD
98517-05020-00
Unavailable
27
WASHER(3SX)
92907-05100-00
Unavailable
28
WIRE, THROTTLE 1
2XJ-26311-02-00
Unavailable
29
CABLE, CLUTCH
2XJ-26335-01-00
Unavailable
30
CABLE, BRAKE 4
4BD-26373-01-00
Unavailable
31
. BOOT
52H-26362-00-00
Unavailable
32
HOUSING, BRAKE LINK
52H-26371-00-00
Unavailable
33
JOINT, CABLE
52H-26347-01-00
Unavailable
34
PLATE
52H-2631G-00-00
Unavailable
35
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
36
WASHER(1RW)
92907-05600-00
Unavailable
37
SCREW, PAN HEAD(3AC)
98517-03008-00
Unavailable
38
WASHER(3SX)
92907-03600-00
Unavailable
39
CABLE, BRAKE
2XJ-26361-01-00
Unavailable
40
SPRING, COMPRESSION (29U)
90501-10782-00
Unavailable
41
PIN 1562723700
90249-12008-00
Unavailable
42
NUT, WING (1K5)
90175-06013-00
Unavailable
43
CIRCLIP(53L)
99001-06600-00
Unavailable
44
SPRING, COMPRESSION(52H)
90501-123A0-00
Unavailable
45
WASHER(52H)
90209-06265-00
Unavailable
