Description

Price

1

FENDER,REAR COMP. (RW)

2XJ-W2161-N1-00

Unavailable

1

REAR FENDER COMP. (DEEP PURPLISH BLUE SOLID E)

2XJ-W2161-R1-00

Unavailable

2

FLAP

3JM-21621-00-00

$94.99

3

SCREW, BINDING (8J0)

90154-05005-00

$4.73

4

WASHER, PLAIN LARGE

92907-05200-00

$4.46

5

NUT, U

95617-05100-00

$9.49

6

BOLT, WITH WASHER

90119-06152-00

$7.49

7

SCREW(3JM)

90149-06306-00

$8.49

8

SCREW, ROUND HEAD(3JM)

90150-06037-00

$9.49

9

NUT, SELF-LOCKING

95617-06100-00

$8.49

10

WASHER(6TA)

92907-06200-00

$8.49

11

BAND, BATTERY

2T4-82131-00-00

$8.99

12

O-RING(2HT)

93210-61750-00

$8.49

13

STAY, FENDER 2

2XJ-21614-00-00

Unavailable

14

BOLT, BUTTON HEAD

92017-08012-00

$8.49

15

FLAP

3JM-21691-00-00

Unavailable

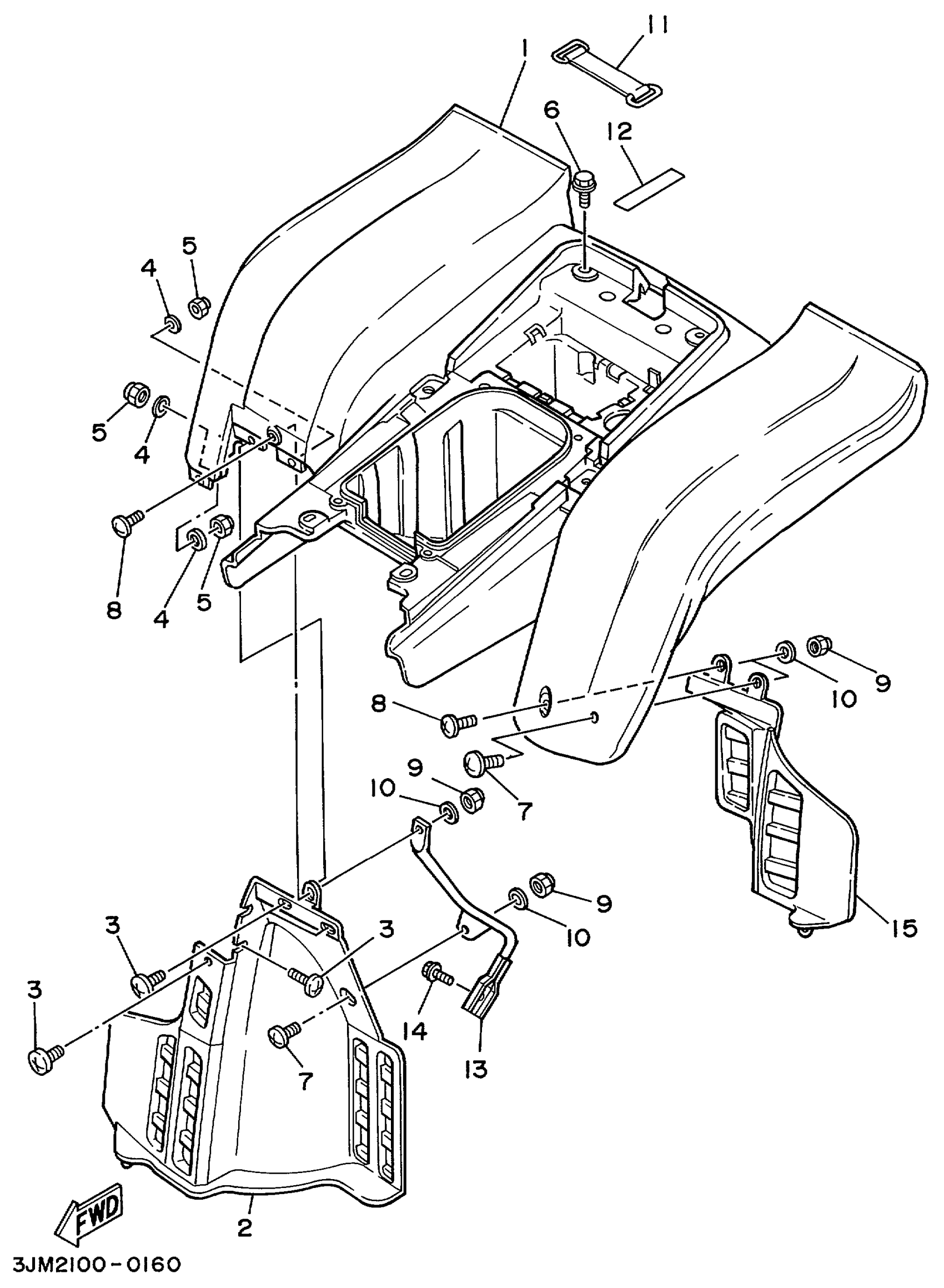

Yamaha YFS200L (BLASTER) 3JMV 1999 REAR FENDER Diagram

FENDER,REAR COMP. (RW)

REAR FENDER COMP. (DEEP PURPLISH BLUE SOLID E)

FLAP

SCREW, BINDING (8J0)

WASHER, PLAIN LARGE

NUT, U

BOLT, WITH WASHER

SCREW(3JM)

SCREW, ROUND HEAD(3JM)

NUT, SELF-LOCKING

WASHER(6TA)

BAND, BATTERY

O-RING(2HT)

STAY, FENDER 2

BOLT, BUTTON HEAD

FLAP
