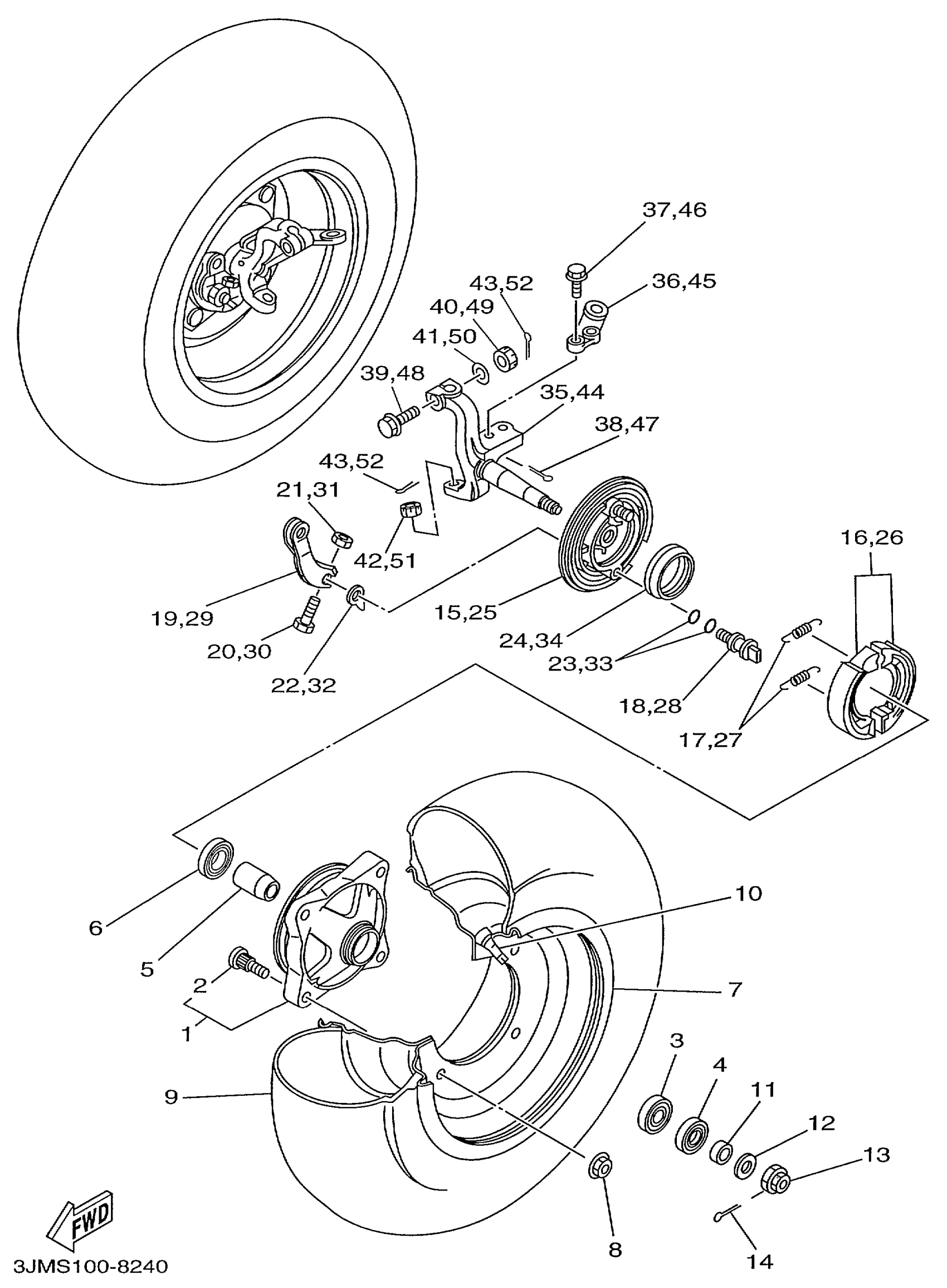

Yamaha YFS200L (BLASTER) 3JMV 1999 FRONT WHEEL Diagram
#
1
HUB, FRONT
2XJ-25111-00-00
Unavailable
7
WHEEL COMP.
2XJ-25180-00-35
Unavailable
9
AT21X7-R10 DUN KT351A
94107-100X3-00
Unavailable
9
AT21X7-R10 DUN KT351A
94107-100X3-00
Unavailable
15
PLATE, BRAKE SHOE
2XJ-25121-00-00
Unavailable
16
BRAKE SHOE KIT
4BE-W253E-00-00
Unavailable
17
SPRING, TENSION
90506-15260-00
Unavailable
18
CAMSHAFT
5G3-25351-02-00
Unavailable
19
LEVER, CAMSHAFT 1
52H-25155-00-00
Unavailable
20
BOLT, HEXAGON (538)
90101-06278-00
Unavailable
21
NUT(6TA)
95317-06600-00
Unavailable
22
PLATE, INDICATOR
52H-2513A-00-00
Unavailable
23
O-RING(3LD)
93210-12790-00
Unavailable
24
OIL SEAL
93105-49023-00
Unavailable
25
PLATE, BRAKE SHOE 2
2XJ-25169-00-00
Unavailable
26
BRAKE SHOE KIT
4BE-W253E-00-00
Unavailable
27
SPRING, TENSION
90506-15260-00
Unavailable
28
CAMSHAFT
5G3-25351-02-00
Unavailable
29
LEVER, CAMSHAFT 2
52H-25156-00-00
Unavailable
30
BOLT, HEXAGON (538)
90101-06278-00
Unavailable
31
NUT(6TA)
95317-06600-00
Unavailable
32
PLATE, INDICATOR
52H-2513A-00-00
Unavailable
33
O-RING(3LD)
93210-12790-00
Unavailable
34
OIL SEAL
93105-49023-00
Unavailable
35
KNUCKLE, STEERING 1
3JM-23511-01-00
Unavailable
36
ARM, KNUCKLE 1
2XJ-23512-01-00
Unavailable
37
BOLT, FLANGE
90105-10507-00
Unavailable
38
PIN, COTTER
91490-20025-00
Unavailable
39
BOLT, FLANGE (2XJ)
90105-10549-00
Unavailable
40
NUT(6TD)
95337-10600-00
Unavailable
41
WASHER (7A9)
90201-100F7-00
Unavailable
42
NUT, CASTLE
90171-10001-00
Unavailable
43
PIN, COTTER
91490-20025-00
Unavailable
44
KNUCKLE, STEERING 2
3JM-23521-01-00
Unavailable
45
ARM, KNUCKLE 2
2XJ-23522-01-00
Unavailable
46
BOLT, FLANGE
90105-10507-00
Unavailable
47
PIN, COTTER
91490-20025-00
Unavailable
48
BOLT, FLANGE (2XJ)
90105-10549-00
Unavailable
49
NUT(6TD)
95337-10600-00
Unavailable
50
WASHER (7A9)
90201-100F7-00
Unavailable
51
NUT, CASTLE
90171-10001-00
Unavailable
52
PIN, COTTER
91490-20025-00
Unavailable
