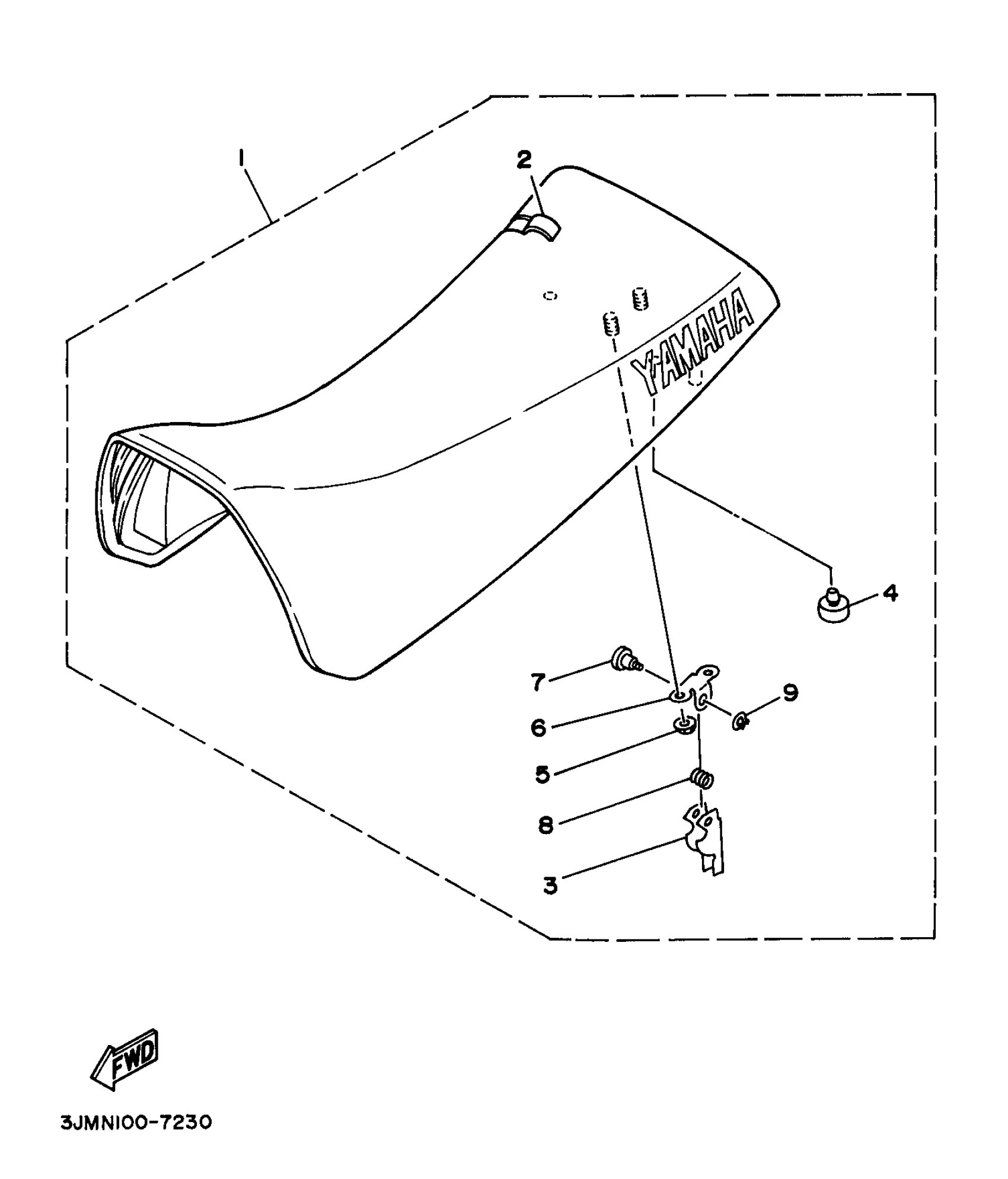

Yamaha YFS200K (BLASTER) 3JMS 1998 SEAT Diagram

#

Description

Price

1

SINGLE SEAT ASSEMBLY

2XJ-24710-C0-00

Unavailable

1

SINGLE SEAT ASSEMBLY

2XJ-24710-D0-00

Unavailable

2

. COVER, SEAT

2XJ-24731-C0-00

Unavailable

2

. COVER, SEAT

2XJ-24731-D0-00

Unavailable

3

LEVER, SEAT

29U-24776-00-00

Unavailable

4

STOPPER, MAIN STAND

371-27114-00-00

$7.99

5

NUT, FLANGE(4MV)

95707-06500-00

$1.23

6

BRACKET, SEAT LEVER

4K0-24775-00-00

Unavailable

7

PIN

4K0-24774-01-00

Unavailable

8

SPRING, TORSION(3FA)

90508-20779-00

$5.60

9

CIRCLIP (EU0)

99080-04600-00

Unavailable
