Description

Price

1

CRANKCASE 1

2XJ-15111-01-00

$397.99

2

CRANKCASE 2

2XJ-15121-00-00

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

SCREW, PAN

98507-06045-00

$3.14

5

SCREW, PAN

98507-06060-00

$7.99

6

PLUG, STRAIGHT SCREW

90340-12006-00

$8.49

7

WASHER, PLATE 3412175700

90201-12172-00

$3.93

8

HOLDER

37F-15128-00-00

Unavailable

9

SCREW, PAN

98507-08010-00

$8.49

10

SCREW, PAN

98517-06030-00

Unavailable

11

SCREW, PAN

98507-06075-00

$7.99

12

WASHER(6TA)

92907-06600-00

$2.72

13

GROMMET (1T6)

90480-01209-00

$5.60

14

PLUG(2XJ)

90338-09206-00

$9.49

15

. CONNECTOR, SUCTION PIPE

137-13115-01-00

Unavailable

16

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

17

WASHER, PLATE

90201-166L5-00

Unavailable

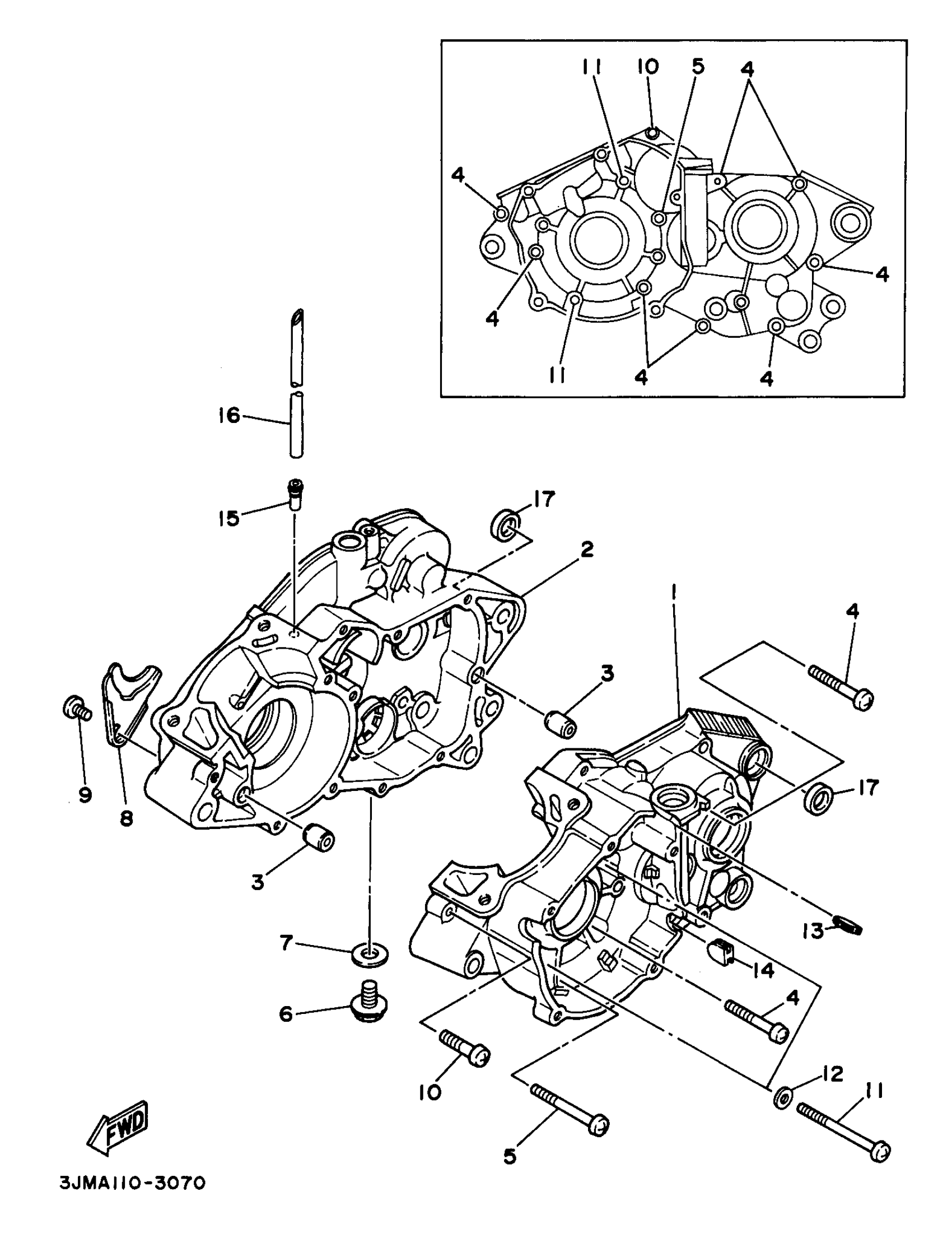

Yamaha YFS200K (BLASTER) 3JMS 1998 CRANKCASE Diagram

CRANKCASE 1

CRANKCASE 2

PIN, DOWEL

SCREW, PAN

SCREW, PAN

PLUG, STRAIGHT SCREW

WASHER, PLATE 3412175700

HOLDER

SCREW, PAN

SCREW, PAN

SCREW, PAN

WASHER(6TA)

GROMMET (1T6)

PLUG(2XJ)

. CONNECTOR, SUCTION PIPE

TUBE, FLEXIBLE VINYL(8AT)

WASHER, PLATE
