Description

Price

1

REAR ARM COMP.

5VM-22110-10-00

Unavailable

2

BEARING, CYLINDRICAL (23X)

93317-32231-00

$44.99

3

BUSH, SOLID (23X)

90380-22111-00

$19.99

4

OIL SEAL (23X)

93106-22019-00

$11.49

5

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

6

COVER, THRUST

2K6-22128-01-00

$31.99

7

WASHER, PLATE(2VM)

90201-247L2-00

$10.49

8

SHIM,REAR ARM

240-22127-00-00

$6.99

9

BUSH 1

2XJ-22123-00-00

Unavailable

10

BUSH 2

2XJ-22124-00-00

$30.99

11

PIPE

2GU-22155-00-00

$21.99

12

SEAL, GUARD

2GU-22151-10-00

$17.49

13

SHAFT, PIVOT

2JN-22141-00-00

Unavailable

14

WASHER, PLATE (3X3)

90201-15797-00

$9.49

15

NUT, SELF-LOCKING (1J7)

90185-14070-00

$13.49

16

SUPPORT, CHAIN

38W-22199-00-00

Unavailable

17

BOLT, FLANGE

95817-08040-00

Unavailable

18

COVER

2XJ-2219X-00-00

Unavailable

19

BOLT, FLANGE

95817-08012-00

Unavailable

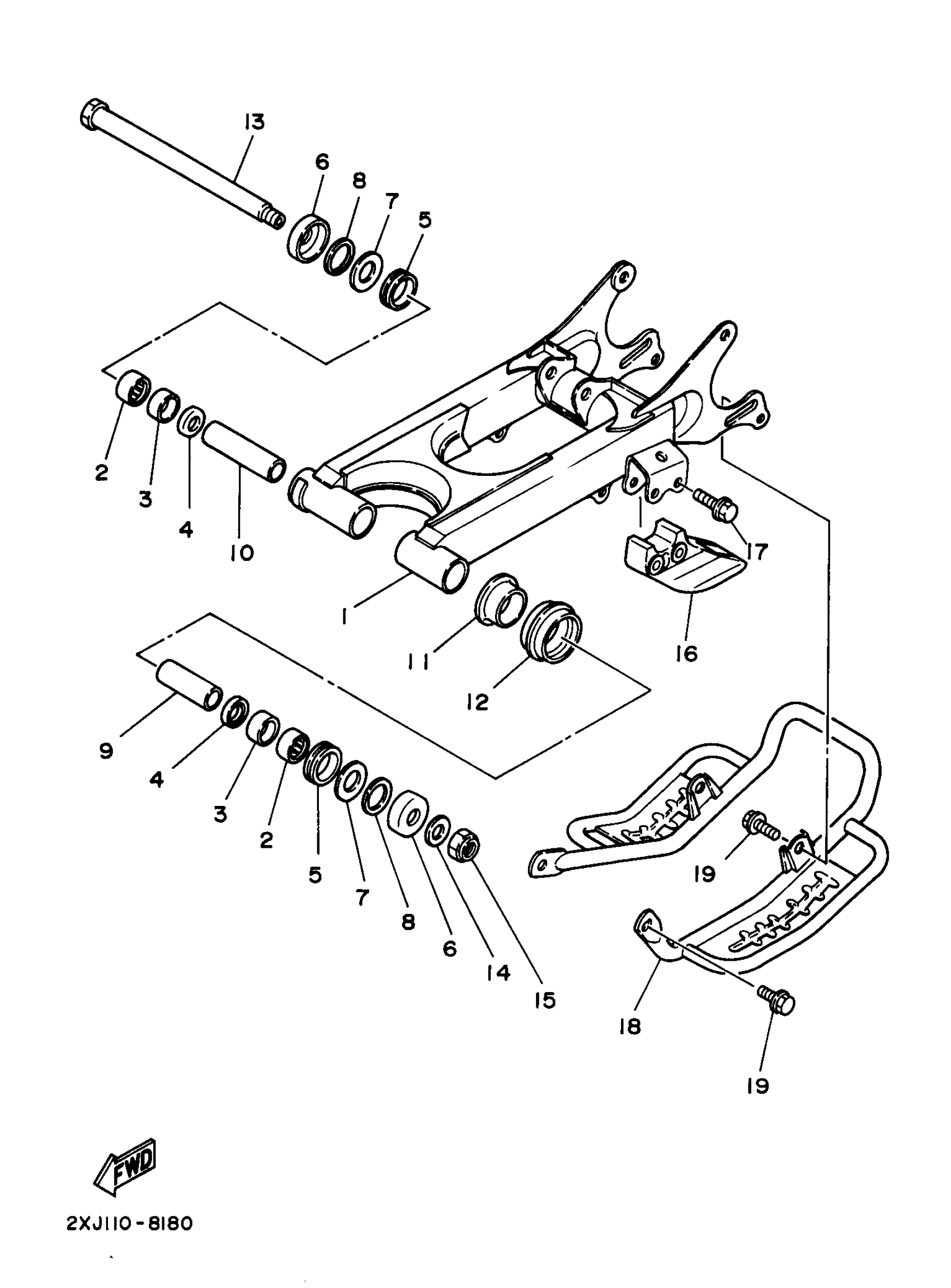

Yamaha YFS200J_MNH (BLASTER) 3JMN 1997 REAR ARM Diagram

REAR ARM COMP.

BEARING, CYLINDRICAL (23X)

BUSH, SOLID (23X)

OIL SEAL (23X)

OIL SEAL (35X41.5X8-483)

COVER, THRUST

WASHER, PLATE(2VM)

SHIM,REAR ARM

BUSH 1

BUSH 2

PIPE

SEAL, GUARD

SHAFT, PIVOT

WASHER, PLATE (3X3)

NUT, SELF-LOCKING (1J7)

SUPPORT, CHAIN

BOLT, FLANGE

COVER

BOLT, FLANGE
